Neato XV Signature Brushroll Replacement

Geschrieben von: Colton Gregory
  • Kommentare: 0
Neato XV Signature Brushroll Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

A guide to replace your Neato XV Signature's brushroll.

  1. NVIc5UNoW45aqvLN

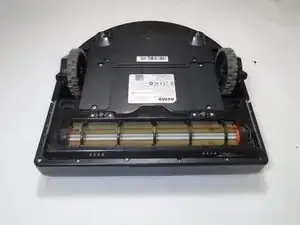

    • Place the Neato with the bottom side facing up.

  2. 1JFNPlnJJJMG5ITW

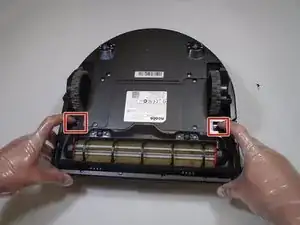

    • Push down on the two brush guard release buttons located underneath the wheels on the back panel.

  3. NsBHfOaqJ4x424Ln

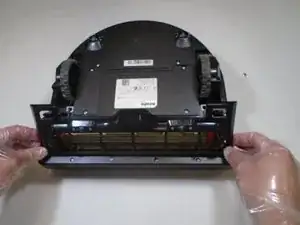

    • Remove the brush guard.

  4. 2siVbdStgXUtTNph

    • Grasp the brushroll by both sides, and remove the rubber belt attached to the brushroll by pushing it off the side.

  5. 21HqOJeCj4pZNIGi

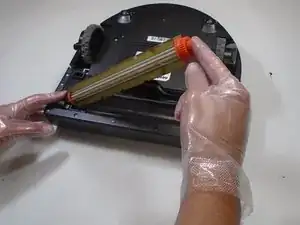

    • Remove the brushroll.

Abschluss

To reassemble your device, follow these instructions in reverse order.
