Neato XV Signature Motor Assembly Replacement

Geschrieben von: Emily Cardella
  • Kommentare: 0
Neato XV Signature Motor Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

In this guide, you will learn the necessary steps to replace the motor assembly of a Neato XV Signature vacuuming robot. This is a fairly simple fix, that only requires a few tools and should not take very long. Make sure the device is completely shut down before beginning.

  1. gGHNFeTgeGBKDCXl
    gGHNFeTgeGBKDCXl
    5RTYUKiV5MOjrb2q

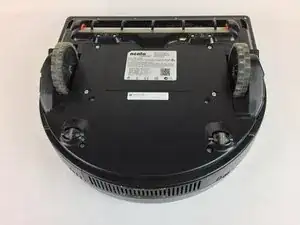

    • Flip your Neato XV Signature robot over so that so are looking at the underside of it.

  2. 4x1KidGR1baXlbTy

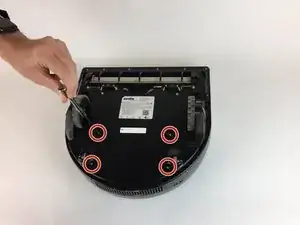

    • Using a Phillips head #2 screwdriver, unscrew the four 14 mm (1.4 cm) screws on the external panel that covers the motor assembly.

    • Be sure not to lose the screws.

  3. qGVqWmLWVMZovQWJ
    qGVqWmLWVMZovQWJ
    dreJHoaTOW5aklkx

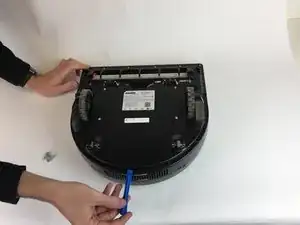

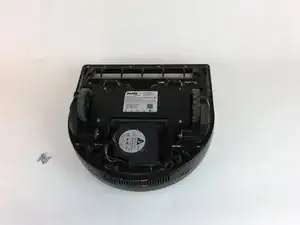

    • Use plastic spudger to gently pry off the external panel to expose the motor assembly.

  4. MrSRV1bQ3EfUmWAJ
    MrSRV1bQ3EfUmWAJ
    MmDqXYUtviPyZsXS

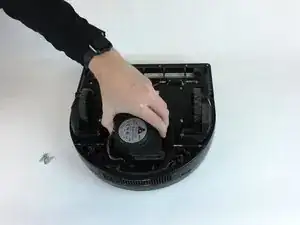

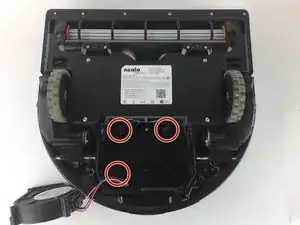

    • Gently lift the motor assembly straight up, out of place, being aware of the four mounting posts that hold the motor firmly in place.

  5. I3sv2FdFWDcTVdrG
    I3sv2FdFWDcTVdrG
    S3HDZcBoosHOLgQn
    MCfqaNfBvXCBA1Uw

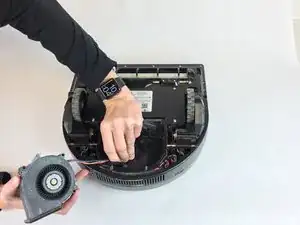

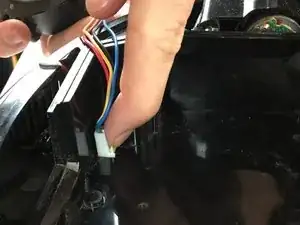

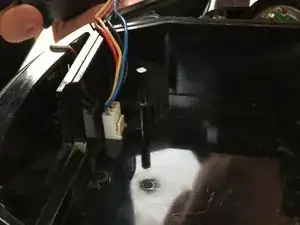

    • Press the tab and gently lift straight up to disconnect the motor wires.

  6. TECJbQWoVWmSHKk2
    TECJbQWoVWmSHKk2
    iCECM2u1o33NKuAr
    pQLj4WU2hOUcHDJD

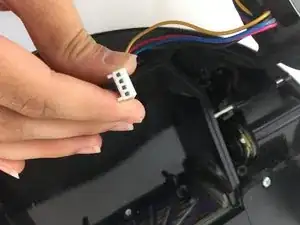

    • After disconnecting the wire clip, remove the motor assembly out of the compartment.

    • With the replacement motor, you can now begin reassembly.

Abschluss

To finish connecting the new motor assembly, follow these steps in reverse order. Be sure to replace the back external panel and four screws to tightly secure.
