Neato XV Signature Wheel Assembly Replacement

Geschrieben von: Colton Gregory
  • Kommentare: 0
Neato XV Signature Wheel Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

A guide to replace your Neato XV Signature's Wheel Assemblies.

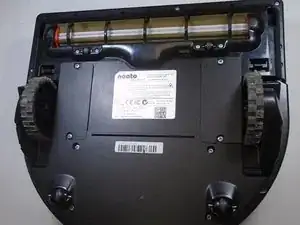

  1. VCHYvr5u2BfANS4B

    • Place the Neato with the bottom side facing up.

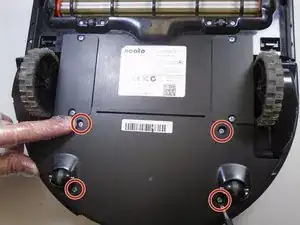

  2. d2h2Z1BCkKAQEoTN

    • Remove the four machine screws securing the main compartment plate using a Phillips #0 screwdriver.

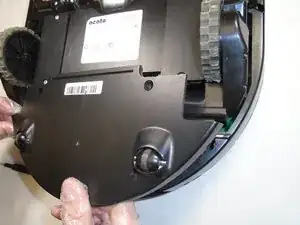

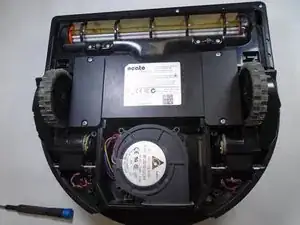

  3. gAlqATgkgLUWJGw6
    gAlqATgkgLUWJGw6
    YgTbHISaVhWArkvq

    • Remove the main compartment plate, exposing the wheel axis and fan.

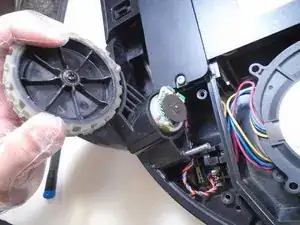

  4. qulXLBEWKWH2Vpsl

    • Lift up on the wheel axis to remove the axle bar from its clasp.

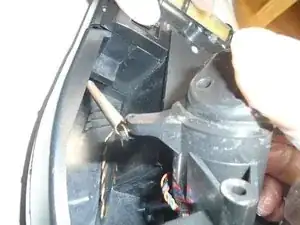

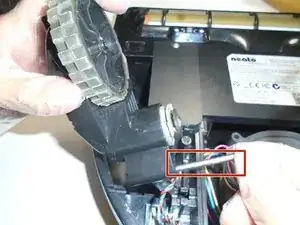

  5. 2bNjeQE412bGTAtU
    2bNjeQE412bGTAtU
    4QLVmcsSPPfenCFB

    • Remove the axle bar from the wheel mount, exposing the suspension spring.

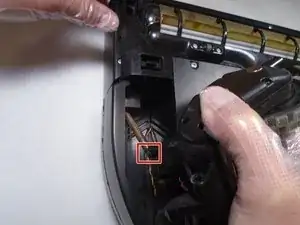

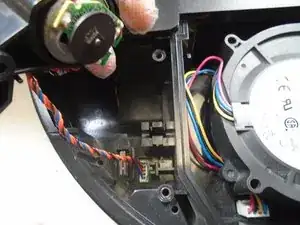

  6. rXyZ6XUHuVwQwDyJ
    rXyZ6XUHuVwQwDyJ
    3DRtOXRRHQnmwkBv

    • Unlatch the suspension spring from the wheel mount, exposing the wheel connector cable.

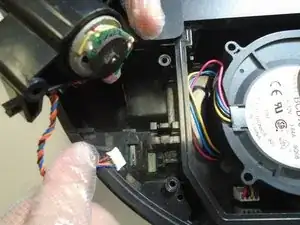

  7. IgMQlIdZ5ouSTJlt

    • Unplug the wheel connector cable.

    • Repeat steps 4-7 with the other wheel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
