Neato XV-21 Fan Replacement

Geschrieben von: Taylor Shedd

Kommentare: 2

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

3 Minuten

Einleitung

This guide will help you disassemble your Neato XV-21 and replace the fan.

Werkzeuge

Phillips #0 Screwdriver

Ersatzteile

Neato Cooling Fan

Schritt 1

Flip the Neato on its back so the bottom is exposed
Unscrew the seven screws.

This should be unnecessary. You should only need to remove the four screws from the battery doors. In this picture, the two lower-right screws are for one of the battery doors and the other is on the other side of the robot, under the demonstrator’s hands.

John - 11/04/20

It is EIGHT screws, not SEVEN.

There are FOUR screws for the battery compartment panels (TWO for each).

FOUR screws for the fan access panel.

The panels are independent. There is no need to open the battery compartments to access the fan, nor vice versa.

Fred - 10/05/20

Schritt 2

Lift the panels to reveal the batteries, brush and fan
There should be little to no resistance during this step, do not continue if the pieces do not separate easily

Schritt 3

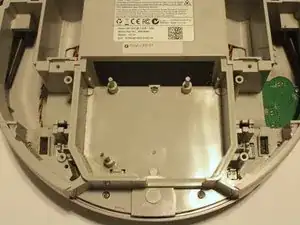

The Neato's core components are now exposed and ready to be cleaned and/or replaced.

Schritt 4

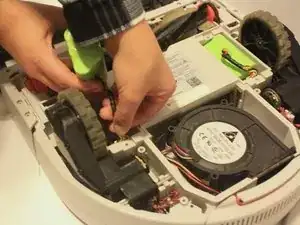

Pinch and pull the white connector to disconnect the battery from the device
Failure to complete this step could cause electric shock or later complications
Lift and remove the battery from the cavity
If replacing the battery, make sure to use proper disposal methods.

Schritt 5

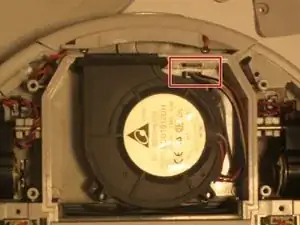

Pinch the white connectors to disconnect the fan from the robot, as previously done with the batteries

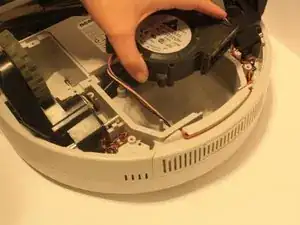

Once the wires are disconnected lift the fan from the cavity
