Neato XV-21 Wheels Replacement

Geschrieben von: zachary rodriguez
  • Kommentare: 3
Neato XV-21 Wheels Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

To replace the wheels you will want your device turned off and have a phillips screwdriver ready. This is a easy fix and should see the problem upon unscrewing the wheels.

  1. aSwRi63dli2xxmO1

    • Flip the Neato on its back so the bottom is exposed

    • Unscrew the seven screws.

    This should be unnecessary. You should only need to remove the four screws from the battery doors. In this picture, the two lower-right screws are for one of the battery doors and the other is on the other side of the robot, under the demonstrator’s hands.

    John -

    It is EIGHT screws, not SEVEN.

    There are FOUR screws for the battery compartment panels (TWO for each).

    FOUR screws for the fan access panel.

    The panels are independent. There is no need to open the battery compartments to access the fan, nor vice versa.

    Fred -

  2. rNWhmfUEGiL4XCiA

    • Lift the panels to reveal the batteries, brush and fan

    • There should be little to no resistance during this step, do not continue if the pieces do not separate easily

  3. vfEqiP2CSRvEjObU

    • The Neato's core components are now exposed and ready to be cleaned and/or replaced.

  4. FiBUj1oKHeERaBHs

    • Pinch and pull the white connector to disconnect the battery from the device

    • Failure to complete this step could cause electric shock or later complications

    • Lift and remove the battery from the cavity

    • If replacing the battery, make sure to use proper disposal methods.

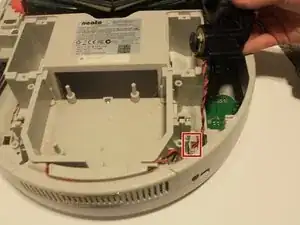

  5. gOB2WQU3mbxHssKM

    • Pinch and pull the white connector, indicated in the image, to disconnect the wheel from the robot. Repeat for both wheels

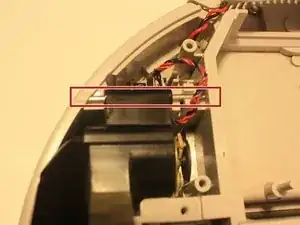

  6. odPF1kQRvMMARWlU

    • Slide out dowel rod connecting the wheel to the robot.

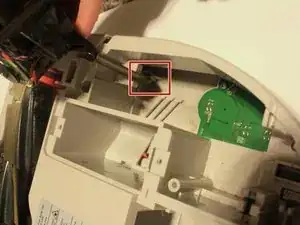

  7. onaFPFb1MnDtZxep
    onaFPFb1MnDtZxep

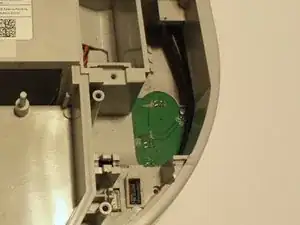

    LajjMEoTncXxBaq4

    • Lift the wheel so the spring is exposed

    • Pay particular attention to how the wheel is placed to replicate during reinsertion

    • Unhook the spring from robot

    • Lift the wheel from the cavity

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

zachary rodriguez

Mitglied seit: 25/09/17

107 Reputation

Ein Kommentar

Needs to Link to Parts List and a way to Order Parts.

Bill Price -
