Einleitung
This guide will walk you through the steps to disassemble your Nerf rifle and access the hammer rod. After you have replaced the rod you will simply follow the guide in reverse to get back to the the action!
Werkzeuge
-
-
Look at the rear of the rifle. Remove the two 10 mm Phillips head screws that hold the black cap to the rear of the rifle.
-
Gently remove the black cap.
-
-
-
Point the barrel of the device to the left, screw side up. Remove the two 8 mm Phillips head screws (the top two) holding the device slide together.
-
Keep the device in the same position, remove the three 10 mm Phillips head screws from the bottom of the device slide.
-
Once all screws are removed, carefully separate the two halves of the device slide and put them aside.
-
-
-
Keeping the barrel in the same position as step 3, remove the fourteen 10 mm Phillips head screws from the body of the device.
-
With the device in the same position, remove the 4 remaining 5 mm Phillips head screws from the body of the device.
-
-
-
Grip the cartridge insert, and pull the two halves of the device apart.
-
Remove the access gate and barrel cover.
-
-
-

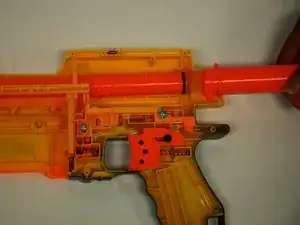

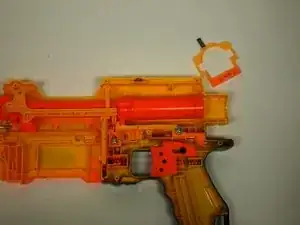

Slide the plunger lock back away from the device, then lift out towards yourself to remove.
-
-
-

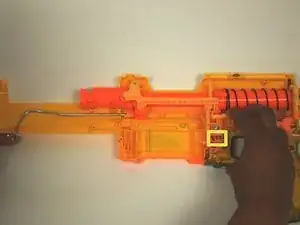

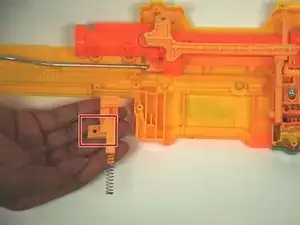

Pull the front chamber lock spring out of its seat.
-

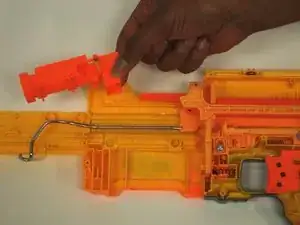

Pull the front chamber lock down and out of the rifle barrel.
-
-
-

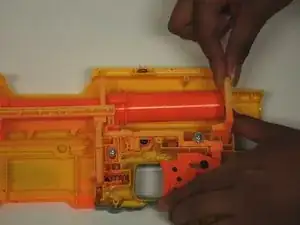

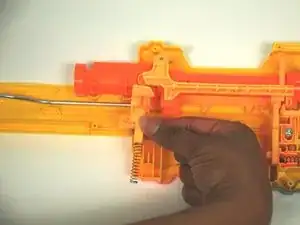

Hold down the spring that locks the chamber to the forward position, then slide the chamber to the rear of the rifle.
-

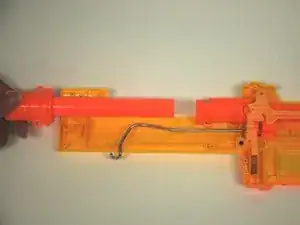

Remove front barrel guide.
-
-
-
Push the barrel forward and remove the square piece that holds the back of the barrel in place.
-
-
-
Hold the slide lock down and pull the bullet chamber assembly up and out of the rifle.
-
Remove the screw and replace the hammer rod.
-
To reassemble your device, follow these instructions in reverse order.
