Nerf N-Strike Deploy CS-6 Light-bulb Lens Replacement

Geschrieben von: Alec Hernandez
  • Kommentare: 0
Nerf N-Strike Deploy CS-6 Light-bulb Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

35 Minuten

Einleitung

When users prefer to use the flashlight from the device, can be the complication that the lens is damaged. Obscuring the lens can alter the lights focus on other objects. In this guide, we will show you how to properly disassemble your device to access the lens. Upon doing so, you will then be able to dispose the damaged lens and put in the replacement lens.

  1. GkPXGNsHFEhOwNJP

    • Proceed to take out the hidden screws when the device is collapsed.

    • Hidden screws measure out to 1.7 cm

  2. YgNNAcQdXOaQAQaB
    YgNNAcQdXOaQAQaB
    DpOdNCcfj3wclaVl

    • Once the hidden screws are out, extend your device in stealth mode.

    • Once the device is extended out, proceed to take out the necessary screws as shown.

    • For the pump, the screw's length extends out to 1.9 cm. The majority size of the screws extend out to 1.3 cm.

  3. 5QmSCbiTpXunC2kA

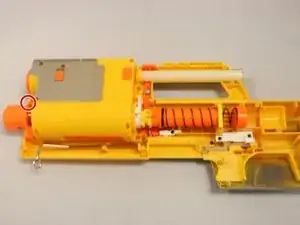

    • Once all the necessary screws are taken off, the interior of your device should be visible.

    • Unscrew the orange barrel located in front of your device.

  4. DZWsMKoXyaJIOyvt

    • Now that the cover is off and the screws are out, pry off the barrel of the device.

  5. xN3Z1AWpfP1YQ4YV

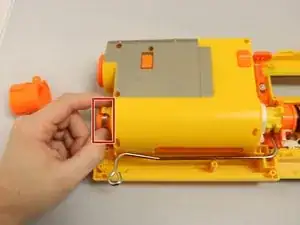

    • Once the orange barrel of the device has been pried off, proceed to take the metal clip off from where it is currently located.

  6. wRYSwkH64Xx6HoKK
    wRYSwkH64Xx6HoKK
    ubeLYTDWkHZBqYvE

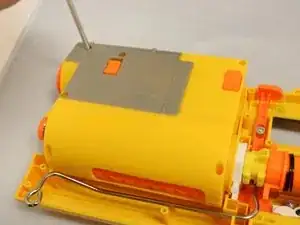

    • As shown, use your Phillips #0 head screwdriver to unscrew the highlighted areas

  7. BvXpSESlsKPkEk3M

    • Once all the screws have been removed, the cover for the light-bulb is able to come off.

    • Gently remove the cover to maintain the safety of your device.

  8. fkWqLkQZBvvd5cuZ

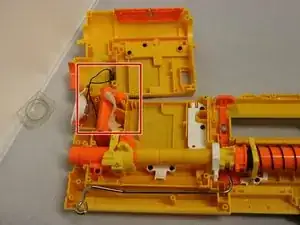

    • When taking off the cover piece, gently place it above the device as shown.

    • Regarding the ligh-bulb cords, it should have a strip of tape to keep it down.

  9. 1mPJFKm64YsbgSlt

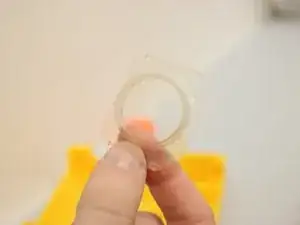

    • Near the light-bulb is the lens. Gently pry it off.

    • Correctly dispose your damaged lens.

  10. 1iFdD6NAEsIAtkJo

    • Once you acquire your new lens, gently place it in front of the bulb.

    • As shown, the lens should be placed where the edges line up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
