Nerf N-Strike Deploy CS-6 Spring Mechanism Replacement

Geschrieben von: Brenda
  • Kommentare: 0
Nerf N-Strike Deploy CS-6 Spring Mechanism Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

35 Minuten

Einleitung

The internal spring mechanism is what helps fire the darts from the device. A damaged internal spring can cause difficulty in firing and ultimately decrease the performance. This guide will show you step-by-step on how to pull apart the cover piece of the device to access the internal spring. Upon doing so, you will be shown how to properly place in a new spring to effectively increase the device's performance.

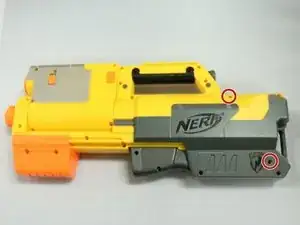

  1. ZumaMBHeeIqN3RQF

    • Proceed to take out hidden screws as shown.

    • Device must be collapsed in order to take out the hidden screws. Hidden screws measure out to 1.7 cm.

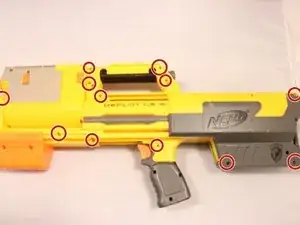

  2. Spx3WMCoBwoJNEqJ

    • Proceed to take out all the necessary screws.

    • On the top left corner of the orange pump, there is another screw that will need to be taken out. The majority of the screws measure out to 1.3 cm.

  3. IUFyiHB5IxPDtSPa
    IUFyiHB5IxPDtSPa

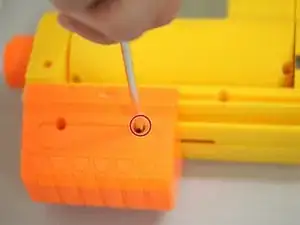

    lSHwfCTeem436Kec

    • Removal of the pump is needed in order to get to the spring mechanism.

    • Locate the screws on the orange pump and proceed to take them out.

  4. ZcsJmfPtkUGJhQSL

    • Once screws are removed from the pump part you can then remove the pump parts.

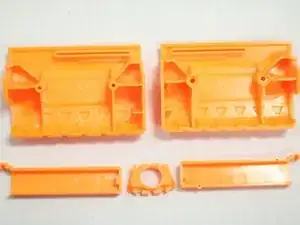

  5. Faaw3C4dmSg4AtMR

    • Once taken apart, the orange pump should be neatly placed on a safe surface.

  6. EVD3KQqEXkBfKvKd

    • Top extension part can now be taken off.

    • Once pulled apart, this is how the device should look.

    • Highlighted parts with will fit together into the other highlighted parts.

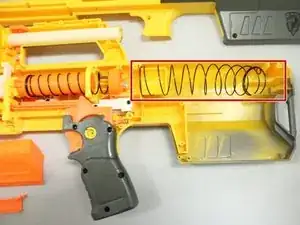

  7. mSIHmxPiHUkujBkV

    • Locate your damage spring mechanism.

    • Once located, you may now pull it away from the device.

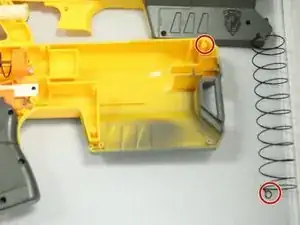

  8. yNBXyKRcVelUkfd3

    • Spring has a small hook on the right side & must be placed on yellow holder.

    • Spring hook can be seen through same highlight whereas the yellow holder is located.

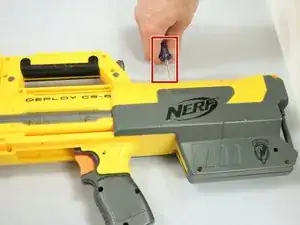

  9. rTHJxBVCG11XkL1W

    • Place device cover back on.

    • When trying to close the cover back on top, push spring from the left towards the right to adjust cover in place.

    • You may use a screwdriver to pull the spring back as it is tad unpredictable in movement. May take a few times.

    • The screwdrive, as shown, is pushed forward to be put back into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
