Nerf N-Strike Elite Alpha Trooper CS-12 Plunger Replacement

Geschrieben von: Elizabeth Coffey
  • Kommentare: 1
Nerf N-Strike Elite Alpha Trooper CS-12 Plunger Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 30 Minuten

Einleitung

A broken plunger may prevent your rifle from firing. This guide shows you how to replace the plunger.

  1. BQmiWF2U5NQF5BOl

    • There are many screws of varying lengths involved in the disassembling of this device. It is important to keep track which screws correspond to which holes. This will help ensure proper reassembly.

    • Be sure that the rifle is discharged and unloaded before starting disassembly.

  2. rGRnOlxuuAFEBAis
    rGRnOlxuuAFEBAis
    hqjTVAyCxT2ounYi
    LXsPZoBZdKSx34Xg

    • Looking from the rear of the rifle, remove the two 10 mm phillips screws holding the orange cap to the butt of the rifle.

    • Pull off the orange cap.

  3. D5CcXmajeCIWjv4P
    D5CcXmajeCIWjv4P
    f6OAL6jBTeGhMx2F
    ET11Pgb1TTKttKfp

    • With the rifle barrel pointing left, remove the two 8mm phillips screws holding the slide mechanism together.

    • Remove the three 10 mm phillips screws from the bottom of the slide mechanism.

    • Separate and remove the two halves of the slide mechanism.

    • Make sure to keep track of which screws correspond to which holes.

  4. PTdQdsMqL5OoMMPG
    PTdQdsMqL5OoMMPG
    UaS5VIhAQaU4LhEM

    • Again with the rifle barrel pointing left, remove the fourteen 10 mm phillips screws from the main body of the rifle.

    • Remove the two 5 mm phillips screws from the main body.

    • Remove the two 8 mm phillips screws from the main body.

    • Screws are varying lengths, make sure to keep track of which screws correspond to which holes.

    The screw to the left of the orange Nerf logo is actually 8mm, not 10 mm indicated in the key.

    Nikolas Hill -

  5. v1vEv4WPHC6JiFqD
    v1vEv4WPHC6JiFqD
    OghghqAiGEXSOJYg
    FwAgGkFcWUSHLIEJ

    • Pull the two halves of the rifle apart.

    • Be careful of the spring at the rear end of the rifle. It may come flying out.

    • If you have difficulty pulling the two halves apart, spudger to gently pry the edges of the body apart.

    • Also be careful of small parts when opening the gun, they may be easy to lose.

    • Remove the access gate and barrel cover.

  6. Xg6Rd3bgjmkWGJar

    • You should now be able to pull the main firing spring from the rear of the rifle.

  7. Yk2eFVAMoQR31vFp

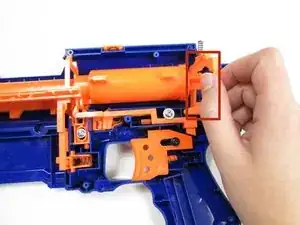

    • Slide the plunger lock rearwards and towards yourself to lift it out.

  8. tObUeQ1YDAlRljlx

    • Pull the plunger towards the rear of the rifle to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
