Nerf N-Strike Elite Hail-Fire Motor Replacement

Geschrieben von: Chris
  • Kommentare: 6
Nerf N-Strike Elite Hail-Fire Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

Keine Schätzung

Einleitung

Keep your aim sharp by replacing the motor.

  1. UwU3B6SuBenHBOnU
    UwU3B6SuBenHBOnU
    PbVuNSSem5NklwO4
    qYYVnhaTROKD4Vhh

    • Before disassembling your Nerf Hail-Fire, be sure to remove the batteries.

    • Remove the two 9.0 mm Phillips screws securing the battery compartment.

    • Slide the battery compartment out.

  2. bvTNo3JklxtXLIuV

    • Remove the five 9.0 mm Phillips screws securing the trigger.

  3. VxMB5HHviFfcuGjj
    VxMB5HHviFfcuGjj
    CiiM6ZBwNws1ZpXY

    • Remove the single 11.0 mm Phillips screw securing the magazine cartridge chambers.

    • Pull the entire chamber upwards to separate it from the rest of the Nerf Gun.

  4. 1MqDDotCJjTFNQhN
    1MqDDotCJjTFNQhN
    RDLqsBGyApVmRsnf
    YiqeuNWEeoYxljKq

    • Remove both halves of the ring by tugging on it upwards until the lock gets freed.

    • This requires quite a bit of force and if you are not careful, you may break the plastic lock.

  5. dRL1yeTVSbU6F2lV

    • Remove the four 9.0 mm Phillips screws from the newly revealed cylinder.

  6. P1fl6YiMt5tiTauh

    • Remove the three 9.0 mm Phillips screws holding the top latch of the Nerf Gun together.

  7. aqB51xsxTwTMZafB

    • Remove the three 9.0 mm Phillips screws holding together the firing chamber.

    • Remove the single 7.0 mm Phillips screw below the barrel.

    • Remove the two 14.0 mm Philips screws using a screwdriver with a length of approximately 4.0 inches and a diameter of approximately 0.2 cm.

  8. iqEHJUmORL2wlKvX

    • Remove the single 14.0 mm Phillips screw holding together the handle and the Nerf Gun.

  9. RWZNDbeAAknyqKMR
    RWZNDbeAAknyqKMR
    i6vMALlwy1o6m2wk

    • Remove the two 9.0 mm Phillips screws holding together the handle.

    • Remove the plastic cover of the handle.

  10. TCURSiSCVNZVbGdq
    TCURSiSCVNZVbGdq
    4gIEGAZP6SkDm5lI

    • Insert one plastic opening tool inside one side of the orange part depicted in the picture.

    • Insert a second plastic opening tool to the other side of the orange part and gradually pull the piece out, freeing it from the handle.

  11. cgjkZK4I5luyetIo
    cgjkZK4I5luyetIo
    cXLTpFe2QhmeTrTC
    lJGAYDfsZ6GOwVDY

    • Pull one end of the handle away from the orange latch.

    • Repeat the procedure on the other side to completely remove the handle from the rest of the Nerf Gun.

  12. NMVmHRVC6vhRoD6Z
    NMVmHRVC6vhRoD6Z
    EycP1apPGwnDdX1Q
    DylRsWf4DjGmDNMG

    • Lift the entire left shell slowly. The process should be easy and if there is any resistance, there is something wrong. You may have forgotten a screw.

    • Completely remove the left shell from the rest of the Nerf Gun.

  13. 5EMgb4VFId6gJOgG
    5EMgb4VFId6gJOgG
    yhQ4O6ZlQZWCa2g1
    CcFclaMSyFJvyOmX

    • Remove the cartridge support.

  14. LqCOwHwFV4UMGy1b
    LqCOwHwFV4UMGy1b
    WL3OXO6pWHGo2cEP
    rxtpTIyBGif3QlCM

    • Remove the handle crank.

  15. IEDSj5P6NPgOCXLL
    IEDSj5P6NPgOCXLL
    ZBdZG3DuuRXvIKd3

    • Remove the clear plastic barrel cover.

  16. CtcunV65cLuG4iyJ
    CtcunV65cLuG4iyJ
    GkRmSRmAwKgEFNam

    • Remove the firing pin.

    Not a pin, rather a plastic arm called the pusher

    Tribit Fan Opex ツ -

  17. lSAH24h2ECblKVW3
    lSAH24h2ECblKVW3
    mChbtSsm1IAhDQ6M
    Umdi1cvNVPTNHQQA

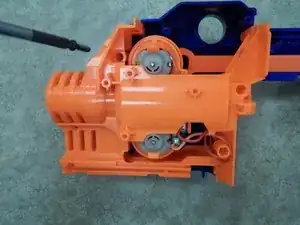

    • With your gun disassembled, locate the motor around the front portion of your gun as shown in Figure 1. Remove the two 9.0 mm Phillips screws securing the top shell of the motor casing.

  18. HqEBjUSXvsjWlYGw
    HqEBjUSXvsjWlYGw
    HSJEOCiieBEOKCds

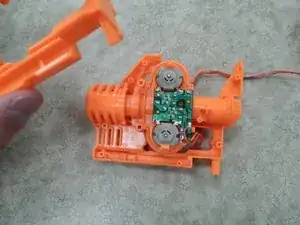

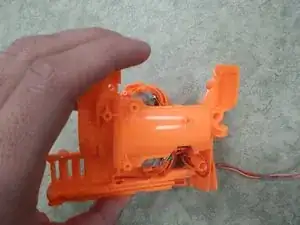

    • Remove the top shell of the motor casing. This should reveal the inner workings of the motor.

  19. GgfdPTAqFq1ANOLT
    GgfdPTAqFq1ANOLT
    ZXx5m3MWaVI5pR5S
    LZNInQH6XGTA6fhH

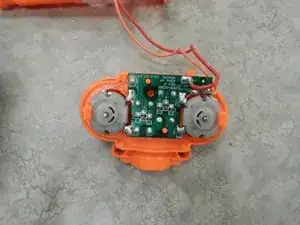

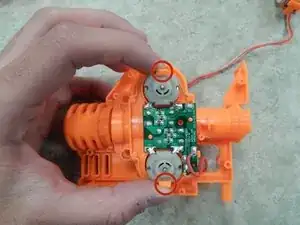

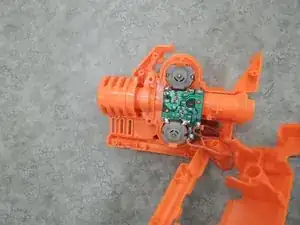

    • With the shell now removed, locate the motor and controlling circuit board. With your index finger and thumb, squeeze the holders shown in Figure 2 and pull upwards to release the motor module from the rest of the motor's casing. Your motor should be detached from the casing, as shown in Figure 3.

  20. 1R3XiAqlOqcVcBqM

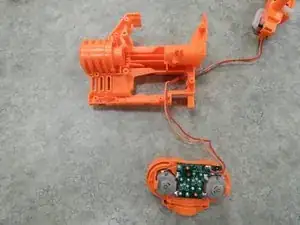

    • Remove the wiring from the motor by disconnecting the wires from the circuit board.

    So do you mean to cut the wires from their soldering place? B/c if that’s the case how do you fix/replace the motor? Thanks tho, this is great. For some reason one that I haven’t used really at all just stopped working after being in storage for a few years.

    theflash3 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
