Use this guide to remove the circuit board that activates the automatic firing mechanism.

  1. UwU3B6SuBenHBOnU
    UwU3B6SuBenHBOnU
    PbVuNSSem5NklwO4
    qYYVnhaTROKD4Vhh
    • Before disassembling your Nerf Hail-Fire, be sure to remove the batteries.

    • Remove the two 9.0 mm Phillips screws securing the battery compartment.

    • Slide the battery compartment out.

  2. bvTNo3JklxtXLIuV
    • Remove the five 9.0 mm Phillips screws securing the trigger.

  3. VxMB5HHviFfcuGjj
    VxMB5HHviFfcuGjj
    CiiM6ZBwNws1ZpXY
    • Remove the single 11.0 mm Phillips screw securing the magazine cartridge chambers.

    • Pull the entire chamber upwards to separate it from the rest of the Nerf Gun.

  4. 1MqDDotCJjTFNQhN
    1MqDDotCJjTFNQhN
    RDLqsBGyApVmRsnf
    YiqeuNWEeoYxljKq
    • Remove both halves of the ring by tugging on it upwards until the lock gets freed.

    • This requires quite a bit of force and if you are not careful, you may break the plastic lock.

  5. dRL1yeTVSbU6F2lV
    • Remove the four 9.0 mm Phillips screws from the newly revealed cylinder.

  6. P1fl6YiMt5tiTauh
    • Remove the three 9.0 mm Phillips screws holding the top latch of the Nerf Gun together.

  7. aqB51xsxTwTMZafB
    • Remove the three 9.0 mm Phillips screws holding together the firing chamber.

    • Remove the single 7.0 mm Phillips screw below the barrel.

    • Remove the two 14.0 mm Philips screws using a screwdriver with a length of approximately 4.0 inches and a diameter of approximately 0.2 cm.

  8. iqEHJUmORL2wlKvX
    • Remove the single 14.0 mm Phillips screw holding together the handle and the Nerf Gun.

  9. RWZNDbeAAknyqKMR
    RWZNDbeAAknyqKMR
    i6vMALlwy1o6m2wk
    • Remove the two 9.0 mm Phillips screws holding together the handle.

    • Remove the plastic cover of the handle.

  10. TCURSiSCVNZVbGdq
    TCURSiSCVNZVbGdq
    4gIEGAZP6SkDm5lI
    • Insert one plastic opening tool inside one side of the orange part depicted in the picture.

    • Insert a second plastic opening tool to the other side of the orange part and gradually pull the piece out, freeing it from the handle.

  11. cgjkZK4I5luyetIo
    cgjkZK4I5luyetIo
    cXLTpFe2QhmeTrTC
    lJGAYDfsZ6GOwVDY
    • Pull one end of the handle away from the orange latch.

    • Repeat the procedure on the other side to completely remove the handle from the rest of the Nerf Gun.

  12. NMVmHRVC6vhRoD6Z
    NMVmHRVC6vhRoD6Z
    EycP1apPGwnDdX1Q
    DylRsWf4DjGmDNMG
    • Lift the entire left shell slowly. The process should be easy and if there is any resistance, there is something wrong. You may have forgotten a screw.

    • Completely remove the left shell from the rest of the Nerf Gun.

  13. 5EMgb4VFId6gJOgG
    5EMgb4VFId6gJOgG
    yhQ4O6ZlQZWCa2g1
    CcFclaMSyFJvyOmX
    • Remove the cartridge support.

  14. LqCOwHwFV4UMGy1b
    LqCOwHwFV4UMGy1b
    WL3OXO6pWHGo2cEP
    rxtpTIyBGif3QlCM
    • Remove the handle crank.

  15. IEDSj5P6NPgOCXLL
    IEDSj5P6NPgOCXLL
    ZBdZG3DuuRXvIKd3
    • Remove the clear plastic barrel cover.

  16. CtcunV65cLuG4iyJ
    CtcunV65cLuG4iyJ
    GkRmSRmAwKgEFNam
    • Remove the firing pin.

    Not a pin, rather a plastic arm called the pusher

    Tribit Fan Opex ツ -

  17. 4IwHMwJY5eRJpZTR
    4IwHMwJY5eRJpZTR
    TLmBFgOHnTdCAPZI
    • Lift the trigger mechanism out of the shell.

    • You cannot fully remove the trigger mechanism just yet. However taking it out of the shell helps in later steps.

  18. OBhgNMNwMU3axCji
    OBhgNMNwMU3axCji
    OIGqRZcRhFKVa4Mt
    b4dmDYX5hgwSDOIm
    • Remove the two 9.0 mm Phillips screws.

  19. exmaO21iAR56iYeO
    exmaO21iAR56iYeO
    vewEsR1fFydvtIYk
    kQWHZULCDFQlELOg
    • To remove the motor and trigger mechanism you have to detach these two wires which are glued to the shell.

    • Hold close to the wire and pull upward slowly.

    • If you pull too quickly you can potentially damage the wire.

  20. utUfHe3IFgtajxOF
    utUfHe3IFgtajxOF
    oSEJTpRATfh5Etms
    • Once all the pieces are removed the right shell should be fully accessible.

  21. tTWwKioJUBdqIMyp
    • Once you have the handle disassembled locate the triggering circuit board.

  22. IjvsmtCL1oOABMxy
    IjvsmtCL1oOABMxy
    WOUlVXbBUuGF5CFr
    n1CKwYOYh5HxYTxV

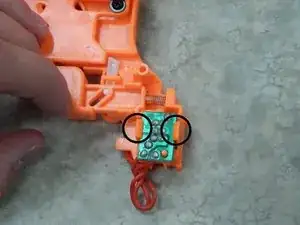

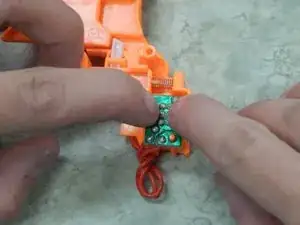

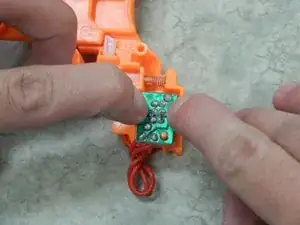

    • Find the two plastic clasps and position your hands so you can pry them open with your fingers. We recommend that you try and pry them open without removing the piece so you can feel how fragile the plastic is.

  23. d2i5FfMSrC25fwda
    d2i5FfMSrC25fwda
    csUXPWSOrxSvraxF

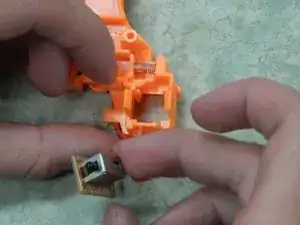

    • The circuit board has sharp metal solder points on it. If your finger slips you could injure yourself. Consider using gloves.

    • To remove use two fingers to pry the plastic edges apart and with your thumbs remove the circuit board. Having a friend help with this step could be beneficial.

Abschluss

To reassemble your device, follow these instructions in reverse order.
