Nerf N-Strike Elite Retaliator Barrel Replacement

Geschrieben von: ericharman
  • Kommentare: 1
Nerf N-Strike Elite Retaliator Barrel Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

A damaged or obstructed barrel can greatly hinder your blaster’s performance. Follow the procedure to clean or replace the barrel.

Modifying your blaster is not advised and may void the manufacturer’s warranty in certain states.

This blaster is equipped with a rifled barrel for maximum performance.

  1. EQBLnY2ykcgyyPsr

    • While holding the blaster, rotate the barrel assembly in the counter-clockwise direction and pull away from the blaster.

  2. 2C5wfNO2FXlwnUP4

    • Slide the hand grip assembly toward the end of the barrel and off the barrel assembly.

    • This may require more force than anticipated.

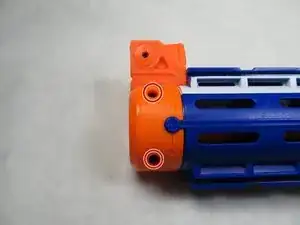

  3. FvAHErRQhUYskKEf

    • Disassemble the orange barrel cap by removing two 8mm Phillips screws.

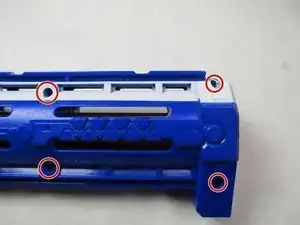

  4. smAcQVATUyouQ3sU

    • Disassemble the barrel assembly by removing four 8mm Phillips screws from the blue barrel housing.

    • There are springs that may become displaced when the barrel housing is removed. Proceed with caution.

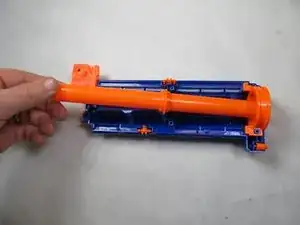

  5. BnbI2xgZco5WDCWS

    • Remove the orange barrel from the assembly.

    But where do I get the replacement barrel

    BiscuitGod 24 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
