Nerf N-Strike Elite Retaliator Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

A fatigued spring can be detrimental to your blaster’s performance. This guide shows how to disassemble the blaster to replace this component. There many small components such as screws and springs that will be removed in this procedure. Be sure to record their locations for easy reassembly.

  1. UFHTBEJMcMayolWS

    • While holding the blaster, rotate the barrel assembly in the counter-clockwise direction and pull away from the blaster.

  2. tQvZKAeMqbwrNYED

    • Remove the stock of the blaster by pushing the orange tabs downward while pulling the stock away from the blaster.

  3. gGHnKJgDuAJpFEeE

    • Remove the magazine from the blaster by forcing the sliding mechanism backwards, pushing the orange tabs downward, and pulling the magazine away.

    What about a drum mag how do you remove that

    Alex Leadbeater -

  4. 4fBXoap1pCGJCIrN
    4fBXoap1pCGJCIrN
    vT2xIqwph1HmElIV

    • Remove the stock attachment point by removing the two 8mm Phillips head screws.

  5. oDKBDXAaEJsBgQEF
    oDKBDXAaEJsBgQEF
    AGV6MPRXBhAMaFh4

    • Remove the eleven 8mm and two 10mm Phillips head screws from the left side of the blaster, and carefully remove the outer casing.

    • Two of the screws must be removed with the sliding mechanism in the forward position. Another two must be removed with the sliding mechanism in the back position.

    • There are several springs that may become displaced during this procedure. Proceed with the utmost caution.

    Itd be nice if we got a pic comparing the internals to an old yellow nerf recon (if you have one). I wonder how much changes between generations.

    sigoshi -

    Removed every screw and gun does not separate. not showing the seperation of the gun makes this tutorial completely useless.

    Jeff Glover -

    You have to remove the thing you use to ready it

    Daniel MacDonald -

    It would be nice if you could color-code where to put the 16mm, 10mm and 8mm screws. That way, you don’t wind up damaging the screw post or stripping a screw by trying to insert a 10mm screw into a post meant for an 8mm one.

    SirMikay -

    it's very helpful that the troubleshooting for slider won't move backwards goes to "Another two must be removed with the sliding mechanism in the back position." How, just how do you do that if it's jammed

    Adrian Tennies -

    please help if you can

    Adrian Tennies -

    definitely not angry at the troubleshooting page

    Adrian Tennies -

  6. IF6KEZFtwfMptmw5
    IF6KEZFtwfMptmw5
    TEJmcEIPxPUfGsPY

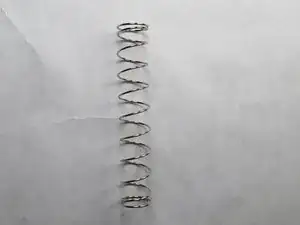

    • The spring may be compressed. If so, carefully release spring pressure before proceeding.

    • While holding down the white Plunger tube, pull the spring backwards to remove it from the blaster.

Abschluss

To reassemble your device, follow these instructions in reverse order.
