This guide will show you how to replace the springs in a Nerf N-Strike Elite Rough Cut 2x4 gun. Nerf guns use springs to power their guns. However, over time, these springs lose power and thus the gun cannot shoot as far or as powerfully. When this happens, the gun can simply not be effective for Nerf fights. However instead of buying a new gun and throwing away the old one you can simply add new springs and get the same if not better performance.

  1. B5rOn1QLB6t1OJRv
    B5rOn1QLB6t1OJRv
    AL5JYkhvHBqj5p12

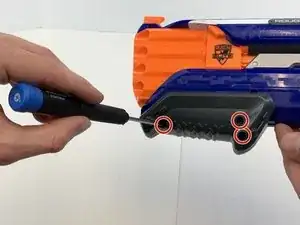

    • Remove three screws with a Phillips #1 screwdriver.

    • Remove the pump grip.

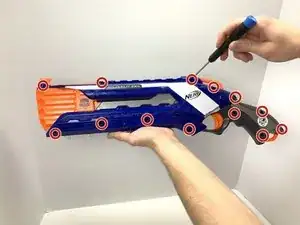

  2. jQeY32vutdZWm2MY
    • Remove thirteen highlighted screws using a Phillips #1 screwdriver.

    • The top rail has shorter screws than the rest.

    • Some of these are captive screws and cannot be removed.

  3. pSRAbbJwUMl13w3g
    pSRAbbJwUMl13w3g
    YdbfyqRcTvryQGX3
    T1K6U3LUOJgaeIXs

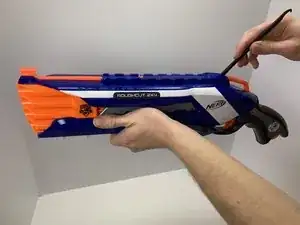

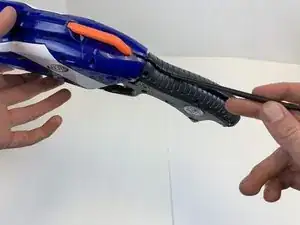

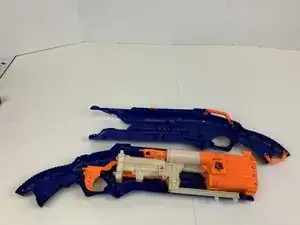

    • Remove the backside by sliding the plastic spudger across the seam.

    • There are loose parts that can fall out. Take these off and put them aside.

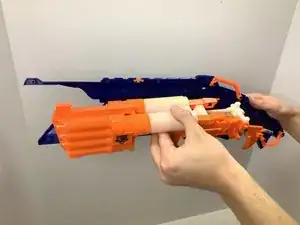

  4. coJrot3pP2NTMNZj
    coJrot3pP2NTMNZj
    VOWk4FjnbXtXKFsU
    4pILKPP1hBTUgwI2

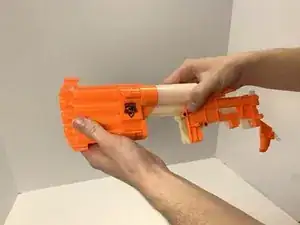

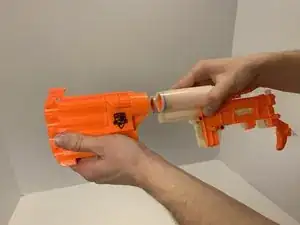

    • Separate the trigger mechanism from the barrel.

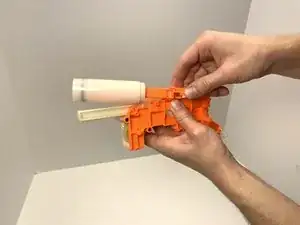

  5. XmdoDqEnEb1ZCykh
    XmdoDqEnEb1ZCykh
    kvf2LgYDd3npqlRZ
    6EZ4vB2NFl4Iqy2D

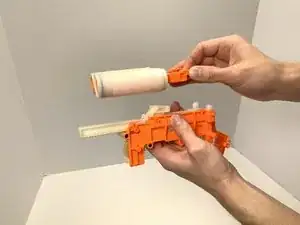

    • Remove the plunger springs from the mechanism by pulling one of the springs back then bending it off the connection.

    • These are tricky to remove, so be careful when pulling them off.

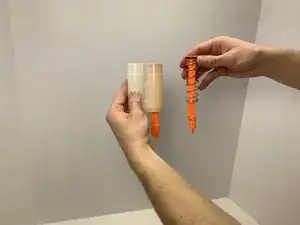

  6. IMZYIq2MMjpoNMLm
    IMZYIq2MMjpoNMLm
    V2QTYuMQJycp2jNs

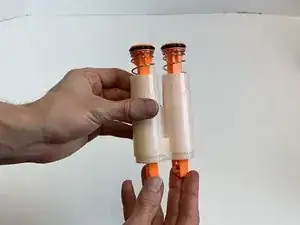

    • Now pull the springs out and add new ones.

    • There are a few pieces with springs that can misalign in reassembly. Keep in mind where they are.

Abschluss

To reassemble your device, follow these instructions in reverse order.
