Nerf N-Strike Elite Strongarm Cocking Mechanisim Replacement

Geschrieben von: Chelsea Ebey
  • Kommentare: 26
Nerf N-Strike Elite Strongarm Cocking Mechanisim Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 - 30 Minuten

Einleitung

This guide is going to show you how to take apart the blaster to reach the spring that is located in cocking mechanism of the Nerf.

  1. 1nV3iNj32v3HAAsT
    1nV3iNj32v3HAAsT
    4EVeJKTrb2pUpskB

    • Lay the Nerf Strongarm on its side, left side facing up.

  2. ETCSiinIHsLwGAvb
    ETCSiinIHsLwGAvb
    3UUVFghwAQWi2ppX

    • Locate the 12 Philips head screws and remove them: Head Diameter= 4.3mm, Thread Pitch= 1mm, Screw Length= 8mm

  3. UvmCnTuuABSVeqfG

    • Before removing the cover, make sure to first remove the cover for the cocking mechanism. The top half is freely removable.

    • The other half of the cocking mechanism is connected with a spring which may slide off the blaster. Be advised this is normal but worth watching to avoid damaging the spring.

  4. lxDZsWJhPGxcbwmY

    • At this time, remove the blaster cover to reveal its internals.

    • If the blaster is resting on its side, the barrel may shift slightly as it is leaning on itself (seen in the image). This is normal but should be handled with care to keep the blaster together.

  5. lkhE1MvBnB3NQTAo

    • Once the screws have been removed, lift the top half of the gun off.

    • Notice, the gray colored piece must be removed first in order for the larger half to be removed.

    • Take care and try not to lose any smaller pieces as you open it up.

    • Locking tab for attachments.

    what is a locking tab? and where do i see it? sorry my english is bad

    JoseRafael -

    its the front sight post

    Seth Mains -

  6. d1VZoNTso611LaYA
    d1VZoNTso611LaYA
    a2LTxgLlNrVftAND

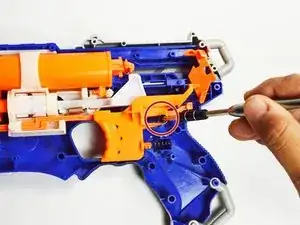

    • Remove the screw on the inside of the gun.

    • Screw specifications: Philips head, Head Diameter= 4.3mm, Thread Pitch= 1mm, Screw Length= 8mm

  7. 4lv1ygW4UgUp3idd
    4lv1ygW4UgUp3idd
    mIBnRC6NToebv54v

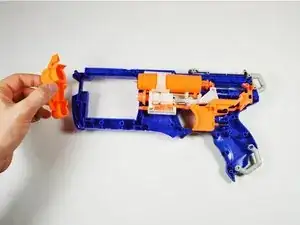

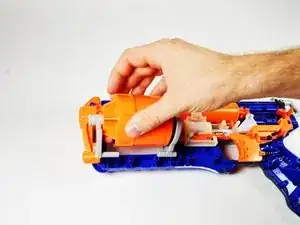

    • Remove the barrel from the blaster.

    • Remove the front component from the blaster.

    • Both components do not need any tools to be removed.

  8. 5SDNcgdYMyXZDELV
    5SDNcgdYMyXZDELV
    BqZBZeuNoOsGg3ME
    3wLEXkWlGlJCRORG

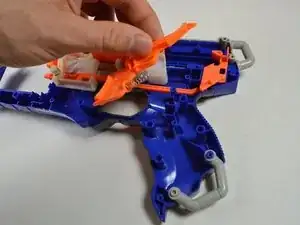

    • First, remove the trigger.

    • Then remove the cocking holdback.

    • Then remove the air compressor chamber.

  9. VNQX6yW6LfCriwlJ
    VNQX6yW6LfCriwlJ
    ECTTqtKwgYZfysng
    qLS6L2gxYFZRxt1r

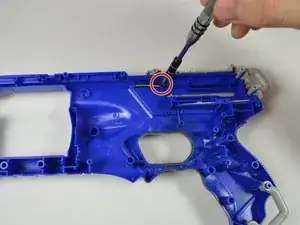

    • Locate and remove the indicated screw.

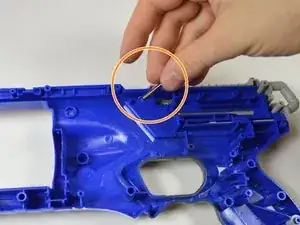

    • This is the spring controlling the cocking mechanism. If the spring is damaged, replace it.

    Where do I buy a new one

    The Irish Potato -

    I was wondering the same thing

    Whammer52 -

    what are screw specifications?

    Locate and remove the indicated screw.

    ATM -

    Hi where do I buy that spring?

    Keith tok -

    hi my spring is broken to and i was wondering where to buy a replacement spring for this nerf blaster

    Logica Met ons -

Abschluss

To reassemble your device, follow these instructions in reverse order.
