Nerf N-Strike Elite Strongarm Main Spring Replacement

Geschrieben von: Robert
  • Kommentare: 4
Nerf N-Strike Elite Strongarm Main Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

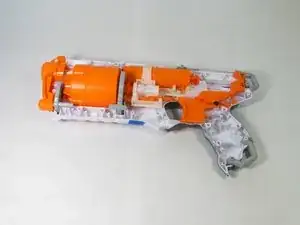

  1. S4f1VaBRyAbsPBVu

    • Remove the outside cover of the Nerf gun (cover and charging slide, 12 Phillips #0 screws).

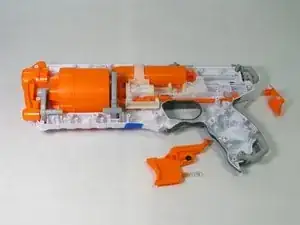

  2. nqIRSQ31tJf32FML

    • From the base, lift the action and the trigger.

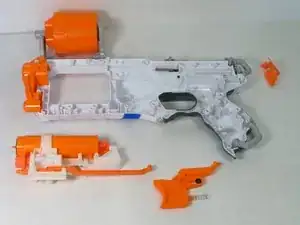

  3. qYFU2KiLk1XjFX5R

    • Lift the Nerf dart cylinder and the firing mechanism (spring chamber).

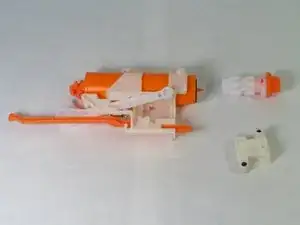

  4. 34txEeWcdOYtHf2v
    34txEeWcdOYtHf2v

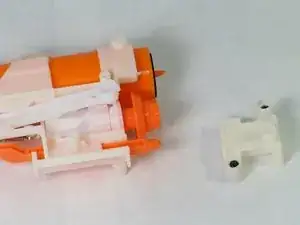

    rkGUMesSKjLdasKE
    RkmkGwkbRVvwvrFl

    • Unscrew screws (2) from the cylinder rotator mechanism.

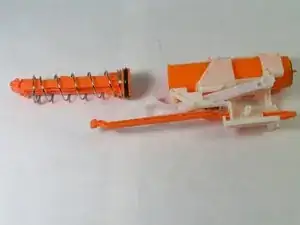

  5. xjgEHLHrcjeCHTkU

    • Remove the air plunger and the spring from inside the chamber.

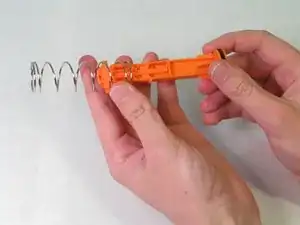

  6. SB4kfZdDry1NlPwa
    SB4kfZdDry1NlPwa
    MA2HTXiESuhcHSwf

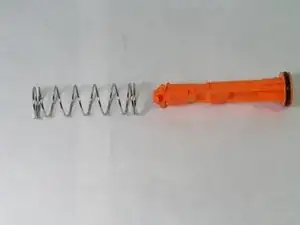

    16vmwE4IH6k1BAyw

    • Turn the spring counter-clockwise to free the spring. Be careful at the beginning and the end of the process.

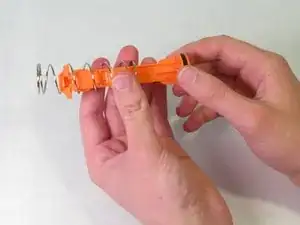

  7. YkbwpbvJQuKQ1c1Z
    YkbwpbvJQuKQ1c1Z

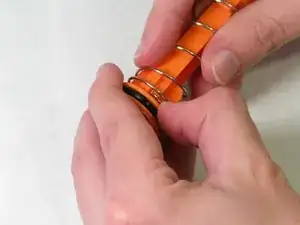

    24B4vkSbBoH3lc6W
    KqGEYmCjBZYDl5Hw

    • Replace the spring.

    • The spring will be greasy. Don’t be alarmed. Be careful at the beginning and the end of the process because it is like getting a key ring on at the notches, particularly at the top of the chamber.

    • Tip: If dry, use a little vegetable oil on the O-ring before putting it back.

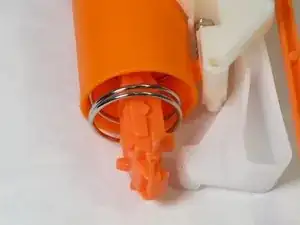

  8. XytJlC1eiqCwfsZc

    • Return the plunger to the spring chamber.

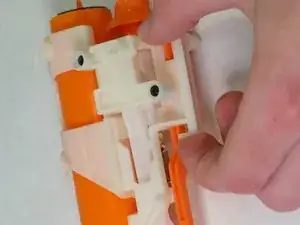

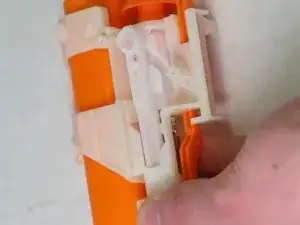

  9. MKMOcyHxvKJiNVOP
    MKMOcyHxvKJiNVOP
    UNRGMJe56XrdZmKC

    • Screw the cover back onto the cylinder rotator.

  10. upNQm51PmXi3yXlC

    • Place the spring chamber and the Nerf bullet cylinder back into the base.

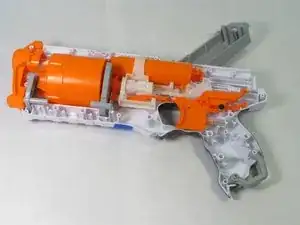

  11. DZFpRiAVPpaVW2ol
    DZFpRiAVPpaVW2ol
    1sdv3edQ1TKbx12t

    • Screw the trigger and the action back in. Swing the gray gun charging slide out when putting the action back in.

  12. SPk31xplmeJ3mEVC

    • Secure the cover and the charging slide with the 12 screws.

Abschluss

To reassemble your device, follow these instructions in reverse order.
