Nerf N-Strike Firestrike O-Ring and Plunger Replacement

Geschrieben von: Clovis Jahan

Kommentare: 2

Nerf N-Strike Firestrike O-Ring and Plunger Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 - 15 Minuten

Einleitung

If the blaster doesn't cock properly, the plunger and O-ring assembly may be damaged or broken. In this guide, you will learn how to replace the O-Ring and Plunger from the Nerf N-Strike Firestrike. This requires nothing more than a number 1 Philips screwdriver.

Werkzeuge

Phillips #1 Screwdriver

Schritt 1

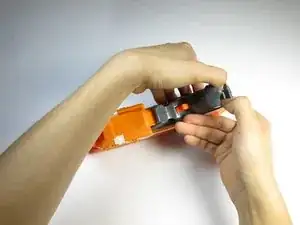

Use a #1 Phillips screwdriver to remove the 10 -mm screw that secures the battery plate, then remove the battery cover using your hands.

This should be step 1

Samuel Garcia -

Schritt 2

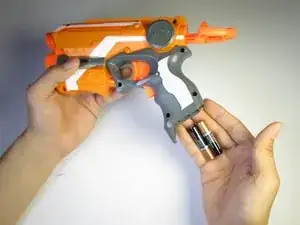

Slide out the two AAA batteries using your fingers.

This should be step 2

Samuel Garcia -

Schritt 3

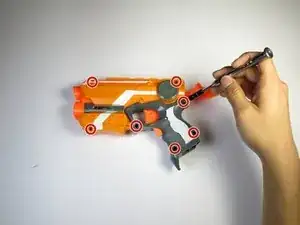

Remove the seven 10-mm black Phillips screws from the blaster casing with a #1 Phillips Screwdriver.

Schritt 4

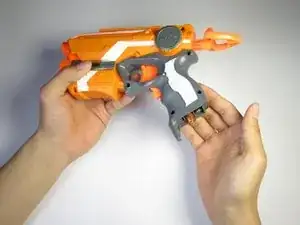

Slowly pull apart the blaster casing, starting at the battery location.
Keep pulling apart slowly until it separates completely. Be cautious as to not send the internal components flying.

Schritt 5

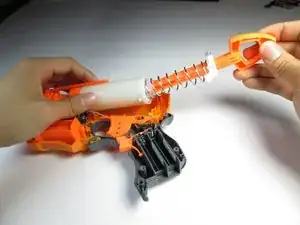

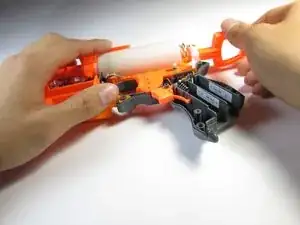

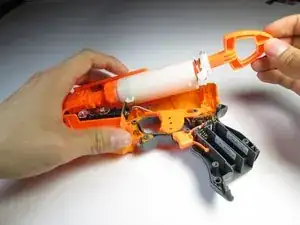

For reassembly, ensure that the chrome nut gets put back in the proper location, signified by the red box.
For reassembly, ensure that all the parts are lined up correctly on the dowels, signified by the four orange boxes.
For reassembly, note the location of the springs as highlighted in the second photo.
