Nerf N-Strike Maverick Trigger Repair

Geschrieben von: David Lim
  • Kommentare: 0
Nerf N-Strike Maverick Trigger Repair

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

Firing too many bullets at once? Use this guide to fix a jammed trigger on your Nerf N-Strike Maverick.

  1. KfZR4aXCZqGHO5cV

    • Remove the 10 screws on the outer shell of the Maverick.

    • Make sure to keep all the screws in a cup or container so they don't get lost.

  2. NSrYhhCWlZGANQFQ
    NSrYhhCWlZGANQFQ
    i22jHpG1vvix6suF

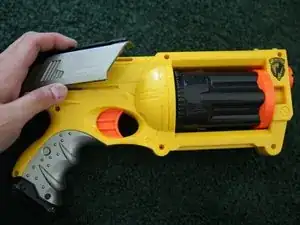

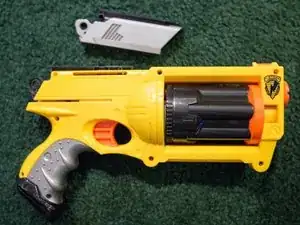

    • After removing all of the screws, slowly lift the gray top left piece.

    • The other side of the top left piece can also be taken off.

  3. b1SQKpHteIio3DjL

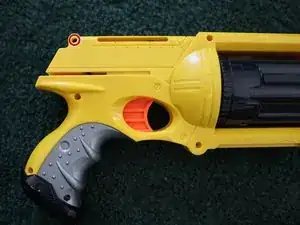

    • Remove the top left screw.

  4. DJSeJxxtUBoqrhTQ
    DJSeJxxtUBoqrhTQ
    65XS2eTKtPe3p1kq

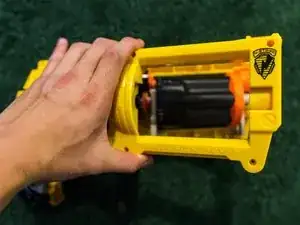

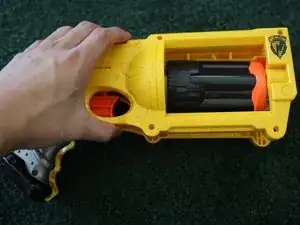

    • While holding the Maverick down slowly lift the outer shell.

    • Make sure the orientation of the Maverick matches the picture shown.

  5. mSYSAcUOp4I3yypl
    mSYSAcUOp4I3yypl
    TDBDXYfJlRCBjLLy

    • Remove the screw holding the trigger to the body.

    • When screwing everything back together, remember to re hook the trigger spring.

  6. nOkTSBQPNlLeOISK
    nOkTSBQPNlLeOISK
    3Zv25DlNFgqaW6TY
    Ya5qXrnXSBUSouuH

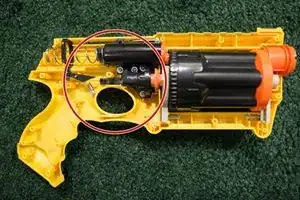

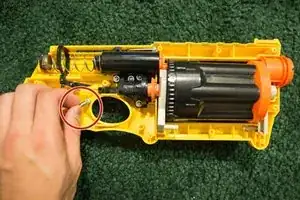

    • Check the inner chassis around the trigger area. Make sure the springs and parts can move freely.

    • If a part is broken, a replacement will need to be bought or taken from another Maverick.

  7. bY1EpsDCjcjYll6u
    bY1EpsDCjcjYll6u
    AAM2wt1y2klWqDht

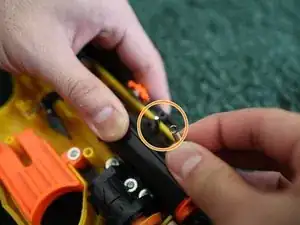

    • After examining and fixing the chassis, screw the trigger back onto the body.

    • Hook the upper spring to the metal rod.

  8. kAyvslWiOZEN1myn
    kAyvslWiOZEN1myn
    qtL4CTtA3OKJdHaN
    N6G6KyyNrEsCiRAV

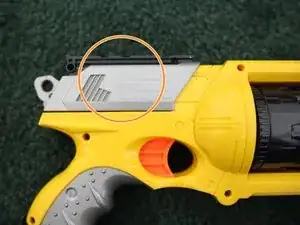

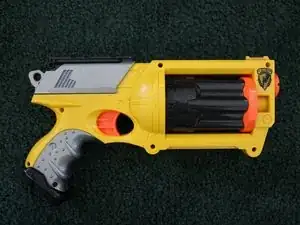

    • Replace the outer shell of the Maverick and the top left screw.

    • When reattaching the outer shell, make sure to hold the top left piece as shown in the first picture. This ensures that the spring remains connected to the rod.

    • Screw the top left piece back onto the Maverick.

    • Replace the 10 screws on the Maverick.
