Nerf Recon CS-6 O-Ring Replacement

Geschrieben von: Pam Ruffner
  • Kommentare: 4
Nerf Recon CS-6 O-Ring Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 - 30 Minuten

Einleitung

The plunger works with the main spring to launch the dart. The o-ring creates a tight seal to stop air from leaking out when the main spring is compressed. This allows for a more powerful shot.

  1. SOMmSUYVUKlYVr2T

    • Skip this step if magazine is already removed.

    • Pull slide back.

    • Pull backwards on release buttons and slide magazine out.

    • Push slide back forward and pull trigger.

    My priming bar is stuck how do I fix this?

    Ethan -

  2. 5ORvKYvrft2ESMfo

    • Use the Phillips #0 Screwdriver to remove these 9 screws.

    • All screws marked in red are 9.6 mm Phillips #0 screws.

    • Note that left most screw is longer than the rest and is a 18.6 mm Phillips #0 screw.

  3. lCH5KqMIITEPvIF1
    lCH5KqMIITEPvIF1
    JMDpIyEutNSMyhOE

    • Pull slide back to reveal more screws.

    • Remove these 2 screws.

    • Push slide forward.

    • Pull trigger to release compression of the main spring.

    • Screws are 9.6 mm Phillips #0.

    • Pulling the trigger will keep spring from launching out of the gun when the two halves are separated.

  4. aPDtlPMm1S1SYoqe

    • Remove the screws on the plunger cap.

    • Tug the plunger cap off.

    • Screws are 9.6 mm Phillips #0.

  5. sMi1V64wJWZbmTuS

    • Remove the 2 screws on the slide.

    • Screws are 9.6 mm Phillips #0.

    • Hold the two halves of the gun together to prevent any springs from launching out.

  6. getkdf253DYpB3O5
    getkdf253DYpB3O5
    nm4Xw5TgjIGsygBt

    • Pull the gun apart at the middle seam.

    • Watch for any springs that might launch out.

    Pay attention to the orientation of the tabs on the compression tube. The tabs fit into grooves on the side of the gun. This tripped me up.

    Bob -

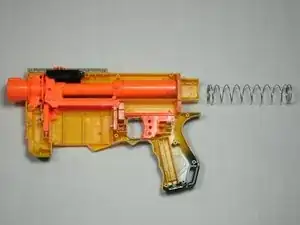

  7. ULqqKsGKHxYFGXUj
    ULqqKsGKHxYFGXUj
    EQNIIeKMwhoKmX5u

    • Pull the spring out the back of the gun.

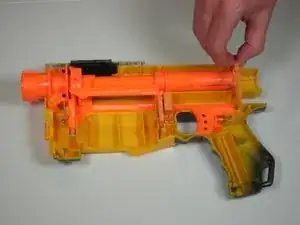

  8. 3puZbTkDso4FKWdU

    • Lift the plunger guide straight up out of the gun.

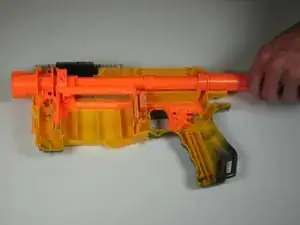

  9. Xckb6OhL6rgVHZyV

    • Pull the plunger out the back of the gun off of the inner piece.

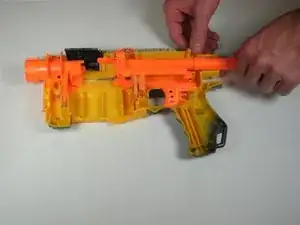

  10. v12y1UM6XAJdjyqC

    • Pull the remaining half of the plunger out the back of the gun.

    Hi, do you know where is the place that I can purchase the plunger?

    mohd-fairuz -

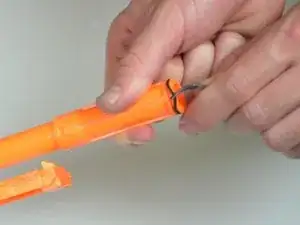

  11. idF5PpemIkTG4kSO

    • Use tweezers to lift the O-Ring out of groove.

    • Replace with new O-Ring.

    • Optional: add a small amount of a lubricant safe for the O-Ring such as petroleum jelly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
