Einleitung

  1. aDDImaAWumOqrWe4
    aDDImaAWumOqrWe4
    OJRYBFLae3SykiOX
    • Wedge a spudger between the black front panel and the white outer shell.

    • Slide the spudger around the edge of the panel to pop it off.

  2. ID31UOMX3EJHycwM
    • Remove the four small screws from the plastic camera cover.

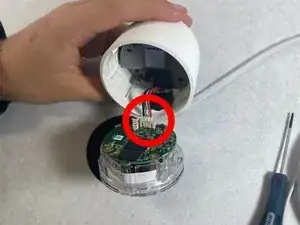

  3. FsuOYVyokeMqbT3N
    • Disconnect the microphone cable to separate the motherboard from the main camera unit.

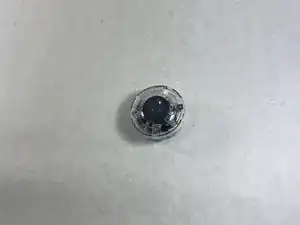

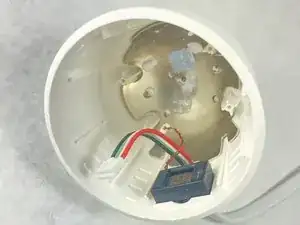

  4. 6pUdYfcNeH3BoNHh
    6pUdYfcNeH3BoNHh
    ycPOLqd3ojrIOV3d
    • Remove the plastic camera cover from the device.

  5. 2vVW1kTdUacH5Ke1
    • Pry the plastic cover away from the motherboard at the plastic clips using a spudger.

  6. gbdCckBRjwYAZsOJ
    • Remove the four mounting screws from the motherboard.

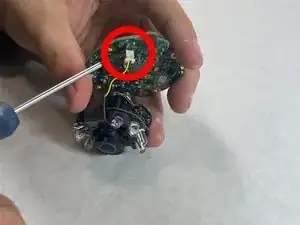

  7. LRqVBZuNZZnGNSmd
    • Disconnect the yellow camera cable from the motherboard.

    • Remove the motherboard from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
