The Nest Cam needs to be mounted on a stand for optimal posistioning. If your Nest Cam refuses to secure itself to the stand or falls off often, the side snap locks may have weakened or broken and need to be replaced.

  1. 3Pa6PAcZ2h11DDiY
    • Remove the four 6 mm screws from the back panel with the J000 Phillips head screwdriver.

    • We suggest designated areas to keep track of all screws.

  2. SmlomsKY5CvaBYox
    SmlomsKY5CvaBYox
    wFxpZRlADXR1RvLO
    mvyELxwttck4nnCj

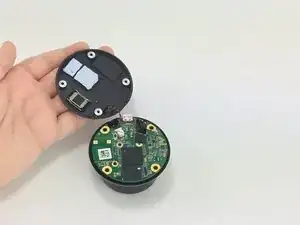

    • Open the back panel completely to expose the inside of the Nest Cam.

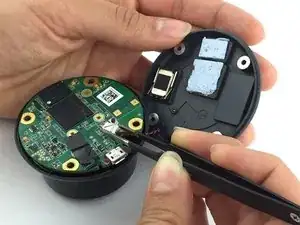

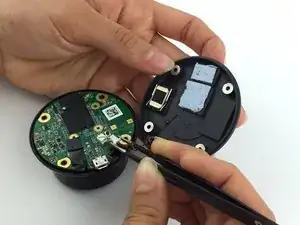

    • Using the tweezers, disconnect the red and black mic cable from the motherboard.

  3. y1ssGUFFdMtqDGy2
    y1ssGUFFdMtqDGy2
    LAmx546RYxWpyF2g
    a2FNCsMJnZOiOn6K

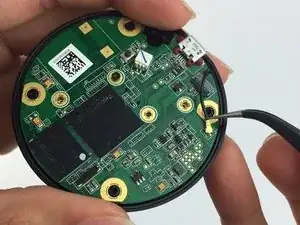

    • Disconnect the black Wi-Fi cable from the top of the motherboard with tweezers.

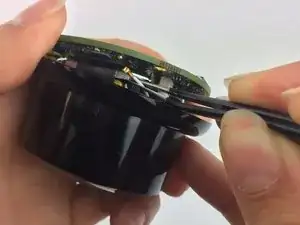

    • Use a plastic spudger to lift the motherboard and camera up enough to expose and disconnect the white cable with the tweezers.

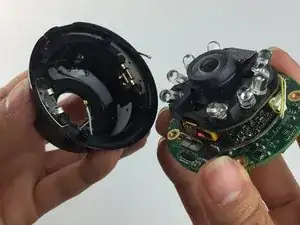

    • Remove motherboard and camera completely from the housing.

  4. XdUsRFJVIAPkAKFA
    XdUsRFJVIAPkAKFA
    hixJgF2fPfNCoEDe

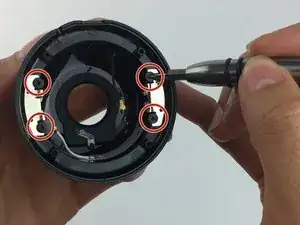

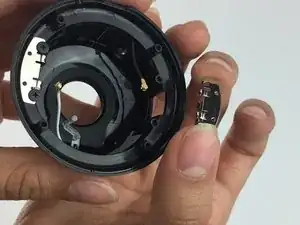

    • Remove the four 3 mm Phillips #J000 screws from the side snap locks. Remove the old side snap locks and place the new side snap locks.

    • Make sure everything lines up for the screws.

Abschluss

To reassemble your device, follow these instructions in reverse order.
