Nest Cam Speaker Replacement

Geschrieben von: Jade Weiss
  • Kommentare: 4
Nest Cam Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 - 20 Minuten

Einleitung

The Nest Cam's speaker is responsible for producing sound and is an important part of the system, if your Nest Cam's audio is muffled or completely absent, the speaker may need to be replaced. This guide will help walk you through the steps of replacing a faulty speaker.

  1. OAFODssBuLRXVI3t

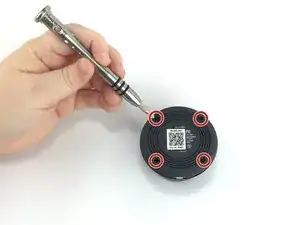

    • Remove the four 6 mm screws from the back panel with the J000 Phillips head screwdriver.

    • We suggest designated areas to keep track of all screws.

  2. bTCTWAZQEk4FOrXV

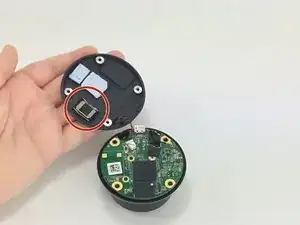

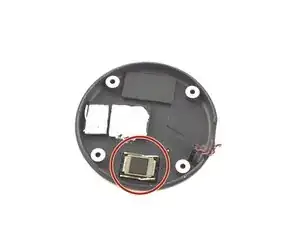

    • Open the back panel completely to expose the speaker indicated by the red circle.

  3. yLPLCtWxFe1Gg1sQ
    yLPLCtWxFe1Gg1sQ
    rpZmxpVKiS5IWlEZ
    wBHprCN13CEQYLlN

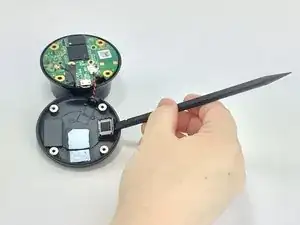

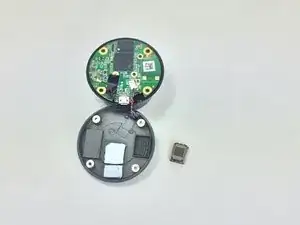

    • Remove old speaker gently with a spudger.

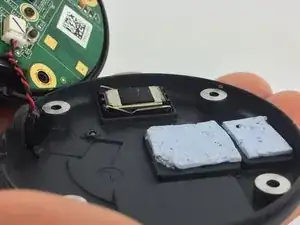

    • When placing the new speaker in make sure the prongs are facing the right direction and will connect with the two connector points on the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jade Weiss

Mitglied seit: 24/02/16

447 Reputation

4 Kommentare

where can I buy the new replacement speaker part?

Bradley Kang -

Anyone find out the answer to Bradley's question?

Ravi -

I’m curious as well if anyone has found where to obtain replacement/repair parts. Should be simple enough if we can determine the part number of the speaker.. suppose I’ll tear one down real quick to see.

Christopher Monge -

Looking at the speaker without thermal coverings looks like it just has some sound information. “8 ohm 0.5 w”. Next line, “1742 (space) 1”. Third line, “+ S -”.

Looks like electrical info of the speaker. I’ll keep looking!

Christopher Monge -
