Nest Hello Camera Replacement

Geschrieben von: Daniel Moore

Kommentare: 2

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

If you are not receiving video, or the picture is blurred or discolored, then a faulty camera may be the issue. If troubleshooting has led you here, then this guide will help you change the camera in your Nest Hello. Disassembly will require the iFixit opening picks, Phillips #000 screwdriver, and tweezers. It is easy to damage the waterproofing O-Ring while removing the faceplate and device housing, so [|plan on replacing that as well.]

Werkzeuge

Schritt 1

Insert the pick between the black faceplate and white casing of the Nest Hello.
Pry the faceplate away from the device with the opening pick.
If you have not opened the Nest Hello before, there will be a protective foam mesh that is glued to the plastic covering and the inside of the mesh, use a pick to cut through the mesh as much as possible.
Completely remove the faceplate from the device, do not be afraid to pull hard.

Schritt 2

Peel back the cover stickers and use the Phillips #000 screwdriver to remove the four screws.

There is a small circle sticker over each screw, about the size of the red circles in the image above. It wasn't clear from the directions what the "cover stickers" were. A small exacto knife was helpful to pry up the edge of each sticker.

Tim Scott -

Schritt 3

Insert opening pick between the white casing and the black internal circuitry and pry it out.
There is a ribbon cable connecting the white casing to the circuit boards. Be careful not to tear out the cable while separating the casing from the circuit boards.

Schritt 4

Use the Phillips #000 to remove the two screws holding the ribbon cable to the white casing.

Schritt 5

Grip the connector with the tweezers as shown and pull it away from the casing.

Schritt 6

Remove the six smaller screws shown with the Phillips #000 screwdriver.
Remove the three larger screws shown with the Phillips #000 screwdriver.

I didn't see a reason to proceed with step 7 - 10 as the battery was replaceable at this point. I just used my tweezers to pull the battery connector out and insert the new one. I probably could've stopped earlier and skipped removing the USB connector.

Jay Chin -

Schritt 7

Holding the device as shown push the circuit board away from you and up to free it from the clips.

Schritt 8

Use the Phillips #000 screwdriver to remove the three screws holding the last circuit board to the black plastic housing.

Schritt 9

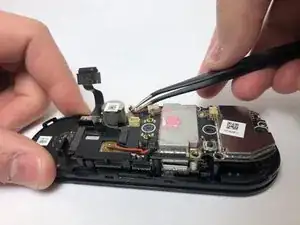

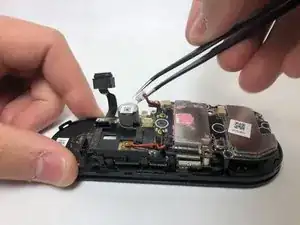

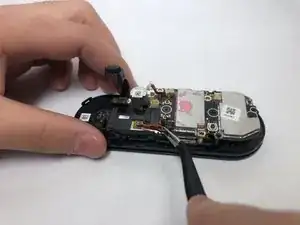

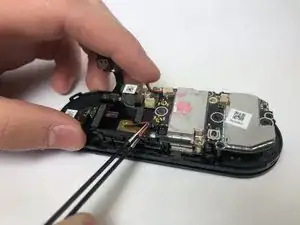

Insert the pick underneath the black connectors and pry them upward to disconnect them from the circuit board.

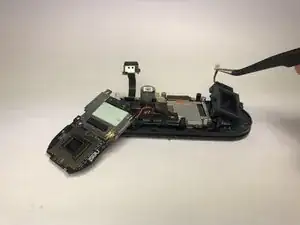

Work your way around the device, prying the circuit board away from the housing.

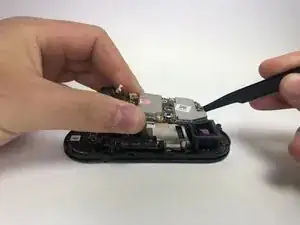

Make sure to feed the wires when taking off the circuit board.
