Nest Learning Thermostat 2. Generation Base Motherboard Austausch

Geschrieben von: Rachael Deptula
  • Kommentare: 14
Nest Learning Thermostat 2. Generation Base Motherboard Austausch

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

25 - 30 Minuten

Einleitung

When replacing the base motherboard, removal from the wall is necessary and power to the thermostat must be turned off. The tools required are the blue opening tools, spudger, and a #0 Phillips screwdriver.

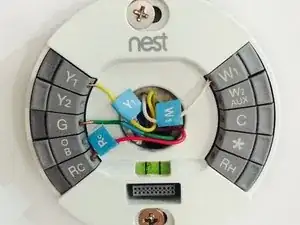

  1. ZOItWNfgtMLWJgap
    ZOItWNfgtMLWJgap
    qx2mWZFTHWSpQLid
    EAd5TJv5cybVbWeW

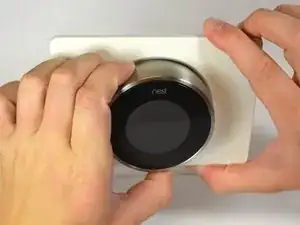

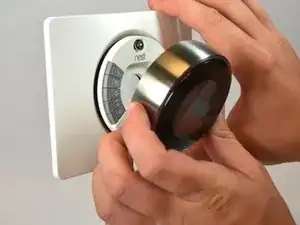

    • Vergewissern Sie sich vor der Demontage Ihres Nest-Thermostats, dass Ihr HLK-System ausgeschaltet ist.

    • Fassen Sie den äußeren Metallring des Displays mit Ihren Fingern und ziehen Sie ihn direkt von der Wand weg, wobei Sie den Sockel zurücklassen.

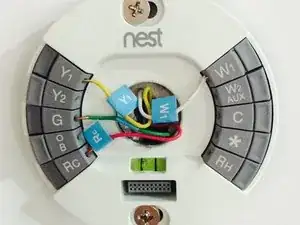

  2. 4tTO23YX1AcGJrrf
    4tTO23YX1AcGJrrf
    M6HBPsuLUkjyfobY
    mZNU2QuZQYjq4A6j

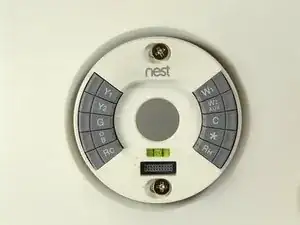

    • Denken Sie daran, das HLK-System und den Thermostat auszuschalten.

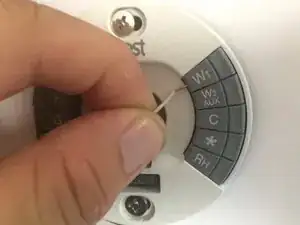

    • Trennen Sie alle Drähte von den grauen Federkraftsteckern. Dies kann mit den Fingern erfolgen.

    HOW do you disconnect the wires? I can't get them out!

    Beverley Brown -

    Same here. It is like the springs are in a stuck position

    Bill Redfield -

    I also can not dis-engage the wires. Feels like the springs are frozen closed.

    Bill Redfield -

    Hold down the button on the end and the wire should be able to slide right out.

    Amber -

    Yes, the button on the end of the wires is stuck in the down position. Tried pushing with my fingers and several smaller tools- they appear to be frozen in the down position.

    Garet Ten Cate -

    If you hold the buttons down while pulling the wires, they'll come right out and the button springs reset.

    Dan -

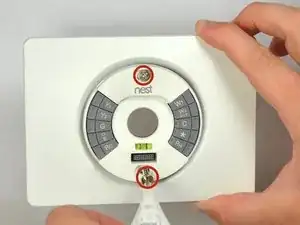

  3. IWvk5fxBlhwPKyOM

    • Entfernen Sie die beiden 40 mm Schrauben von dem/der Sockel/Basis des Thermostats mit einem Kreuzschlitzschraubendreher (Phillips #0).

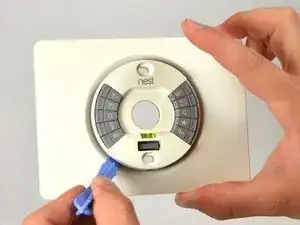

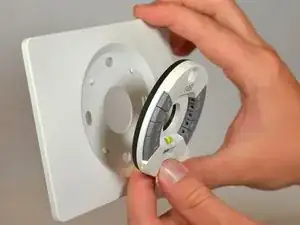

  4. gYUVKNowSPmOYY4k
    gYUVKNowSPmOYY4k
    AahYOdLWxGiio6YK
    vlk4lqARTmfnpqEg

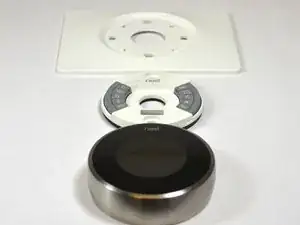

    • Lösen Sie den/die Sockel/Basis mit einem Öffnungswerkzeug aus Kunststoff von der Verkleidungsplatte (falls verwendet).

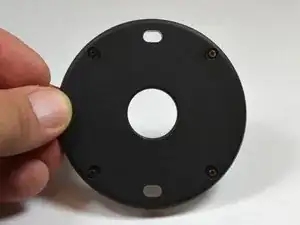

  5. dRdX3Z4jjWLxYxfW
    dRdX3Z4jjWLxYxfW
    GNL1aDJORRERnSTS

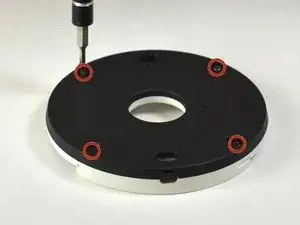

    • Drehen Sie den/die Sockel/Basis um.

    • Entfernen Sie die vier 6 mm Schrauben von der Rückseite des/der Sockels/Basis mit einem Kreuzschlitzschraubendreher (Phillips #0).

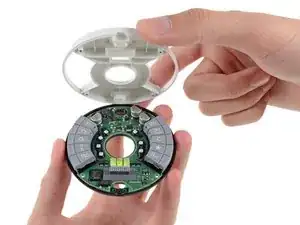

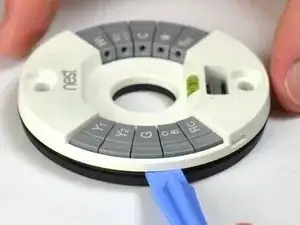

  6. rWb5GNoPOl2cOkT2
    rWb5GNoPOl2cOkT2
    MpPYkjemUgGgxfTg

    • Öffnen Sie den/die Sockel/Basis mit einem Kunststoff-Öffnungswerkzeug von der Seite.

  7. P3AjIVpwkLn43PHX
    P3AjIVpwkLn43PHX
    vJ4Ma1IXeiGTZBPB
    owx2BfYYrftIOnn6

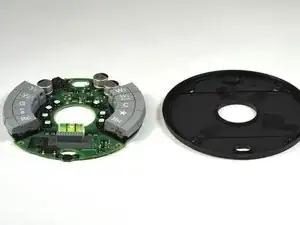

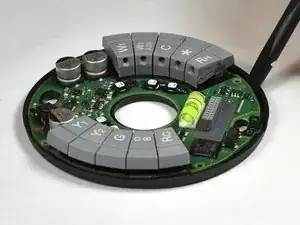

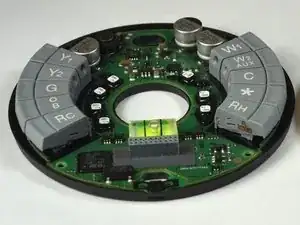

    • Es wird nur durch leichten Kleber zusammengehalten.

    • Hebeln Sie die Platine vorsichtig mit einem Plastik Werkzeug Heraus.

Abschluss

Befolgen Sie diese Anweisungen in umgekehrter Reihenfolge, um das Gerät wieder zusammenzubauen.

Tinte & Feder

Rachael Deptula

Mitglied seit: 04/09/14

990 Reputation

8 Kommentare

Would like to know where I can get just the base motherboard.

wesbug -

Where can we purchase replacement parts?

brettspradley -

i want the baseboard.. where i can buy? pls help...

john gemora -

Yep, my base unit lasted exactly 8 days, then it shorted out. The furnace repairman said he has seen it a couple of times, the base unit can't handle the current needed by the furnace so it goes poof. Back to Honeywell...

bbolen -

No replacement parts from Nest, my base unit died and I have perfectly working thermostat but am forced to buy a new one cause I can't get the base unit on its own.

Adrian Ma -

I have no clue why people like their thermostats to the degree that they do.. I am both an A/c professional and an Engineer. They use what is called an SCR or silicon controlled rectifier for their switching instead of a tiny relay. An SCR is very sensitive to a spark or voltage spike. Yes the thermostat is pretty cool and has some nice features. It is advanced electronics but using SMC's or Surface Mounted Components?? . Maybe that would work well in a shielded component. But NOT in something that is connected to long external wires. The consumer bought warranty is only one year. I have seen too many issues in the field with their overpriced toys. Not having parts for this Chinese made thermostat? Priceless.

Jon Reid -

Hey Jon, I’m trying to repair my parent’s 2nd Gen Nest. It sends out “heat” and “cool” signal at the same time. Anyway I can replace a component on the motherboard?

Lizik -

Good post. Wish I had read before I got a Nest thermostat. What would you recommend as a good alternative? I hate when you can't replace simple components and parts cheaply and quickly. What the !&&*.

doughboy1338 -
