Nest Learning Thermostat 2nd Generation LCD Screen Replacement

Geschrieben von: Justin Curry
  • Kommentare: 15
Nest Learning Thermostat 2nd Generation LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

30 - 40 Minuten

Einleitung

The replacement of the LCD screen is not difficult. The tools need to replace it are the plastic opening tools.

  1. 1vGB1MjRGIbKOVsq
    1vGB1MjRGIbKOVsq
    y1RcOgSWnLRLZvi2

    • Grasp the display's metal outer ring with your fingers and pull directly away from the wall.

  2. 4oYJnIrEYcSEluAj

    • Turn the display over.

    • Remove the four 6 mm screws from the back of the display using a Phillips #0 screwdriver.

  3. mOBtrEaWsiLEdaXE
    mOBtrEaWsiLEdaXE
    1HxnywKsqvfSBEJS

    • Pinch the gray 20-pin connector with your fingers and pull directly away from the display.

    • Do NOT pull too far as there is a ribbon on the back panel connecting the 20-pin connector to the display.

  4. MawE2EjLwvfNwHVy
    MawE2EjLwvfNwHVy
    YkpSMPL24Gpv1VKw
    nhqdSlYgbHPTXPAA

    • Locate the blue pull tab at the end of the ribbon which says, "1. Pull".

    • Grasp the tab with your fingers and pull directly away from the motherboard.

    How do you reattached the ribbon back to the motherboard ??

    alexehler -

  5. RkyokyRZAVvxs1XB
    RkyokyRZAVvxs1XB
    FwBGEZwN4SGLUcFb

    • Locate the blue tab which says, "2. Pull".

    • Use tweezers to pull the battery up and away from the display.

    • Do NOT pull too far, as the battery is still connected to the motherboard and must be unplugged.

  6. QyaLKliSlJyHkMy5
    QyaLKliSlJyHkMy5
    lyPTXvRALNpJMWSg

    • Locate the blue tab which says "3 unplug".

    • Grasp the battery with your fingers. Pull gently directly away from the display to unplug the battery from the motherboard.

  7. L1ZBfWWXsHGjhbaj
    L1ZBfWWXsHGjhbaj
    dMBgJuRAK2iOIXVu
    rBkNmopLvvsEX6ex

    • Grasp the battery with your fingers and pull directly away from motherboard to separate the battery from the display.

    Where do you buy the battery?

    Robert -

    Same question

    Milutin Jokic -

    At least say the tipe of battery that's needed.

    Pedro Sanchez -

    I just ordered the battery model specified. When it arrived, I realized it doesn’t have the same specs as the battery that comes with the thermostat.

    The part listed (TL284443) is 3.7 VDC, but it is only is 380mAh (1.41 Wh) (if you zoom in on the image when you click “Buy”, you can see)

    You can clearly see in the tear-down that the battery that comes with the thermostat is 2.1 Wh.

    It might work as a replacement, but doesn’t have the same capacity.

    Gerry Beggs -

    Double check your own equip online or in the manual people.

    There are different generations of thermostats. How would this guy know which battery you need.

    Thanks for the directions.

    Helps a lot.

    LisaKK -

    To be fair, most people don’t know that there are different generations of the Nest Thermostat and clearly they didn’t read that this was for the 2nd generation Nest Thermostat. Probably should have been pointed out in the instructions more clearly for those folks. Then they wouldn’t have been so confused about the battery voltage differences.

    Resist -

    I am a 64 year old woman, I had the Nest next generation installed last year. So far it keeps telling me that the connection to my wi-Fi is not working and now it’s saying the battery is dead. I’ve gone through all the steps to re-connect to wi-fi to no avail. Could this be because the battery needs replacing?

    It’s 68 degrees in my house now and that’s thanks to my fireplace not this horrible device. I am going back to the regular thermostat, what a waste of hard earned money.

    Laura Rogers -

  8. rsbGsGXdwH36jiWi

    • Locate the auto-away sensor.

  9. XULxH5E6RADNXXUT
    XULxH5E6RADNXXUT
    NMtNG1JCMQJZBGif

    • Remove the four 3mm screws with a #0 Phillips screwdriver.

    • Remove the one 4mm screw located at the edge of the auto-away sensor. Use a #0 Phillips screwdriver.

  10. xyuL25R3YYrXu1uQ
    xyuL25R3YYrXu1uQ
    TGQGw1WMRNSi6PXK
    3JZl25HuEJu3ShiV

    • Lift the auto-away sensor from motherboard using tweezers.

    • Peel the copper foil gently from the EMI shield.

  11. Is3iIUD4F2RJZ36w

    • Remove one 4 mm screw from the motherboard using a #0 Phillips screwdriver.

  12. 2DFDsebTAdBb4XvI
    2DFDsebTAdBb4XvI
    YJahNJfXbXoy5ygP

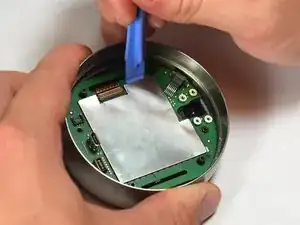

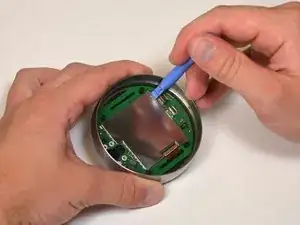

    • Remove the EMI shield from the motherboard using the plastic opening tools.

  13. 3dWTqAVn21I5aqEB
    3dWTqAVn21I5aqEB
    RiWoOL3GpFfHjg2X

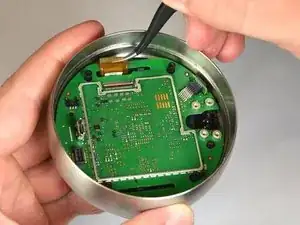

    • Unsnap the LCD ribbon from the motherboard gently using the tweezers.

  14. FkROwVWtYUINEhEc
    FkROwVWtYUINEhEc
    LDWe3AWISAJsUSDJ
    s6srA5QyKuT5Lhpo

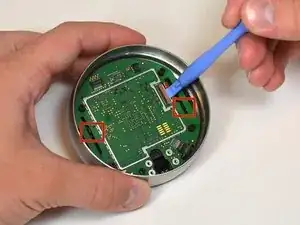

    • Locate the black tabs that hold the display to the motherboard.

    • Push the black tabs gently away from the motherboard using the plastic opening tools.

  15. rWQF4oF34pTvCbnn
    rWQF4oF34pTvCbnn
    RhMHwBYGx4N6ISeO

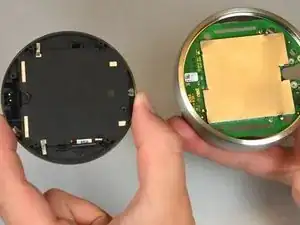

    • Pull the face display gently away from the motherboard.

  16. TvZmvtU4VFuLR3so
    TvZmvtU4VFuLR3so
    3SKRQSqHvTWrVMtD
    WcfDeS3avBhPkhBo

    • The front of the glass display and plastic frame is held together by only light adhesive.

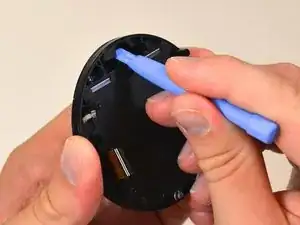

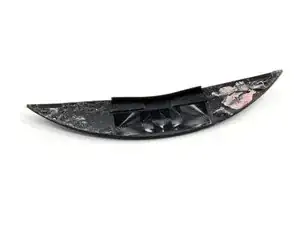

    • Push the crescent shape bottom of the display away from the plastic frame using the plastic opening tools.

    What is that crescent plastic part for?

    My gen 3 seems to be bubbling and not flat

    Chris Chung -

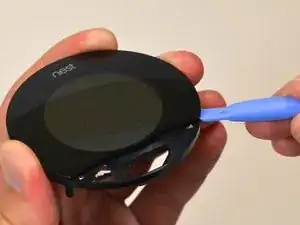

  17. STIQLiIXG1Fk2eji

    • Pry the front glass and plastic frame apart gently using the plastic opening tools.

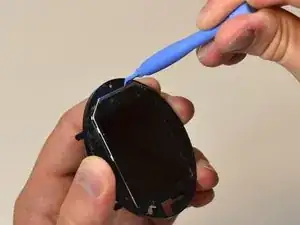

  18. hiLrWRP6XdNqxbZf
    hiLrWRP6XdNqxbZf
    4BLlTEjTkK4QImtA

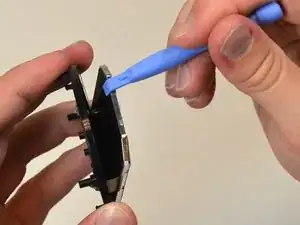

    • Pry the LCD screen gently from the plastic frame using the plastic opening tools.

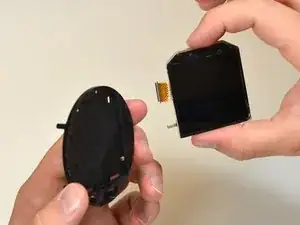

  19. 4lOKd6qrSumZdqUA
    4lOKd6qrSumZdqUA
    QCZAXqKohV2qdfmw
    EjMBldIQG3pJuAkH

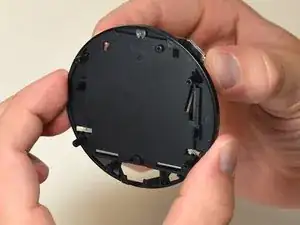

    • Pull the LCD screen away from the plastic frame gently using your fingers.

    I can’t see how the LCD ribbon is reattached. Is it sliding just under the part that is pivoting up or is it beneath the wires below that?

    lessig -

Abschluss

To reassemble your device, follow these instructions in reverse order.
