Einleitung

If your Nest x Yale Lock is related to any issues on the unresponsive section of our troubleshooting page, you may need to replace the motherboard. Use this guide to replace the motherboard properly.

The motherboard is located inside and responsible for the lights, locking the lock, connecting the keypad, and helping the whole lock function.

Before beginning the process, be sure the device is off and not connected to the keypad.


  1. PeWnALpSNTUsq3l2
    • Before proceeding, make sure the batteries are removed to avoid being electrocuted and damage to the lock

    • If you do not know how to remove the batteries then I would recommend looking at our battery replacement guide for help.

    Adding a link to a different guide that is being referred to is a great way to follow through the guide, great job.

    Hazem Shekfa -

    Add specific tools used in the tools section.

    Asia Baldwin -

  2. JIR5H2XOJ2cxqrAB
    JIR5H2XOJ2cxqrAB
    6v2B66JGFY4oF5Kj

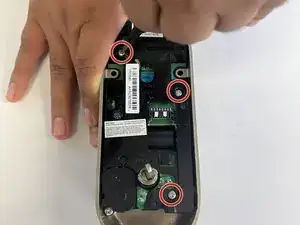

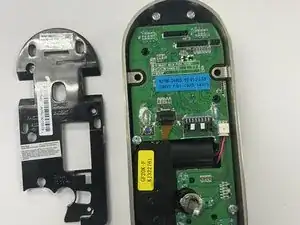

    • Remove 3 screws as shown to remove the first cover.

    • The 3 screws are 0.25 inches length

    Mention the type of screw if it's Philips or something else.

    Hazem Shekfa -

  3. cKKS5WyDXxwDeytK
    • Using a pin to push down the knot holding the wire and the tweezer to safely remove the wire from the motherboard

    No need of use a comma between the wire and the tweezer

    Hazem Shekfa -

  4. oqkljpQYwLMGrGDj
    oqkljpQYwLMGrGDj
    RSBoaTQGP2xK4ZGc

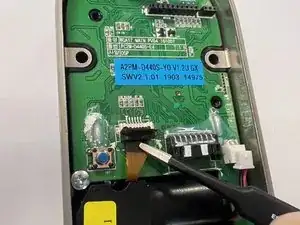

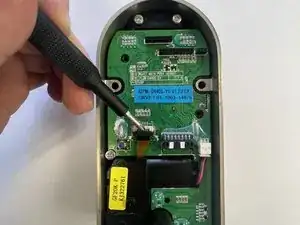

    • Use a spudger or plastic tool to lift the ZIF lock upward (as shown in the first picture).

    • Use tweezers to remove the ribbon cable from the motherboard.

    Use instead of using

    Hazem Shekfa -

  5. ADWjRNV2IUyihDa3
    • Continue to remove 2 screws holding the motherboard to the lock shell.

    • The screws are 0.20 inches in length.

    Mention the type of screws being removed

    Hazem Shekfa -

  6. U2RLxiqji1IrLOJA
    U2RLxiqji1IrLOJA
    sKBLxsTXXSi2LAZU
    • Use an opening tool to push the motherboard out as shown in the picture.

  7. RNtUmyobL4Rec6Vu
    RNtUmyobL4Rec6Vu
    p1NyaCK2MW6eSyDE
    • After, fully removing the motherboard.

    • Remove the .25 in screws circled in red to remove the lock compartment.

    • Lastly, take out the lock as shown in the second picture.

  8. cjtQkuVlKg5DUYLA

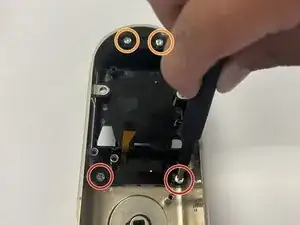

    • Move onto removing the .25 inches screws in red to take out the battery holder.

    • Remove the .15 inches screws in orange as well.

  9. S2T1YLeZa2WHUxiS
    S2T1YLeZa2WHUxiS
    uucyrBa6WF3V2Rld

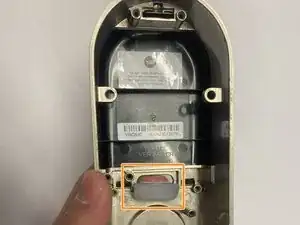

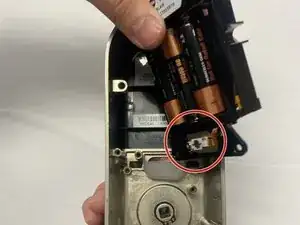

    • After unscrewing the battery holder you can now see the lights circled in red

    • The part squared in orange is a rubber that reflects the light of the LED.

Abschluss

To reassemble your device, follow these instructions in reverse order.
