This guide will explain the process of removing the Sync button on the device. It is important to remember that if you are having connection problems it could be a simple hardware problem. To best use this guide the Phillips 00 screwdriver is recommended. The Phillips 000 or 0 may work as well, please note that the smaller the screwdriver the higher chances of stripping the screw. It is also recommended to have a plastic opening tool (blue) to gently pull the device apart and a bowl or container to keep the small and easily lost screws in.
Werkzeuge
-
-

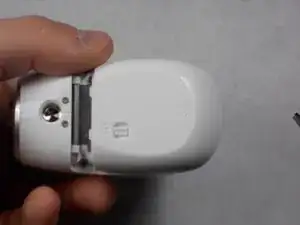

Unscrew the two 3.0 mm Phillips #00 screws on the bottom of the camera.
-

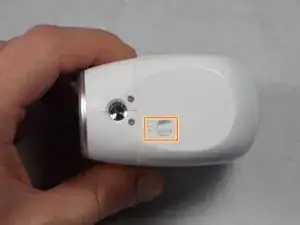

Open the battery compartment on the bottom by pushing the switch marked in orange to the side and pushing the bottom of the camera back, sliding it open.
-
-
-

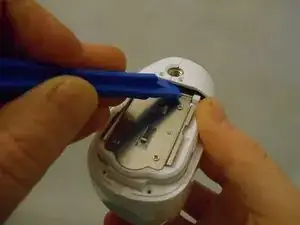

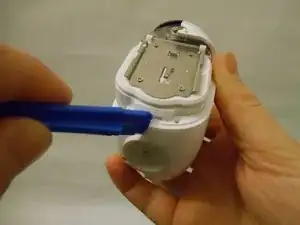

Remove the bottom piece of the case over the battery compartment by placing a plastic opening tool underneath the edge of the case and prying it up.
-

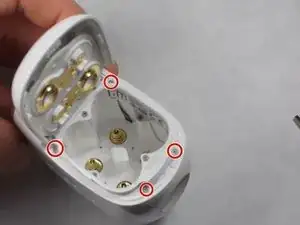

Unscrew the four 3.0 mm Phillips #00 screws on the outside of the battery pocket.
-
-
-

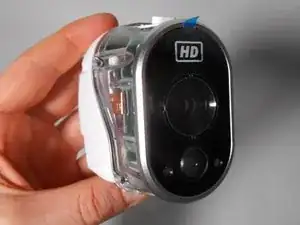

When facing the camera lens, the left panel of the case will be removed first (more steps are needed for the right panel).
-

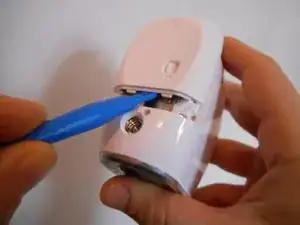

Place the plastic opening tool between the two pieces of the case and pry them apart from the bottom.
-

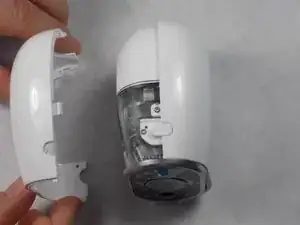

Gently pull the side of the case off as it comes loose.
-
-
-

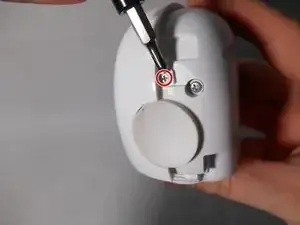

Unscrew the smaller 3.0 mm Phillips #00 screw in the center on the back of the device.
-

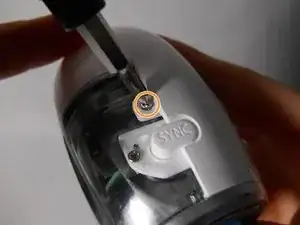

Flip the camera over and unscrew the center 3.0 mm Phillips #00 screw above the SYNC button.
-
-
-
Using the plastic opening tool, gently pry the right panel from the device.
-
Replace either side of the plastic case as needed.
-
-
-

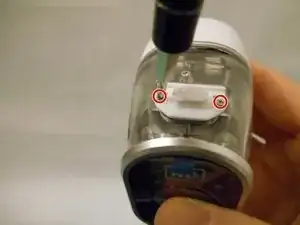

Unscrew the two 3.0 mm Phillips #00 screws on either side of the SYNC button.
-

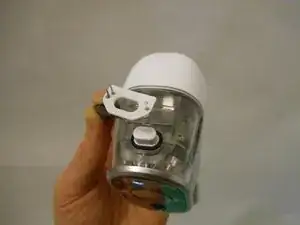

Remove the white plastic covering.
-

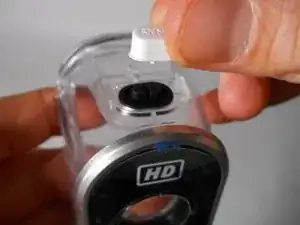

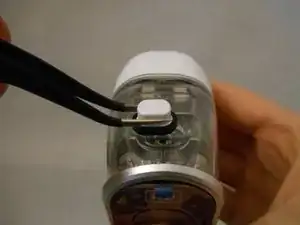

Remove the white SYNC button.
-
To reassemble your device, follow these instructions in reverse order.
