Network card Replacement

Geschrieben von: Robin Koch
  • Kommentare: 0
Network card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

Want to have a newer/faster network card? Follow this guide, it will show you how to replace it.

  1. UAmrmqTPFBoaLVvV

    • Be sure to remove the battery to prevent any electrical shortage.

  2. Y1foTBpBYVYuAYxQ
    Y1foTBpBYVYuAYxQ
    fNYjg5OM1jb4ZEYe

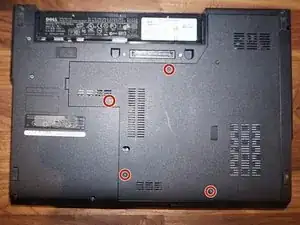

    • Loosen all four screws and remove the back panel.

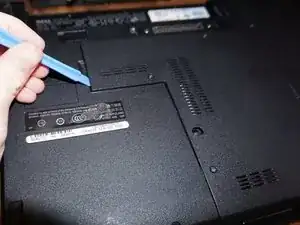

    • Remove the back panel with a spudger. Start out as in the second photo to prevent the plastic from breaking. Work you're way around the panel to remove it.

  3. bjtI2psFAgKBI5ls
    bjtI2psFAgKBI5ls
    Xfr1meAJcmFyCaqJ

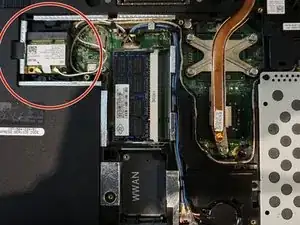

    • In the red circle is the network card

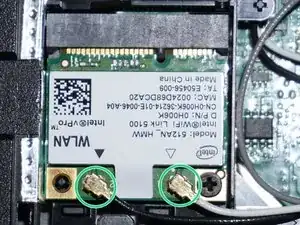

    • Remove the two wires (inside the green circle)

    • the wires are very fragile and need to be removed with care

  4. 4exdxW1wXtW3GHAW

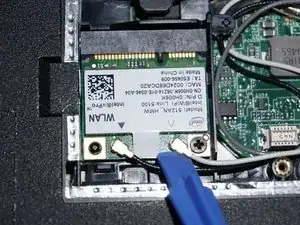

    • Place the spudger as shown in the photo. The network card will pop up. After that you can remove it and replace it with another one

    • The wires are very fragile, be aware!

Abschluss

To reassemble your device, follow these instructions in reverse order. Be sure to connect the wires the same as in step 3.
