New Nintendo 2DS XL Circle Pad Replacement

Geschrieben von: Tim Newman
  • Kommentare: 16
New Nintendo 2DS XL Circle Pad Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

This guide outlines the procedure for accessing the device circle pad. To access the circle pad, the entire device must be opened. This might be intimidating at first, but as long as the guide directions are followed, no damage to the device is expected. For more information, refer to our troubleshooting page.

  1. R3WrHkdaFuZjfZ3d

    • Before starting the disassembly, remove

    • The stylus

    • Any game cartridge

    • The SD card

    This is a great repair instructional, but I would advise also looking at the below video link. (I used both.) Sometimes watching 2 repair guides can help when you think you think you’re stuck. For example, I had a really hard time getting the hinge off!

    https://www.youtube.com/watch?v=Zuu_T2ls...

    (HINT: Works best if you rotate it 180 degrees, so that you are repairing it from the same perspective as the technician)

    skat1140 -

  2. qInyERKyTGMKUtxf

    • Unscrew the four 6mm tri-point screws located at the four corners of the bottom panel.

    The Y0 was too big; I ended up using a Y00 and that worked fine

    Christopher Gilmer-Hill -

    Would not recommend using a Y000 like I tried to do

    Daniela Magaña-Ochoa -

    gotta use Japanese Industry Standard YOO (blunt end)- I did not, and accidentally stripped two of the screws… still trying to figure out how to remove them -_-;

    Yanko Artidiello -

    Yeah I can confirm, the y0 does not work.

    Arc Turus -

    I'm using the Y-0.6 and seems to only unscrew 2 of the screws on the right side of the handheld, the other 2 aren't moving

    Xx_Definity_J0rd4n_xX -

  3. FUiabbAOYVaNjG4X
    FUiabbAOYVaNjG4X
    MiHqoVbAY3mST6Ls

    • Be careful when separating the bottom panel from the front casing to avoid breaking the three cables connected to the motherboard (two on each side and one in the rear).

    • Using a spudger, separate the back panel from the front casing by gently prying around the panel.

    • There are many clips along the hinge of the case, so it is recommended to work your way along one short side and the two long sides before finishing the last short side.

    You need to be super careful separating the top from the bottom at the rear end. I got stuck there, applied a lil more force and ripped the right shoulder button straight off the pcb!

    Dominik Leicht -

  4. hN4JmkBHkaqtRlxN
    hN4JmkBHkaqtRlxN
    sLnMpviSoWENSJQk
    CxaLwKZ2IuAS5cAV

    • Using tweezers, disconnect the two cables that connect the rear buttons on either side to the motherboard by gently pulling them upwards.

    I unfortunately took off the base of one when trying to pull apart. Is there a fix or will it not be broken?

    Phoenix Typhoon -

    Did you manage to fix this at all?

    Owen McKay -

    When you are putting these cables back, make sure to check the orientation of the cable. You have to match the cable head to the entry point, so you may have to turn the cable around. I spent a bit too much time trying to connect the cables just because I didn't realize that I had to turn the cable around.

    Hongda Wang -

  5. 6AT5OJ1MuuBaICeA
    6AT5OJ1MuuBaICeA
    ua4Ruiu5ewlgVKlO

    • Using a spudger, lift out the battery.

    • Be aware that there is a sticky pad holding the battery into its tray. It may be necessary to use multiple tools to gently pry the battery away from the tray and motherboard.

    Some might see this as an optional step. But you probably do NOT want to skip this. I did, and now I have malfunctions on the Nintendo (touch screen functionality not working, possibly as a result of shorts from skipping this step.)

    skat1140 -

    Personally, I skipped this step and everything still works fine. I wasn't able to take the battery out because the adhesive was too strong.

    Hongda Wang -

  6. jsjgOUIawZWESUXN
    jsjgOUIawZWESUXN
    VRgNRQ53qkPwcvlk
    dJeHGCVnBjiX1U1P

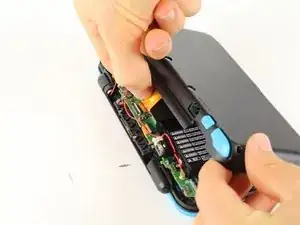

    • To more easily access this ribbon cable, flip the device so the back casing faces upwards. Gently slide the back casing forward, revealing the ribbon cable connecting to the motherboard.

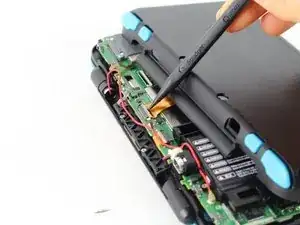

    • Using a spudger, pry up the ZIF connector holding the ribbon cable.

    • Pull the ribbon towards the bottom casing and out of the connector.

  7. vs5SJGfPUygu5lmG
    vs5SJGfPUygu5lmG
    NXDcOe3GUOlemOPB

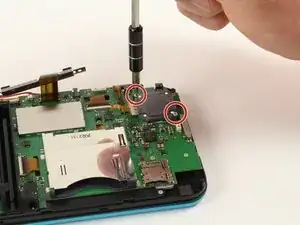

    • Remove the two 7.5mm phillips screws using a PH000 screwdriver.

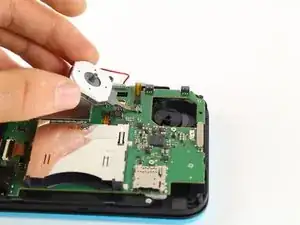

    • Gently flip over the circle pad. Be aware that the pad is pressed into the back of the circle pad on the front of the case. Gentle prying will be necessary to pry if from the back of the circle pad.

    • Be aware that there is a black plastic disc that sits between the circle pad module and the circle pad stick. During reassembly, stand the unit on end and hang the plastic disc on the circle pad module and hold the stick from the front to press them back together.

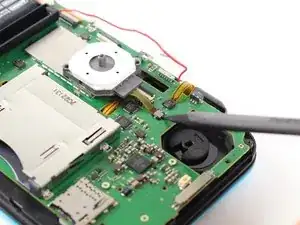

  8. 65KIJLy2EIKUVqZE
    65KIJLy2EIKUVqZE
    ok6OMmECgYSMsUPh
    KEdQ2GHGis4OTOln

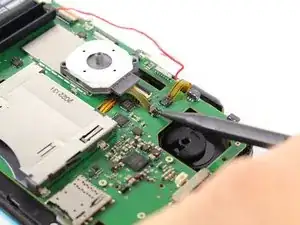

    • Using a spudger, lift up the ZIF connector (the hinge is located on the side closest to where the cable connects).

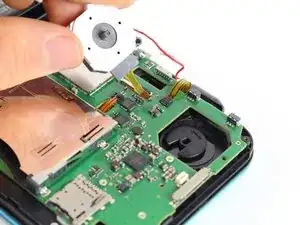

    • Remove the circle pad by pulling it away from the connector.

    You'll need to push the circle pad through groove out the front face plate.

    Adedamola Odutola -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Tim Newman

Mitglied seit: 25/09/17

1432 Reputation

3 Kommentare

I can’t seem to find a New 2ds XL circle pad replacement online, does anyone know if a regular 2ds circle pad works? (Or perhaps a 3ds one?)

Dvdcd -

Future Myself, the 3ds circle pad kinda works. The major change here is the screw holes, they were moved in on the 2ds xl, so if you do some sanding and finagling it will work, but it’s not elegant at all.

Dvdcd -

Excellent guide, although I believe the 2ds XL requires a Y00 and not a Y0

Gabrielle Watson -
