New Nintendo 2DS XL Front Buttons Replacement

Geschrieben von: Tim Newman
  • Kommentare: 21
New Nintendo 2DS XL Front Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 Minuten

Einleitung

This guide provides the procedure for replacing the front buttons on the device. To access the front buttons, the device case needs to be opened. The process of opening the device might be intimidating at first, but the proper precautions are outlined in the guide. No device damage is expected if the guide steps are followed. For more information, refer to our troubleshooting page.

  1. R3WrHkdaFuZjfZ3d

    • Before starting the disassembly, remove

    • The stylus

    • Any game cartridge

    • The SD card

    This is a great repair instructional, but I would advise also looking at the below video link. (I used both.) Sometimes watching 2 repair guides can help when you think you think you’re stuck. For example, I had a really hard time getting the hinge off!

    https://www.youtube.com/watch?v=Zuu_T2ls...

    (HINT: Works best if you rotate it 180 degrees, so that you are repairing it from the same perspective as the technician)

    skat1140 -

  2. qInyERKyTGMKUtxf

    • Unscrew the four 6mm tri-point screws located at the four corners of the bottom panel.

    The Y0 was too big; I ended up using a Y00 and that worked fine

    Christopher Gilmer-Hill -

    Would not recommend using a Y000 like I tried to do

    Daniela Magaña-Ochoa -

    gotta use Japanese Industry Standard YOO (blunt end)- I did not, and accidentally stripped two of the screws… still trying to figure out how to remove them -_-;

    Yanko Artidiello -

    Yeah I can confirm, the y0 does not work.

    Arc Turus -

    I'm using the Y-0.6 and seems to only unscrew 2 of the screws on the right side of the handheld, the other 2 aren't moving

    Xx_Definity_J0rd4n_xX -

  3. FUiabbAOYVaNjG4X
    FUiabbAOYVaNjG4X
    MiHqoVbAY3mST6Ls

    • Be careful when separating the bottom panel from the front casing to avoid breaking the three cables connected to the motherboard (two on each side and one in the rear).

    • Using a spudger, separate the back panel from the front casing by gently prying around the panel.

    • There are many clips along the hinge of the case, so it is recommended to work your way along one short side and the two long sides before finishing the last short side.

    You need to be super careful separating the top from the bottom at the rear end. I got stuck there, applied a lil more force and ripped the right shoulder button straight off the pcb!

    Dominik Leicht -

  4. hN4JmkBHkaqtRlxN
    hN4JmkBHkaqtRlxN
    sLnMpviSoWENSJQk
    CxaLwKZ2IuAS5cAV

    • Using tweezers, disconnect the two cables that connect the rear buttons on either side to the motherboard by gently pulling them upwards.

    I unfortunately took off the base of one when trying to pull apart. Is there a fix or will it not be broken?

    Phoenix Typhoon -

    Did you manage to fix this at all?

    Owen McKay -

    When you are putting these cables back, make sure to check the orientation of the cable. You have to match the cable head to the entry point, so you may have to turn the cable around. I spent a bit too much time trying to connect the cables just because I didn't realize that I had to turn the cable around.

    Hongda Wang -

  5. 6AT5OJ1MuuBaICeA
    6AT5OJ1MuuBaICeA
    ua4Ruiu5ewlgVKlO

    • Using a spudger, lift out the battery.

    • Be aware that there is a sticky pad holding the battery into its tray. It may be necessary to use multiple tools to gently pry the battery away from the tray and motherboard.

    Some might see this as an optional step. But you probably do NOT want to skip this. I did, and now I have malfunctions on the Nintendo (touch screen functionality not working, possibly as a result of shorts from skipping this step.)

    skat1140 -

    Personally, I skipped this step and everything still works fine. I wasn't able to take the battery out because the adhesive was too strong.

    Hongda Wang -

  6. SSMvQDgl1DwcocIH
    SSMvQDgl1DwcocIH
    mDsPxLStvgmPJlHp

    • There are 8 ribbon cables that need to be removed as shown in the picture.

    • 2 of connectors (in green) are friction fit, unlike the rest of the connectors. Remove the cable by pulling it out gently. Do not attempt to open or unlatch these connectors in any way. Doing so will break them.

    • For the remaining 6 (in red), use a pair of tweezers to flip the latches up and pull the ribbon cable out.

    • Note that the second picture shows a broken ribbon connector next to the joystick ribbon connector (to the right of the red arrow). Do not attempt to unlatch this connector as shown in the picture!

    Do not just pull up “latches”, two of these are not zif connectors and pulling the top off will break it! I now have a dead 2DS XL because I followed this guide.

    Pressing the ZL button on device turns system off.

    Dunnymeister -

    I made the same mistake. The guide is now updated.

    Mike -

  7. lENbxc1owHxJd2B5
    lENbxc1owHxJd2B5
    Ty63qp3gtGSWq2Df

    • Unplug the following wires from the motherboard using a pair of tweezers.

  8. GqvOCteO2iYPDwUf
    GqvOCteO2iYPDwUf
    AfDTdwEG1IjHHCef

    • Remove the following screws using a J00 Phillips screwdriver bit.

    • Remove the motherboard from the device.

    Step 8 motherboard screws are J00 Phillips.

    Joseph Costello -

    Thank You!!!

    Zach -

    Guide has been updated.

    Mike -

  9. 1AWjFXVBiOKmFNhR
    1AWjFXVBiOKmFNhR
    xHuOoIpFuYUssHPT
    hqMbMBTZvBFWGu5s

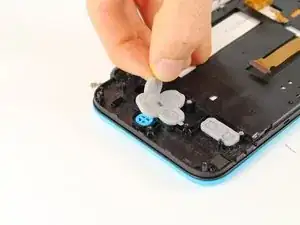

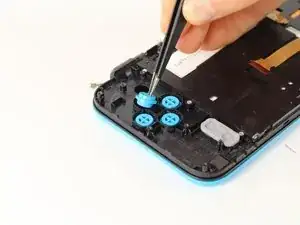

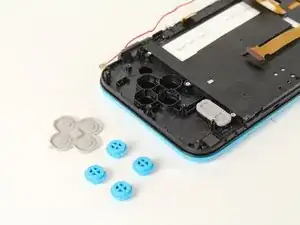

    • Lift off the rubber cover on the A, B, X, and Y buttons.

    • Using tweezers, lift out the buttons.

  10. SUIT6nTdrgJSLmL6
    SUIT6nTdrgJSLmL6
    1LHNhvAVBHYTPGTE
    hMLaJ2UiYgM1RSek

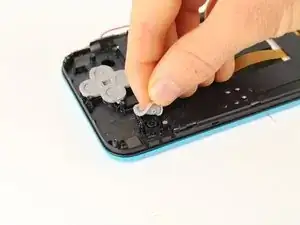

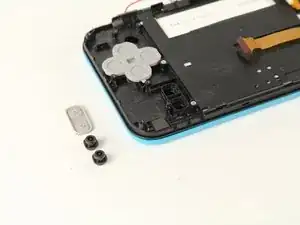

    • Lift off the grey rubber cover on the start and select buttons.

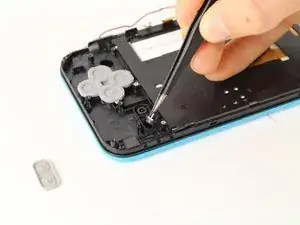

    • Using tweezers, lift out the buttons.

  11. 1cwwoDgCSSJZT6Ea
    1cwwoDgCSSJZT6Ea
    JQitoP2fXQnPBHQD
    eYyA5dS1rSILCFa5

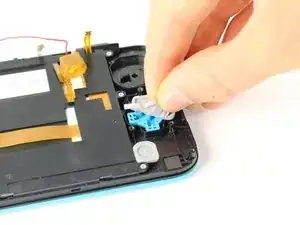

    • Lift off the grey rubber membrane on the D-pad.

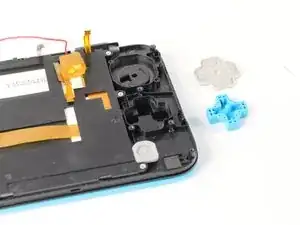

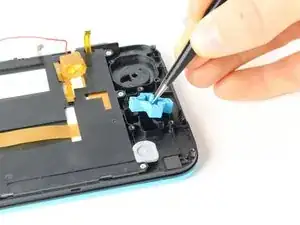

    • Using tweezers, lift the D-pad out.

  12. 11ffSkdYLQKDnkUa
    11ffSkdYLQKDnkUa
    lyBftax4pLCY3FcF
    PLhgAthrMuOOuJl6

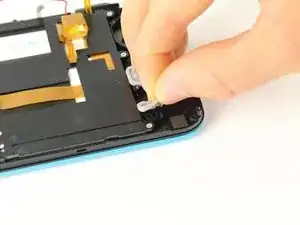

    • Lift off the grey rubber membrane covering the home button.

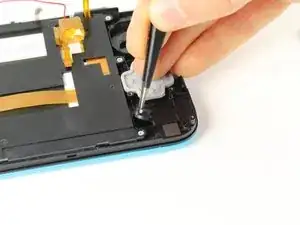

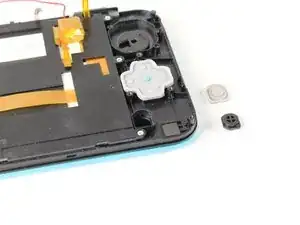

    • Using tweezers, lift out the button.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Tim Newman

Mitglied seit: 25/09/17

1432 Reputation

4 Kommentare

after assembly, pressing ZL causes some kind of an electric short, and the console turns off immediately, help !

mos_boum -

This usually occurs when you break the lower screen's power ribbon cable connector. It is not a ZIF connector and "unlatching" it will break it causing a loose fit. The shoulder button presses against the ribbon cable causing it to shift in the connector resulting in the speakers popping and the device turning off.

Mike -

OK. Lets say I can now change the buttons for replacement purposes only. My question is :where on the earth i can find buttons to replace??????

Robert -

Now there is a full set of keys for 2dsxl. If you can't find it, you can google kasynparts

kasynlife -
