If the device’s pump system has not been calibrated, first reference “Pump Leak Calibration” in the device’s Troubleshooting page. Reference this guide for failure of pump-related calibrations and pre-use check.
For more information on replacing the pump assembly, please refer to page 5-20 in the service manual.
Werkzeuge
Ersatzteile
-
-
Position the base assembly so that you may access it.
-
Using the #1 Phillips screwdriver, unscrew the four screws (SCR3219P in the photo) and the two screws (SCR3232P) securing the base plate.
-
-
-

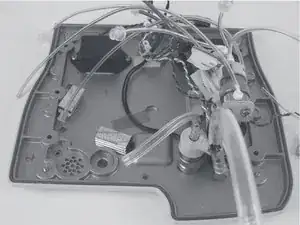

The base plate will then come apart from the rest of the device with the pump assembly attached to it, as depicted in the following photo.
-
Inspect pump assembly for any damage or looseness.
-
-
-
If damage is found, replace the pump assembly by removing each tube individually and replacing as needed.
-
To reassemble your device, follow these instructions in reverse order.
