Newport e500 Alarm Speaker Disassembly

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This guide will cover the removal and replacement of the alarm speaker inside the Newport e500. This operation will require a torque wrench and Philips screwdriver. The alarm speaker is located on the back panel. For more information refer to page 79 of the service manual.

  1. L2VAGhPFP3JYN6RE

    • Place device so that the top cover is facing you.

    • Open the top cover.

  2. mMO5UWiPEEusnf2o

    • Remove the four hex nuts and lock washers (two at each hinge) that secure the cover to the hinges on the left side of the pneumatic box.

  3. 1Gcna2hw5ZflJMNL

    • Remove the cover and set aside. Retain hardware for re-assembly.

  4. amMJtLa2yGSBScxB

    • Pull up and remove the flexible rubber exhalation outlet boot (push fit).

  5. PhCMBpjFCAgWYRK2

    • Disconnect the tubes from both sides of the flow sensor and the two tubes from the exhalation valve.

  6. paNFhHF3fxGRONcN

    • Pull the exhalation module straight up to remove it from the GDU.

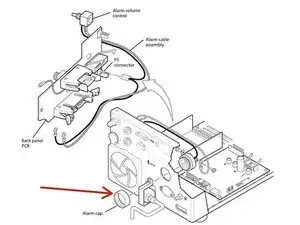

  7. VljISoMHiJEiuTtj

    • Unscrew the alarm retaining ring from the outside of the back panel; then pull the speaker from the inside of the back panel.

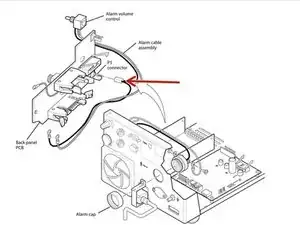

  8. o5iKLCDYIpRG4GYr

    • Disconnect the alarm cable assembly from P5 on the back panel PCB.

Abschluss

To reassemble your device, follow these instructions in reverse order.
