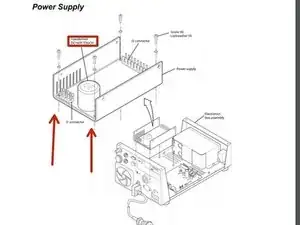

This step of removing the power supply needs to be done carefully. It is important to note that in no instance are you able to touch the transformer on the power supply. This could lead to permanent damage. For more information go to page 75 of the service manual.
Werkzeuge
-
-
Remove the four hex nuts and lock washers (two at each hinge) that secure the cover to the hinges on the left side of the pneumatic box.
-
-
-
Carefully place the GDU on its right side with the front of the GDU facing you.
-
Remove the three screws and washers at the top edge of the left side panel.
-
-
-
Remove the three screws and washers that secure the flow sensor cover to the pneumatic box assembly. Retain the hardware for re-assembly.
-
-
-
Remove the two screws and washers (back corners), one screw and washer (exhalation module support bracket), and two standoffs and washers (front corners) that secure the pneumatic (upper) box assembly to the electronic box assembly. Lift the Pneumatics Box and carefully tilt to one side.
-
-
-
Remove cables from connectors J1, J2, J3, J4, J5, and J6 on the main PCB (4 connectors are not shown due to being blocked by the side panel). Note the position of these connectors for re-assembly.
-
-
-
If not already detached, remove the heater cables from J5 and J6 on the DC-DC power supply PCB.
-
-
-

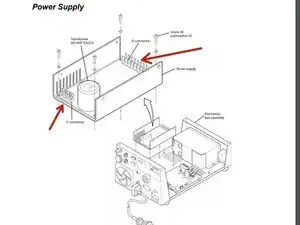

From the underside of the electronics box assembly, remove the four screws and lock washers that secure the power supply to the box assembly.
-
To reassemble your device, follow these instructions in reverse order.
