Nextbook NEXT7P12-8G Camera Replacement

Use the plastic opening tool to pry apart the front and back covers of the Nextbook

Continue prying until the front and back covers are completely separated. Use the suction cup if necessary to pull apart

We recommend using an extra plastic opening tool to maintain your opening

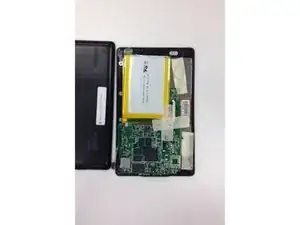

Once the front and back covers have been separated, set the back cover down and examine the interior of the Nextbook

Remove the various pieces of masking tape

Carefully peel the battery pack off, starting from the outer edges

It is held down by an adhesive going diagonally across the back

Removing the battery will allow you to access the screws holding the chip in place

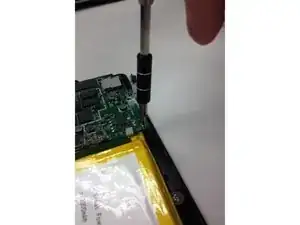

Use a 4.0 bit screwdriver to remove the screws from the chip

Remove the entire chip by severing small adhesive strips along the edges and pulling the chip away from the frame

Carefully peel away the black tape with copper detail that is holding the chip to the device

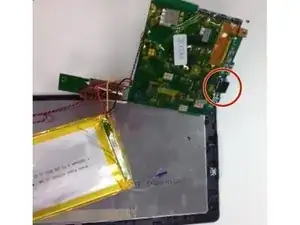

Locate the camera

The camera will be a small black square directly behind the camera lens visible on the front side of the Nextbook

Pry the camera out of the front cover with the plastic opening tool

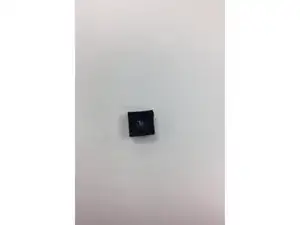

Replace with a spare camera piece
