Einleitung
If you have a cracked glass or a poor sensing touchscreen, they need to be replaced. This guide will take you through the steps to replace the display assembly which consists of the screen and glass as one component. You will begin by removing the battery, then the motherboard, and finish with the display assembly. The most difficult part will be removing the back cover, so please follow the steps carefully. The entire process is moderately difficult and will take you approximately 31 minutes to complete.
Werkzeuge
Ersatzteile
-
-

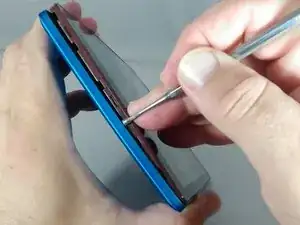

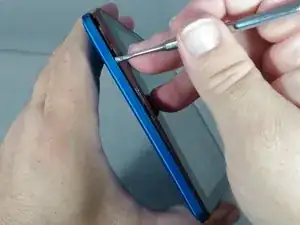

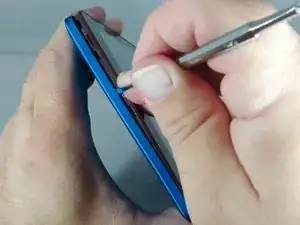

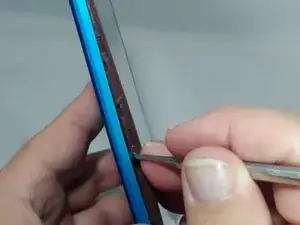

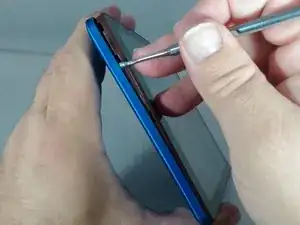

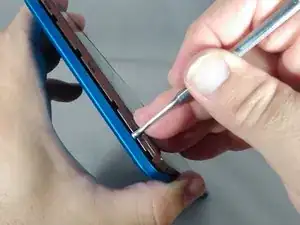

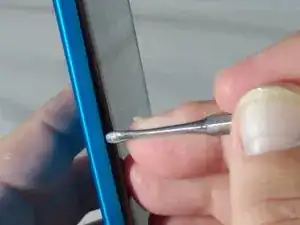

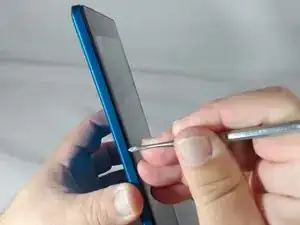

With the tip of the thin metal spudger in place, use a prying motion to work the spudger down the side to the corner of the device.
-
-
-

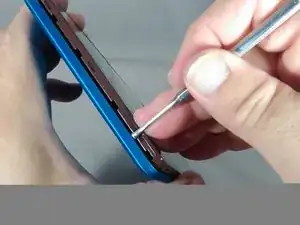

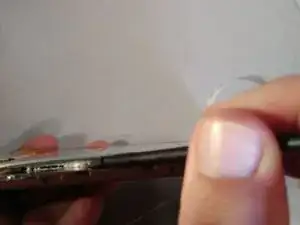

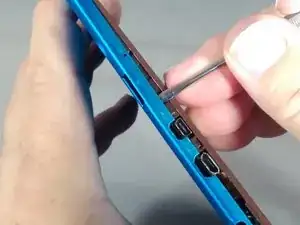

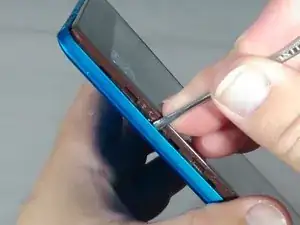

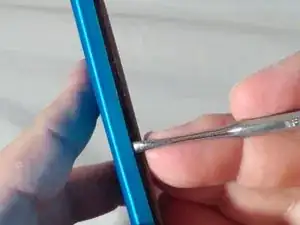

Continue working the spudger downward and pry with the spudger until the bottom left-hand corner of the tablet is reached.
-
-
-

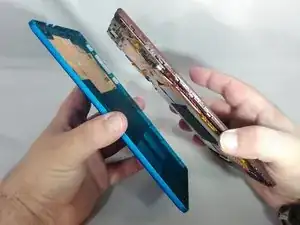

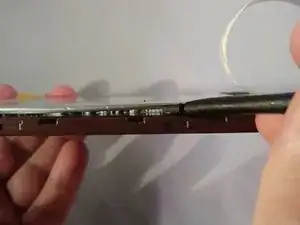

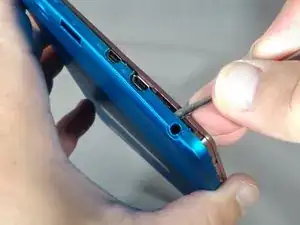

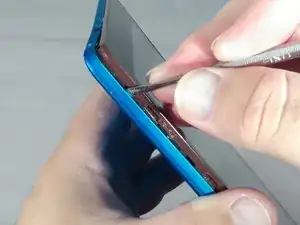

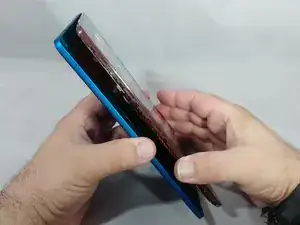

Along the bottom of the tablet, keep using a working and prying motion with the spudger to loosen the cover.
-
-
-

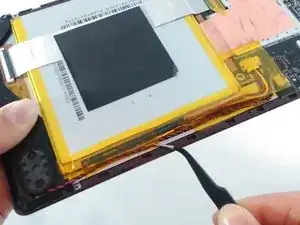

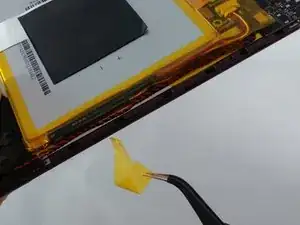

Locate and carefully remove the yellow cellophane tape from the red and black speaker wires that connect the speaker to the edge of the motherboard.
-
-
-

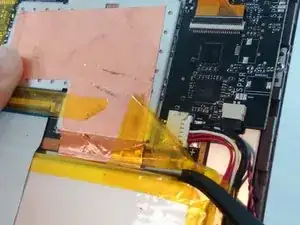

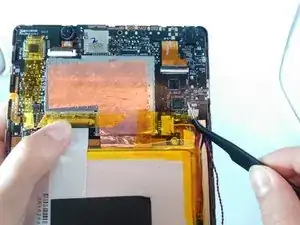

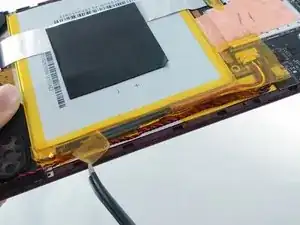

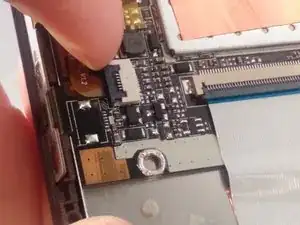

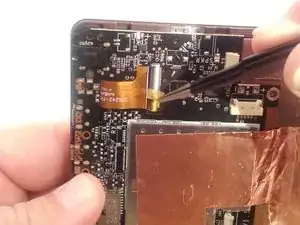

Locate and carefully remove the yellow cellophane tape with tweezers from the battery connector and black and red speaker wires on the edge of the motherboard.
-
-
-

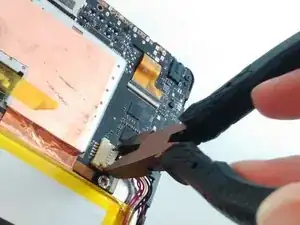

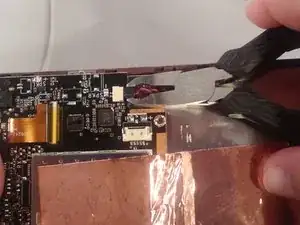

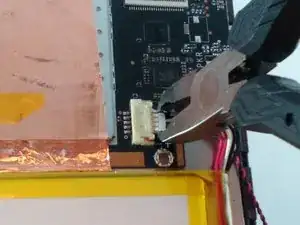

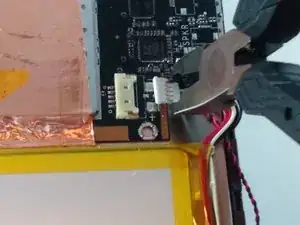

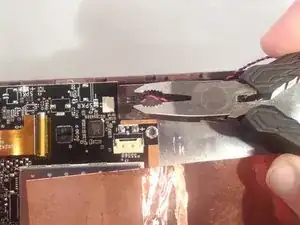

Using small pliers, carefully disconnect the male battery connector from the motherboard.
-
-
-

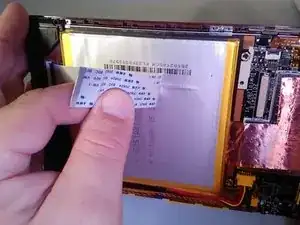

Carefully remove the gray square pad glued to both the white ribbon cable and the battery by pulling slowly.
-
-
-

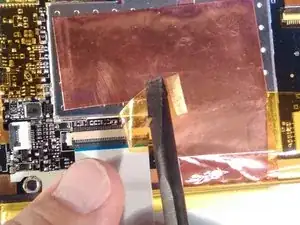

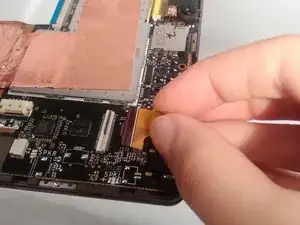

Locate the white ribbon cable Zero Insertion Force (ZIF) connector between the battery and the motherboard, and peel the yellow cellophane tape off the connector.
-
-
-

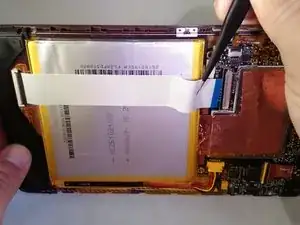

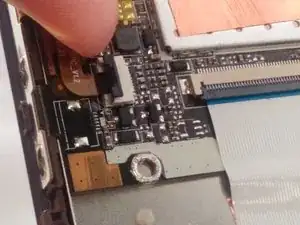

Flip up the gray retainer clip on the white ribbon cable ZIF connector on the motherboard with your fingernail. If you do not have fingernails long enough, carefully use a black plastic spudger.
-
-
-

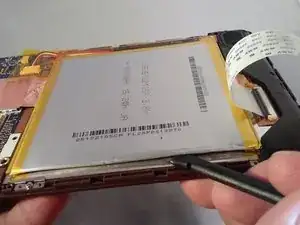

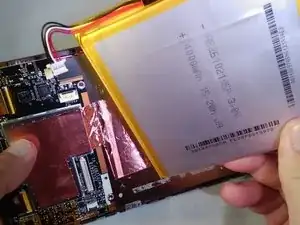

Move the spudger in a left-to-right scraping motion to loosen the glue until the battery is separated from the tablet.
-
-
-

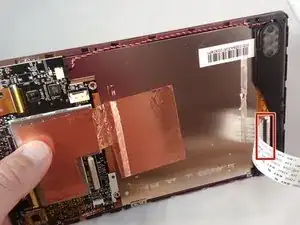

Locate and remove the yellow cellophane tape from the display assembly ribbon cable ZIF connector.
-
-
-

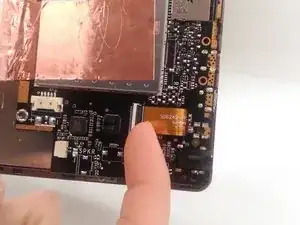

Flip the ZIF connector retainer up with your fingernail. If you do not have fingernails long enough, carefully use the black plastic spudger.
-
-
-

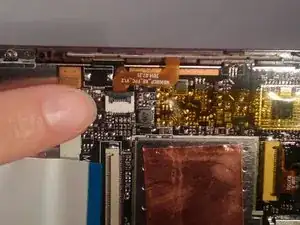

Locate the Display Assembly ribbon cable ZIF connector, and using tweezers, remove the yellow cellophane tape.
-
-
-

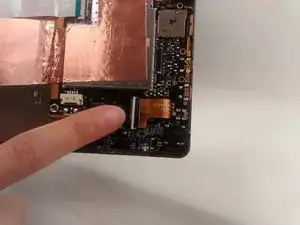

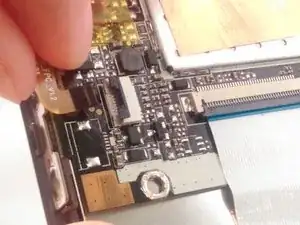

Put your fingernail under the gray ZIF connector retainer and flip the retainer up. If you do not have fingernails long enough, carefully use a black plastic spudger.
-
-
-

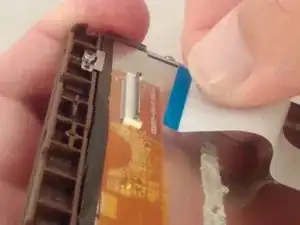

Use small pliers to pull the connector, wiggling it a little as you pull it from its connection.
-
-
-

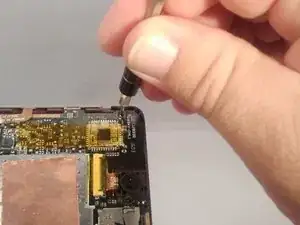

Using a J00 screwdriver, remove the 4 black 4.0 mm screws.
-
There is no screw at this location.
-
-
-

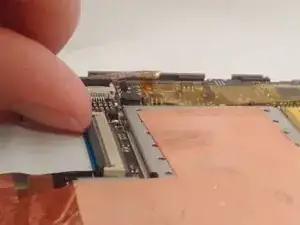

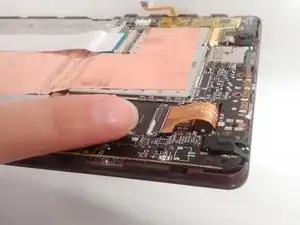

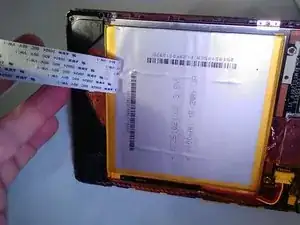

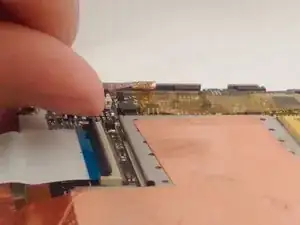

To remove the white ribbon cable, put your fingernail under the gray ZIF connector retainer and flip the retainer up.
-
-
-

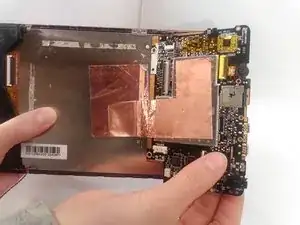

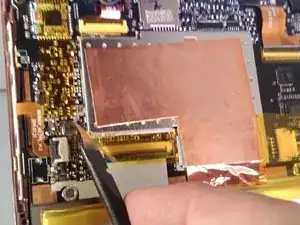

Pull the motherboard back over the copper tape to tear the tape and remove the motherboard.
-
-
-

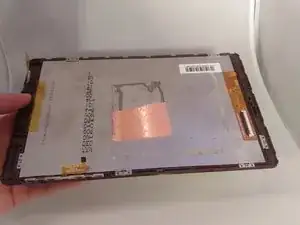

Remove the remaining copper tape from the back of the display assembly and the motherboard.
-
-
-

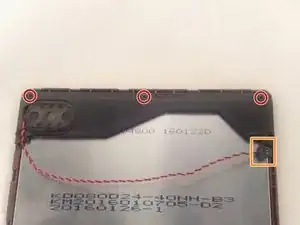

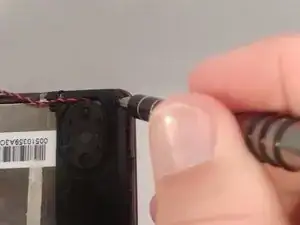

Locate and remove the 3 black 4.0 mm screws on the speaker panel using a J00 screwdriver.
-

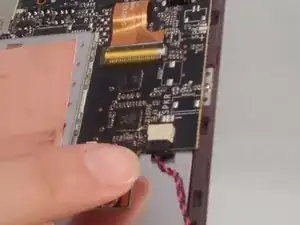

Disconnect the speaker from the motherboard.
-

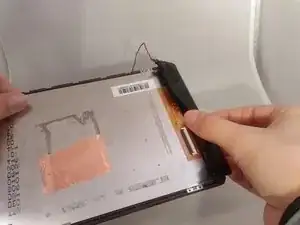

Remove the panel.
-
To reassemble your device, follow these instructions in reverse order.
