Nextplay NP109CR Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. kQluIIscSQHQBNwS

    • Turn the device over so it is upside-down.

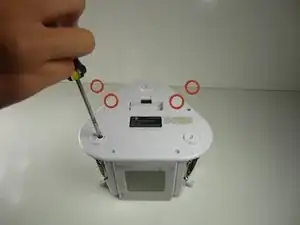

  2. 3wRbT5Cb3RVYAJ2I

    • Unscrew the 4 screws closest to the screen.

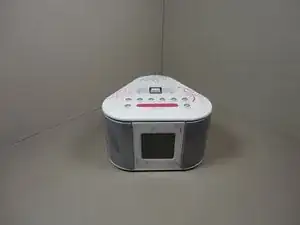

  3. BI3xgWQvnVAyAjJC

    • Flip over the device so it is right side up.

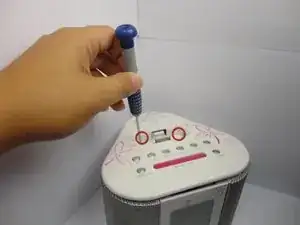

  4. PcDCSmbs4f2MgWsN

    • Unscrew the 2 screws on the top of the device, next to the docking plug.

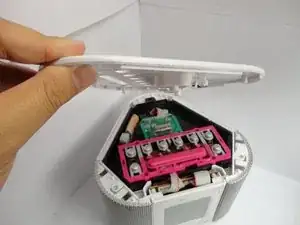

  5. ERCYNEUAqbJrluCx

    • Take off top piece by using slight force and pulling off.

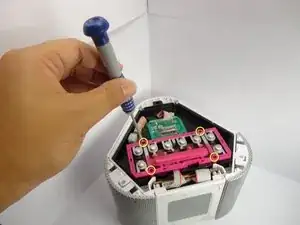

  6. EvFnMlQO1JpNDyW1

    • Unscrew the button board with smaller screwdriver.

  7. W3qgwLw2PAAYiZWf

    • Lift off the button board.

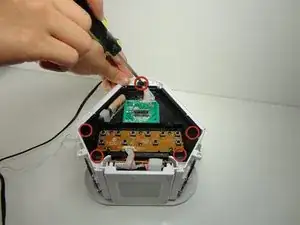

  8. t1tuxI4Eb5alqNen

    • Unscrew all visible of the screws on the black logic board cover with the larger screwdriver.

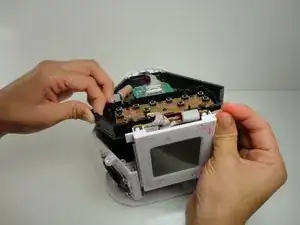

  9. rGxaoNjPTUsJRPKE

    • Lift the screen vertically straight up.

    • As you do this the logic board should move off with it.

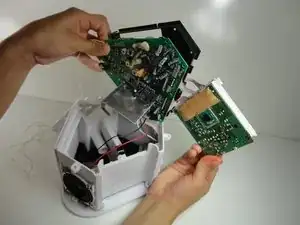

  10. JRagCKpXwtWWTkJU

    • Flip the screen and the logic board over to the right side.

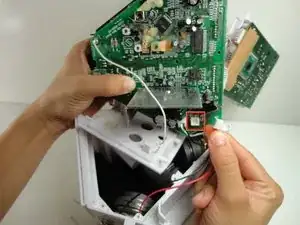

  11. PSlCefSnvKBrJrjf

    • Pull out the white plug that goes from the speakers to the logic board.

    • Then plug back in making sure it is completely connected.

Abschluss

To reassemble your device, follow these instructions in reverse order.
