Nexus 10 Display Replacement

Geschrieben von: Benjamin Troller
  • Kommentare: 12
Nexus 10 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

Keine Schätzung

Einleitung

  1. FG1SaTYGxZixgZLT
    FG1SaTYGxZixgZLT
    EB2IJBqbF1uXjFAp
    DUQxEdHpr1UhCB14

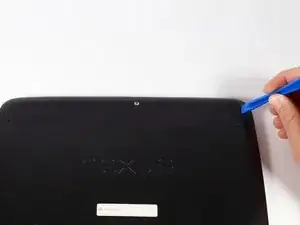

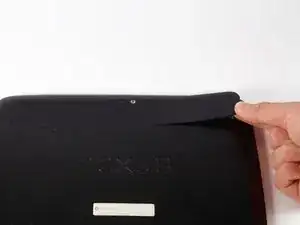

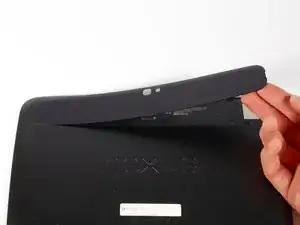

    • Using a plastic opening tool, remove the thin plastic cover from back of the tablet by prying up from its small tab.

  2. 3aAbwRmmAsuAmKNY

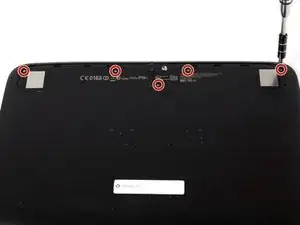

    • Remove the five 2mm screws on the back of the device using a PH00 screwdriver.

  3. p4VYD3HfpyPhdWVl
    p4VYD3HfpyPhdWVl
    TZAnCmBvJhj1TB4O
    R4pUJKjKWDagSMkT

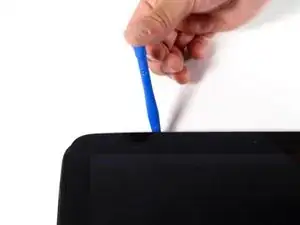

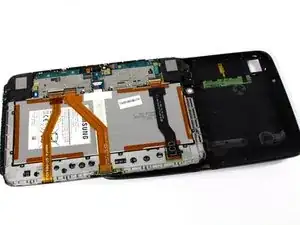

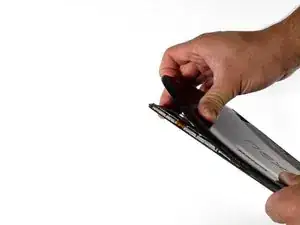

    • Pry the device apart by inserting a plastic opening tool in the seam between the plastic backing and display assembly. Use the tool to unclip the plastic tabs in between the backing and the display.

    • Pull the the plastic backing off the display assembly using your hands.

    • Do not do this step with only your hands. You will require a significant amount of force to separate the device.

    Be carefull with the power button cable. Don’t insert the plastic tool in this zone

    Jesus Garcia -

    Some instruction guides also suggest optional use of a suction cup with which to tug on the glass while separating the plastic backing. I found this helpful. Also, if you have a spudger of more rigid plastic, use that one here. My blue spudgers got chewed up pretty badly during this process.

    Jim -

    I found that the top right (looking at the screen) doesn’t have any corner clips, just a metal antenna (?), so it is easiest to get this corner popped first and then work your way around. The bottom corners have clips which are tough to undo.

    Jeremy R -

  4. QDQLeUGqZurWWEZN
    QDQLeUGqZurWWEZN
    vaUDGoR1HFCHxDK5
    pJwb4BhNaAhCd2P1

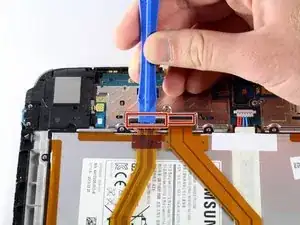

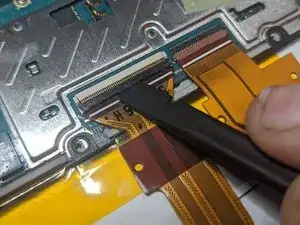

    • Detach the three connector ribbons passing over the battery using the plastic opening tool.

    The left two connectors flip up from the cable side. The right connector flips up from opposite the cable.

    Glenn Davis -

    Note that you don’t just pull the ribbons out. There is a clamp on each connector that needs to be prised opened, releasing the ribbon. This was helpful: https://youtu.be/yru4k62qdEU?t=302

    Royston Shufflebotham -

    You sir, are a true humanitarian!!!

    Harold Gue -

  5. sJBBSDVK1a1ULvJJ

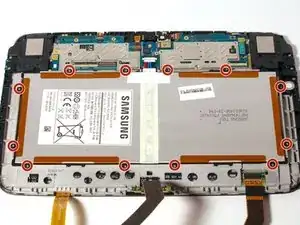

    • Remove the twelve 2mm screws around the perimeter of the battery with a PH00 screwdriver.

  6. 1g5XnTUEXdp32Fno
    1g5XnTUEXdp32Fno
    ANrGOLNAIGbnJbaa

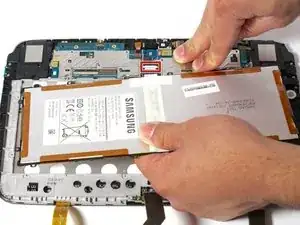

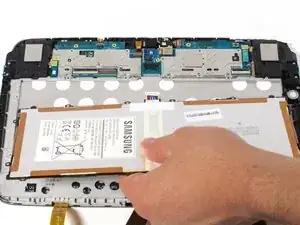

    • Disconnect the battery by lifting it upward and pulling it away from the connector.

    When reassembling reconnect the data ribbon cables first, then connect the battery connection last so that you’re not plugging in data lines while powered. Ideally you’d disconnect the battery first but that’s a bit hard with the design so you just have to try to ensure it’s switched off first.

    Andrew Whalan -

    Excellent with video

    Jim Scott -

  7. D5WjEppcTlRYrs4H

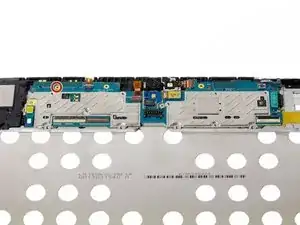

    • Remove one screw on the logic board with a PH00 screwdriver.

  8. 1KfMZVpukkpOlDRT
    1KfMZVpukkpOlDRT
    QPTHYK3shXZMAbqU
    lGqwUEQbwHVeChlJ

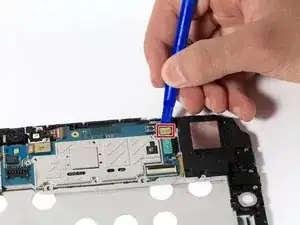

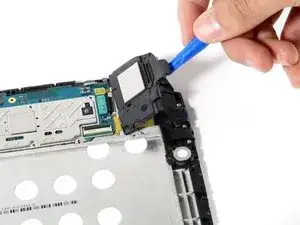

    • Disconnect right speaker connector ribbon from logic board.

    • Lift the speaker out by pulling up on its corner.

  9. nEKw6RmSqL2nRBky
    nEKw6RmSqL2nRBky
    Ft5xvCcNxPdMhUJ2
    UyIfuTXKOLvuUexM

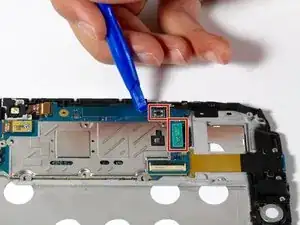

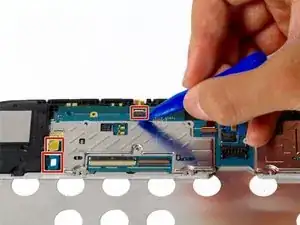

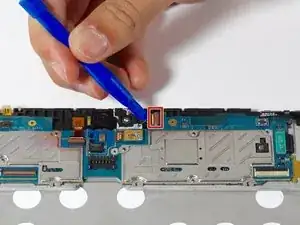

    • Disconnect connectors around the perimeter of the motherboard.

  10. s6V6Zk1XM3n3yyeE
    s6V6Zk1XM3n3yyeE
    D2DFJrY11lDVka5P

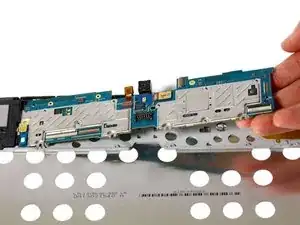

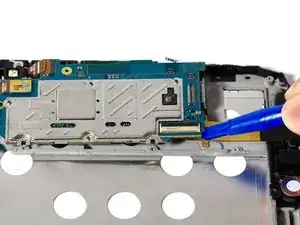

    • Remove motherboard by gently pulling upward under its corner.

  11. C6eWOhUbjaRlJECB

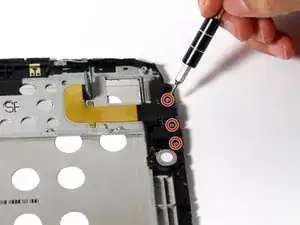

    • Remove the three 2mm screws along the right side of the device using a PH00 screwdriver.

  12. cS2VF3txtmmQYgG5
    cS2VF3txtmmQYgG5
    mvY6tcKnyJ6sDrTa

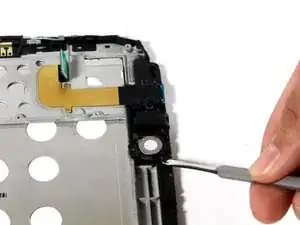

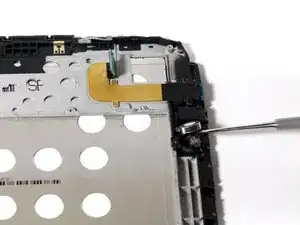

    • Unseat the small vibrator motor by gently applying upward pressure with a spudger.

    Expect some resistance when prying up on the vibration motor. There was some aggressive double sided tape under it and it was stuck pretty firmly.

    Jim -

  13. r6axpCLrBrw2jBxB
    r6axpCLrBrw2jBxB
    a1TiI1STUjIGJbRk

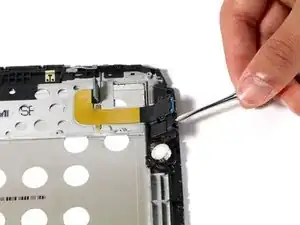

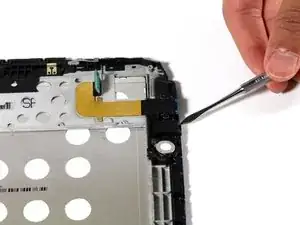

    • Lift the assembly by gently applying upward pressure with the spudger on the assembly.

  14. CAAWvUO2e4tnZGVT
    CAAWvUO2e4tnZGVT
    ZtAboPeTPrh3rGTQ

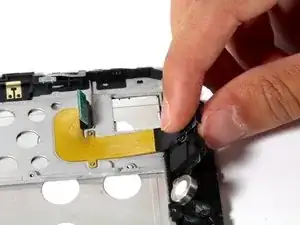

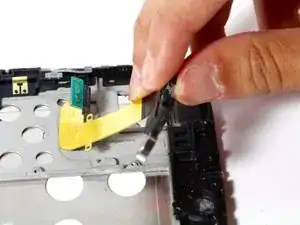

    • Gently pull battery-audio jack-USB assembly upward, detaching it from its adhesive.

  15. XU1SFmUqJ4SLosmL
    XU1SFmUqJ4SLosmL
    YZHH4Inl5YBuBMSx

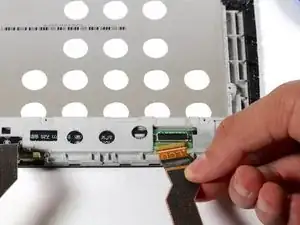

    • Detach LCD connector ribbon by pressing upward on connector latch using a plastic opening tool.

  16. HiLkDdgWcYxoPBgj
    HiLkDdgWcYxoPBgj
    KaUsPpCVCZyOACDq

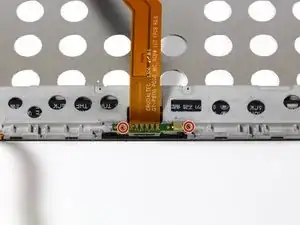

    • Unscrew the two 2mm Phillips #00 screws holding the ribbon in place.

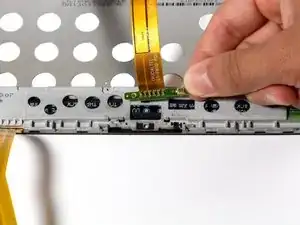

    • Remove the board by tilting it forward and pulling outward.

  17. nVJTlmymteR1JHwx

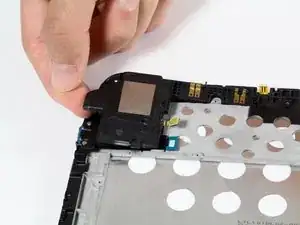

    • Remove second speaker by gently tilting and pulling upward.

  18. r6nrOnE4k2ipJIVV
    r6nrOnE4k2ipJIVV
    qBqe4XcEVbRf5lZn
    i3eRsgJ6bxcgnkfq

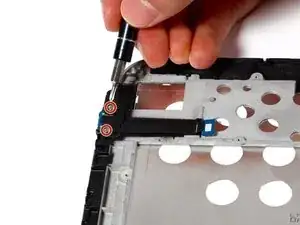

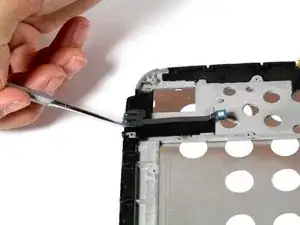

    • Unscrew the two 2mm screws securing the micro HDMI connector with a #PH00 screwdriver.

    • Remove the connector by liberally applying upward pressure.

  19. dtJrkHKeiXMVtauw
    dtJrkHKeiXMVtauw
    CIfkrYPxT6FHVAVr
    aMJd1SZoTliYGAmV

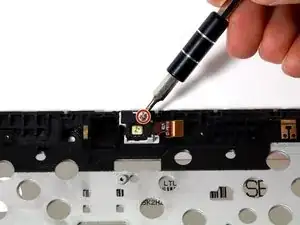

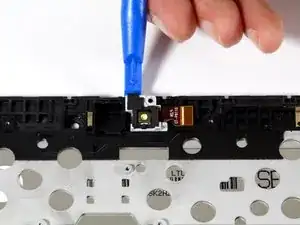

    • Unscrew the 2mm Phillips #00 screw that holds the flash enclosure.

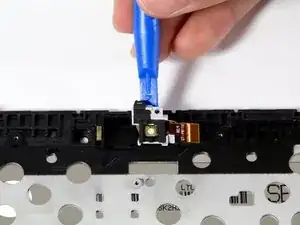

    • Remove the flash assembly with a plastic opening tool by lifting the assembly upward.

    Where can I buy Nexus 10 front glass, pls recommend.

    sandesh30715 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
