Nexus 10 Front Facing Camera Replacement

Geschrieben von: Benjamin Troller
  • Kommentare: 0
Nexus 10 Front Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

4 Minuten

Einleitung

  1. G4nZmlJ1V2ZyPSax
    G4nZmlJ1V2ZyPSax
    wblO5xoZvEOXZXIe
    VfVSEIPZgboTCZDP

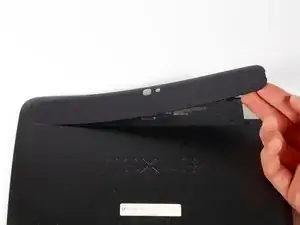

    • Remove the plastic cover located on the back of the device by prying off one side of the cover with a plastic opening device and peeling it back.

  2. CbabAVnGlVFhkmfy
    CbabAVnGlVFhkmfy
    iQZO4ruQmtK5jtiZ
    khU3bBTGOMSROQ1E

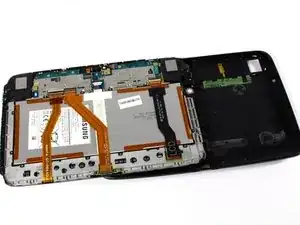

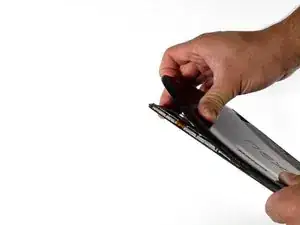

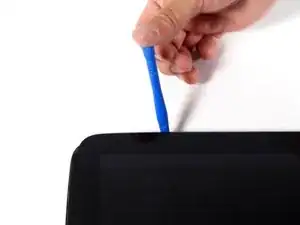

    • Pry the device apart by inserting a plastic opening tool in the seam between the plastic backing and display assembly. Use the tool to unclip the plastic tabs in between the backing and the display.

    • Pull the the plastic backing off the display assembly using your hands.

    • Do not do this step with only your hands. You will require a significant amount of force to separate the device.

  3. oA6gPfxZXNdTLlOq
    oA6gPfxZXNdTLlOq
    dxAMdA1GUDuQrLFg
    3jpIaVJOpQLZLcnF

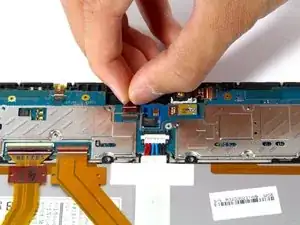

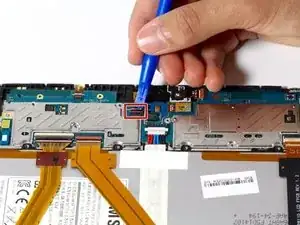

    • Lift latch on front-facing camera connector.

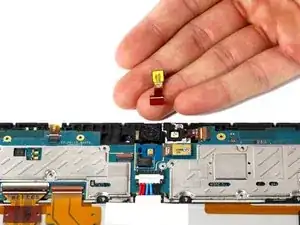

    • Pull the connector toward the top of the device and remove the front-facing camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
