Nexus 4 Power and Volume Button Replacement

Geschrieben von: Kaitlyn Jones

Kommentare: 11

Nexus 4 Power and Volume Button Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

5 - 10 Minuten

Einleitung

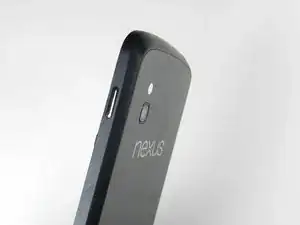

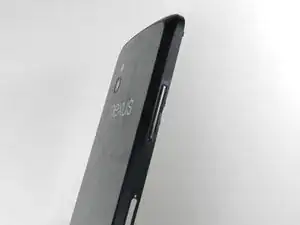

This guide details the removal and installation of the external power and volume buttons located on the right edge of the back cover.

Werkzeuge

Ersatzteile

Schritt 1

Power off the phone, by long-pressing the power button and touching Power off.
Remove the SIM tray using the SIM Card Eject Tool.
This step is required in order to remove the back case.

Schritt 2

Remove the two screws from the bottom of the phone with a T5 Torx Screwdriver.

T5? Mine needs a T6

keith.griffiths - 30/06/17

Mine used the T3, T 4 and 5 were way to big?

Michael Kelly - 29/09/21

Schritt 3

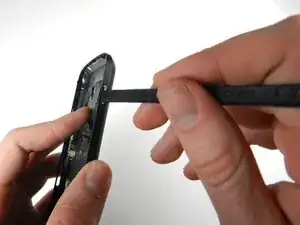

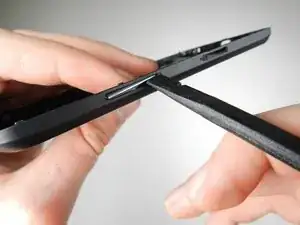

Gently open the back case by prying along the edge of the cover, starting at a corner of the phone and circling around the phone using a plastic opening tool.
The opening process may take a few minutes. The plastic will make a light snapping noise as the back cover separates from the rest of the phone.

Remove Sim Tray before opening the case, chance to broke the case with sim tray inserted.

sajishv -

Tried using the smaller opening tool first, but the tip broke off quite violently. Switched over to the bigger one and that worked a bit better.

Just be very patient especially around the corners.

coolspongebob92 -

Definitely need patience for this. Unfortunately, I broke one end of the plastic opening where the SIM card tray goes. Quite fragile right there, especially as you wrestle with the corner. I think it broke as one of the corners popped off.

Ahmad -

Seriously, you can use your nails to get a better grip and feel the snap before you break anything. My plastic opening tool didn't work as expected and left pieces of plastic inside the case.

castanedamiguel -

Sorry for my poor english, i'm french ;-). I change my N4 backdoor. I agree with the fact that you must be patient to remove the whole backdoor. At the beginning, it's easy to open a breach, but to remove the entire backdoor, i take less than 10 minutes. I break an opening tool, i use my nails, and with my last plastic opening tool, i turn around the phone and i finally full open it. So be patient and do not force. Thx I fix it !

Siegfried Akougna -

hi, i have replaced my screen but have snaged the white wire i can now not get any signal thing i need a new wire, it came out of the little gold thing that gribs down

cameron - 15/07/14

So great to have these instructions. I ended up using a credit card and slid it in between the case and cover. I started on the bottom side where it was loose, forced it to the corner. when it popped up I kept sliding it around. I did that all the way around and then used the tools to lift if up.

Matthew Schmidt - 14/05/15

I found out that the bottom right corner (looking at the screen) is easiest to start from. Be very careful near the buttons and the sim tray, the plastic gets easiely deformed there. Took me quite a long time and lots of patience to not break anything.

Matti Eskelinen - 05/12/15

Just in case you've never opened such a compact, tightly snapped device before (such as me): Just attempt to insert and _slide_ prying tools and an old plastic card around the case for a few times, it appears the case will eventually separate more or less "on it's own" if you keep doing this. Attempting to visibly PULL the case off edge by edge does NOT help (I just spent almost an hour to figure out that attempting to use the tools like a crow bar does not yield any viable result despite looking good at start). Apart from unnecessarily warping the case, attempting to pull the case off may also result in the case getting stuck on the power button - you want to avoid that...

Also check that all button "pins" are still there when the case separates; for me the power button "pin" (the external plastic springy bar) came loose and needed to be reattached.

Daniel Neugebauer - 22/11/16
