Nexus 5X Rückkamera austauschen

Geschrieben von: Isaiah Schultz
  • Kommentare: 19
Nexus 5X Rückkamera austauschen

Schwierigkeitsgrad

Sehr einfach

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

  1. ICCoMW16jfCrFbcn
    ICCoMW16jfCrFbcn
    sQxCgO3CGWjyHP2m
    MDAUADr5BeVSLDZl

    • Setze ein Plektrum in die Öffnung des SIM-Karteneinschubs und verdrehe es zur Seite, um die erste Plastikklammer zu lösen, mit der die Rückabdeckung befestigt ist.

    • Schiebe das Öffnungswerkzeug um die Oberkante des Gerätes, um die Plastikklammer zu lösen, mit der die Rückabdeckung befestigt ist.

    A guitar pick is a good substitution for the plastic opening tool.

    Sam Sippe -

    Here’s a photo of the location of the 18 tabs that hold the back cover in place

    Steve -

    Twisting sideways didn’t do it for me, but sliding along the edge did. However, at first I didn’t realize that the pick was between the motherboard and midframe, rather than between midframe and back cover like it was supposed to. This led to breaking off a spring-loaded connector on the motherboard, connecting to an antenna (I guess) in the back cover. So far I haven’t noticed any reception issues, but I can’t say for sure.

    In essence: be careful to get the pick towards the back cover, and not “straight in” under the midframe.

    Hampus -

  2. afVYqSRSsfYK5iHi
    afVYqSRSsfYK5iHi
    pIWZAi2MnVlPLqqa
    WCXoRcGIOO46lSW1

    • Schiebe das Plektrum um alle Seiten des Smartphones herum, um alle Klammern zu lösen, mit denen die Rückabdeckung befestigt ist.

  3. elaUMDhpoLaSyiLC
    elaUMDhpoLaSyiLC
    xC4oPmeXKWyCeJYD

    • Kippe das Plektrum, um die Rückabdeckung ein wenig anzuheben.

    • Beim Fingerabdrucksensor befinden sich noch zwei weitere Plastikklammern. Löse sie, indem du die Rückabdeckung behutsam wegziehst.

    • Entferne die Rückabdeckung.

  4. SLBb5Cl3QMGTDxxc

    • Entferne die zehn 3,6 mm Kreuzschlitzschrauben #000, mit denen der Mittelrahmen befestigt ist.

    Some models use a Y1 screw head.

    Kyle Wright -

  5. kbJbMKZvCYpi5Ym1
    kbJbMKZvCYpi5Ym1
    SBDl6Qt1OeRUcuOJ

    • Setze ein Plektrum in den SIM-Karteneinschub ein. Drehe es zur Seite hin, damit sich die Kunststoffraste löst.

    The photo seems to show that the person is opening from the top, which is the opposite of your advice. So, just want to be clear.

    Robert Konigsberg -

    yes, open from bottom first... the pic above shows the finished product after reaching top of phone. I found it best to actually start close to the right of the usbC connector. Pushing inbetween the 2 tabs and up will release the shell.. then work clockwise.

    Chris Mayberry -

    Chris, your advice to start to the right of the usbC connector was excellent, thank you!

    Robert Konigsberg -

    I found that my middle panel was already broken at the narrowest part just to the left of the 2-D scan code on the battery, perhaps from some ham-fisted previous repair. This seems of little consequence, there do not seem to be any electrical connections running through this part.

    Wiley Sanders -

    After a long amount of prying, I discoved that, if used gently, a jimmy can really help get the plastic off

    Timothy Owens -

    I could not remove the cover with the opening tool but had success with the opening picks (the triangle parts). Just slide them under the cover and gently bend and twist the pick to release the cover from the locks. By the way: it’s perfectly normal for the bottom cover part to come loose from the top cover part. It’s designed that way (they interlock).

    Marco Miltenburg -

    Here’s a photo of the location of the 20 tabs that hold the middle assembly in place, and the pry angle needed.

    Steve -

    This is the scariest part but it is the same process of taking a bike tire off the rim: lift up one part of the cover then put a wedge under the lifted section to hold it up then continue around the frame lifting it up and holding it up with the blue picks. You’ll find that after you life the bottom you can wriggle free the rest by hand.

    The 10 screws came out quickly using the IFIXIT.com magnetic screwdriver.

    mcguinness.david -

  6. MPaVeGZ53Yant1bX
    MPaVeGZ53Yant1bX
    1EYFK4Jmr4ZkYCXc

    • Schiebe das Plektrum weiter um den oberen Teil des Mittelrahmens, um die Plastikrasten zu lösen.

  7. UnqADRuHrCdSINRZ
    UnqADRuHrCdSINRZ
    LfjUs6JGfUqrEVjA

    • Öffne mit dem Plektrum die Plastikrasten an der langen Kante des Mittelrahmens und an der unteren Kante.

    • Stelle sicher, dass die Rasten an der langen Kante gelöst sind. Der Mittelrahmen kann hier leicht brechen, wenn die Rasten nicht richtig abgelöst sind.

  8. A65jPFCZQIiwZlZb
    A65jPFCZQIiwZlZb
    CLJTmiqEsupw21Yg

    • Stelle sicher, dass alle Rasten gelöst sind.

    • Entferne vorsichtig den Mittelrahmen.

  9. caMDhBOQ6JdhtocD
    caMDhBOQ6JdhtocD
    xKVZQ4TWsbXgsLxh

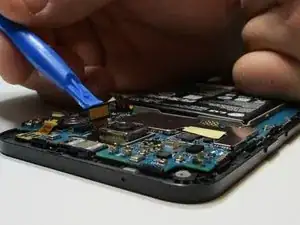

    • Platziere das Ende des Plastik-Öffnungs-Werkzeug unter dem Stecker, mit dem die Kamera an das Motherboard angeschlossen ist.

    • Drücke den Stecker behutsam nach oben, damit er sich vom Motherboard löst.

  10. 4GJbXnKbhNLaRSec

    • Nutze einen flachen Spudger, um die Kamera hochzuheben und vom Smartphone zu lösen.

    • Die Kamera ist festgeklebt. Wenn du Probleme hast sie zu lösen, nutze einen iOpnener, um den Kleber zu lösen.

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.

Tinte & Feder

Isaiah Schultz

Mitglied seit: 16/01/16

4793 Reputation

7 Kommentare

Hi! I just replaced the entire screen panel on my Nexus 5x because it stopped working (it flipped 180* the screen and the image it showed was mirrored -- completely impossible to use the phone). I read several reviews describing the same issue and fixing it by replacing the screen panel. Now I'm having issues with the camera. The front camera works, but the back one doesn't. I reopened the phone to check it was plugged in correctly to the motherboard, and it was. Is there a way to figure out if it's the actual camera that's not working or if it has something to do with the motherboard?

Thanks! -MJ

mariajrodriguezotoya -

Hello,

I replaced the back camera, but unfortunately the autofocus of the new camera does not work. All pictures are blurred. When I open the camera-app a "click-noise" can be heard. I also installed 3rd-party app, which has the option to change the focus manually. But that did not work as well. I also did a secure boot, but that also did not solve the problem. Do you have an idea, what I can do?

Thanks in advance,

Klaus

Klaus M. -

Hello,

just an update for my former question: I exchanged the camera-module again and now it is working. It seems, that the other "new" module was broken!

Cheers,

Klaus

Klaus M. -

I had a similar issue. After replacing the camera, the auto focus wouldn't work anymore. I did not test it with a manual focus app.

After some research i found out that this could have been caused by a faulty connection of the ribbon cable.

I reopened the phone, detached the ribbon cable and firmly pressed it on again. Had to repeat this twice, and after the second time the camera is doing auto focus again!

bert.wijnants -

Anyone knows where to buy the OEM Back Camera for the Nexus 5x? The connector is broken after screen replacement.

Maybe you guys can help me,

Remy B

Remy B -

Here you are:

https://www.replacebase.co.uk/lg-nexus-5...

Kamil Jakubczyk -

Here you go:

https://www.replacebase.co.uk/lg-nexus-5...

Kamil

Kamil Jakubczyk -
