Nexus 6 Display Einheit austauschen

Geschrieben von: Marina Moore
  • Kommentare: 42
Nexus 6 Display Einheit austauschen

Schwierigkeitsgrad

Mittel

Schritte

9

Zeitaufwand

10 - 40 Minuten

Einleitung

Diese Anleitung zeigt dir, wie du den Bildschirm des Nexus 6 wechselst.

  1. Lo4WNid1IIoiskat

    • Verwende ein SIM-Karten-Auswurfwerkzeug (eine Büroklammer funktioniert auch), um in das Loch am oberen Ende des Gerätes zu drücken und die SIM-Kartenhalterung zu entriegeln. Dies sollte nicht sehr viel Kraft erfordern.

    • Entferne die SIM-Karte und die SIM-Kartenhalterung.

  2. PrHyDptGtZjnSp6k
    PrHyDptGtZjnSp6k
    PPlMTgZXAsQBrqec

    • Lege ein weiches Tuch auf deine Arbeitsfläche, um Kratzer auf dem Bildschirm zu vermeiden.

    • Verwende ein Plastic Opening Pick, um das Rückgehäuse aufzuhebeln.

    • Achte auf das Power- und Lautstärkekabel, auf der linken Seite direkt neben den Lautstärkereglern. Das Kabel liegt offen und könnte mit dem Werkzeug beschädigt werden.

    • Nimm das Rückgehäuse mit deinen Händen vorsichtig vom Rest des Geräts ab. Da das Rückgehäuse leicht verklebt ist geht dies schwerer als gedacht – wunder dich nicht, wenn sich das Rückgehäuse dabei leicht biegt.

    • Vielleicht benötigst du sogar einen iOpener, um den Kleber zu lösen. Schau dir für mehr Infos diese Anleitung an.

    • Du kannst einen kleinen Saugnapf verwenden, um das Rückgehäuse leicht anzuheben und das Plastic Opening Pick darunter zu schieben.

    Dave Lee on YouTube has a much more helpful note on removing the back cover. That video is available at: https://youtu.be/Yk1CGk0TZAw?t=1m20s

    Taylor Says So -

    the adhesive is actually quite strong (mild is the wrong term here), even after lots of heat I still struggled to remove the back cover easily. BE CAREFUL of the volume/power flex cable at the side and top left, it is completely exposed when you attempt to pry the back plate off. I got lucky.

    Andrew -

    I would recommend using a utility kniofe (make sure you have a new blade) to pry open the back case just a bit, and then slide in a playing card, fingers, pick tool or whatever else you have.

    The YouTube video note about sticking a needle through a hole in the SIM slot would have worked fine if I had a needle...

    Ada m Lacey -

    I was able to use a spudger to get around the tape. If it is really bad you can use a hair dryer if you don't have a heat gun to help loosen the adhesive.

    Ryan -

    After removing the sim card, note the hole near the edge angled toward the back cover. Stick the sim removal tool (or a strudy earring post if not long enough) to start off the back cover removal process.

    Lindsay -

    I second the method of getting the back off by inserting an appropriate shaft through the hole just inside the sim slot. I had zero success using suction cups or trying to get something into the edge at the bottom, but very easily pushed on the back from the sim slot hole enough to get a plastic spreader in. The YouTube video by David Lee shows this.

    Jan Bottorff -

    I used the iOpener and some plastic prying tools. Took me a solid 2 hours to get the back case off and the battery free from the midframe. No problems, and everything worked fine, but people should be aware that “15-20 mins” is wildly optimistic for your first attempt at this.

    Pete -

  3. 24dIF6ZlMcKMNSd3

    • Entferne die 22 2,3 mm Torx T3 Schrauben.

    The screws are T4. Not T3. I just performed a battery replacement on my Nexus 6 5/15/2017. All 22 screws are T4. Even the one holding the volume and power buttons in place.

    Ryan -

    Right. while possible with a T3, it grinds out the center of the screws, making a hassle for the next guy who has to get in there. T4 feels secure.

    Thor -

    Thanks for the heads up. about to start the surgery on the old baby. Turns out that on my phone its T3. Makes me wonder if they varied the screws from batch to batch at the factory, certainly looks like it

    mrdamnslow -

    If you're using iFixit's tools then T3 should be the correct size, but T4 may work as well. There's probably a bit of variance in the sizes and manufacturing tolerances depending on who made your tools. Bottom line, try a T3 and if that doesn't feel right, move up a size (which is a good rule of thumb for any screw you encounter).

    Jeff Suovanen -

    my T4 drivers are too large. T3 has always worked for me on the back panel.

    Steve B -

    I got this kit: https://www.lowes.com/pd/Kobalt-73-Piece... as I thought I had bits small enough already, so didn’t order them with the battery. Rather than wait for shipping after finding out I was mistaken, I just ran out and grabbed this since it had T3 and T4 (nothing else I found in store or online for Lowes or Walmart did).

    The T3 bit fit all my screws snuggly; the T4 bit was too big. So clearly, this is a “YMMV” based on the screws either being different depending on manuf. batch, or based on different tolerances between bits. Hence why I linked the exact one I used (Item #856840 @ Lowes).

    Tim Fisher -

    After you take out the screw by the buttons, the retainer bar and buttons can fall out. I recommend you just explicitly remove the button retained and buttons, so they don’t fall out unexpectedly.

    Jan Bottorff -

    I tried T3, and then T4. Both of them stripped most of the screws. The screw quality is garbage. Just a heads up for anyone looking to try this. If your phone has over-tightened screws like mine, you’re SOL. I managed to get 5 screws out from the 22 total.

    PORTER LYMAN -

    Really wish these comments were made more apparent when going through this guide, had 18 screws come free with T3 just fine, ended up with 5 that stripped the instant I turned my driver once with T3, T4 wasn’t enough to fill the gap, now they’re stuck and I’m out $75 from buying a new display for a device I can’t fix without last resort trying to Dremel a slot into the heads of these teeny tiny screws

    Zach Grooves -

  4. abdFFF6iMFgpmvnR
    abdFFF6iMFgpmvnR
    WEqOweE16wimtOBO
    YqBAIlIXRg1Qr4P3

    • Entferne mit einer Pinzette den Gummischutz unten rechts am Gerät.

    • Löse mit einem Spudger den freigelegten ZIF-Anschluss. Schaue hier für Infos, wie man ZIF-Anschlüsse löst.

    • Trenne die Akku-Seite komplett von der Seite mit dem Logic Board, indem du sie vorsichtig händisch auseinanderziehst.

    This step MUST also include a note to disconnect the power and volume ribbon cable and cover at the top left of the device.

    Taylor Says So -

    Hi Taylor. I just completed this guide and it was not required to disconnect the power and volume ribbon at this step. Both connected ribbon are part of the mid frame.

    Gaetan -

    Hi Gaetan, Taylor is right, you need to document that the power switch & volume connector (left top under the rubber) is to be disconnected from the motherboard when you disassemble. - Worse if you do not comment on it, this becomes an serious issue when you assembly the phone again! Most people will ignore the fact, they have to connect the cable again. Otherwise the power switch will not work. People will get mad, because they don't identify the root cause, why the phone does not start again), as the rubber does not show, the disconnected cable. It took my a least an hour before I worked through all connectors, after I already tried to run through all the 'Nexus 6 does not start' comments on the Internet, which aren't the root cause here.

    Michael Pirker -

    Yes, I realised this after I’d put the phone back together and the power and volume ribbon cable had been disconnected in the process without me realising it. My Nexus 6 is nearly 4 years old now but the phone is back to new! Thanks for the advice guys.

    Alistair B. -

    The bottom right cable is not a ZIF (Zero Insertion Force) connector, it does not have a latch, the connectors are little copper clips and the connector needs to be pulled with some force upwards to disconnect.

    Isak -

    This is definitely not a ZIF connector. Not only does it require a fair amount of force (relative to the connector size) to push on, it can be extremely stubborn to remove--especially with nearly two years of age on the fragile plastic available for pulling. There is a pull tab (of sorts) on the connector, but mine snapped right off. Luckily, the parts that are likely to break are all part of the battery assembly. The new battery comes with a new cable.

    Lampshade -

    To separate the battery section and motherboard sides you don't pull up the black swiss cheese plastic cover, just run your fingernail along the side in between the blue metal and the black edge of the screen.

    Kevin Edwards -

    thanks a lot kevin you saved me. This guide should be a bit more precise...

    guyom -

    As Taylor said, by the camera lens there is another rubber peice, take that out and disconnect that cable, and make sure to reconnect it afterwards. That cable connects your buttons to the mobo.

    Nick Myers -

    I did exactly everything described in this guide and my Nexus 6 front camera still does not correspond with the camera app. Is there something I am missing and is there anyone else with a similar problem to mine. I am thinking of cleaning the connector with rubbing alcohol or something similar.

    ajqwerty93 -

  5. xrsqAYBOgkdX3uYE
    xrsqAYBOgkdX3uYE
    oRLAXZYE2unJXqPg

    • Löse mit einem Spudger den kleinsten ZIF-Anschluss in der Mitte. Schaue hier für Infos, wie man ZIF-Anschlüsse löst.

    • Lege das Kabel mit einer Pinzette frei.

    It would be instructive to add that one needs to remove the whole ribbon assembly by lifting the whole thing from its semi-fixed position on the motherboard. I did so using the blunt end of a spudger to lift the two small flaps along the right edge of the motherboard and lifting the whole complex off the motherboard with tweezers.

    Taylor Says So -

    I need to replace my screen and digitizer. Can I do this using your instructions?

    Gabriel -

  6. yuAqKUQAnexhPThF
    yuAqKUQAnexhPThF
    UOVn6QQ54RKIQDTX

    • Löse mit einem Spudger den kleinsten ZIF-Anschluss in der Mitte. Schaue hier für Infos, wie man ZIF-Anschlüsse löst.

    • Lege das Kabel mit einer Pinzette frei.

    • Dieser Stecker und das Kabel sind mit einem Stück antistatischem Klebeband bedeckt. Löse erst das Tape leicht an, bevor du den Stecker aus dem Anschluss entfernst.

    This ZIF connector is covered in amber anti-static tape, which needs to be released from the connector side before the ribbon can safely be pulled free.

    Taylor Says So -

    The white/cream colored ZIF connector completely snapped off when I tried to close the connector after reinserting the cable. Be careful! Maybe I wasn’t gentle enough.

    Thomas Pack -

  7. 1SJTUIGp4UDLkH6R

    • Entferne die 2,3 mm Torx T3 Schraube an der Oberseite des Geräts.

    When removing this screw, does the aluminum bracket that’s sandwiched by the insert and screw supposed to fall off freely or does it stay on the motherboard?

    Jerry -

    The aluminum bracket fell off freely from my phone. You will notice the photo in Step 10 doesn’t show the bracket.

    Thomas Pack -

  8. AR1O5X1A4aEK4ysA

    • Ziehe das Logic Board mit deinen Händen weg vom Bildschirm.

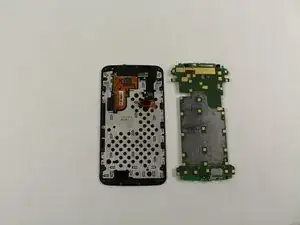

  9. RfoHMd1AIp4JtSOF
    RfoHMd1AIp4JtSOF
    oviiF4FVPnhKXwru

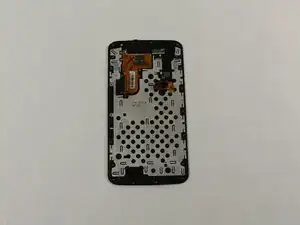

    • Trenne den Bildschirm vom Logic Board.

    Any chance of getting some further breakdown for the phones glass screen? In case someone happens to break theirs?

    jackacemonkey -

    Is it possible to remove the lcd from the glass?In case only my glass broke can i replace just glass alone?

    Jenzo Thomas -

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.
