Nexus 6P Ladeplatine tauschen

Hi,

I used a hair dryer (exhaust air about 60°C) instead of a heat gun: this temperature was sufficient to soften the glue. The plastic and glass cover could be removed without damage.

How I did it was to heat the plastic to around 65C (150F) with a hair dryer, then managed to get one of my metal prying tools in and under the edge to pull it up.

The Ifixit knife has a curved sharp edge. I used this edge in the middle of the outer long side of the lower cover and pushed it straight down. The natural curve in the now softened plastic allowed it to buckle/bend a little further. I then slowly rolled the top edge of the knife out and away from the phone. There was then sufficient gap to insert a Pick. Heat it again with the IOpener and then slide the Pick further in and along from end to end.

Used a fan on high heat. Worked great.

A heating pad works well for these steps

This has to be the hardest part. I really did not want to damage the glass. My phone has had a rough life and there is some minor damage despite having a double layer cover. I decided to prise the glass off from the end opposite from the camera after many unsuccessful attempts from near the middle. With the knife I was able to scrape the metal edge near the end of the glass cover - keep the blade facing out. With the metal out of the way the knife tip was able to get under the glass followed by a Pick. I heated it all up again with the IOpener heat tube. Using reflected light keep an eye on the bend in the glass. If you can see a bend then slow down and let the glue separate. The reward for patience is unbroken glass.

I had a really hard time getting under the glass using the iOpener. I just don’t think it got hot enough to really loosen up the adhesive. So, I got my wife’s hair dryer and used that. I put it on the highest heat and held it to the glass for a couple minutes. That loosened it up pretty well and I was able to get enough space to put in a prying pick. Once I got one of those in it was pretty easy.

The way I did this bit was to heat the glass up to around 70C (160F) with a hair dryer, then use a razor blade to get in under the glass, then used a playing card and pushed that along underneath the glass to seperate the glass from the body. I started with my razor blade at the curved edge of the glass on the side of the phone, rather than at the straight edge at the top as they show here, because it was a bit easier for me.

Nothing else in my toolkit had a fine enough edge to get in under that glass except for a razor blade. The gap is very small.

The good news is that my phone works fine. And it now has some battle scars that make it look like I repaired it. Let’s be honest: bragging rights are half the reason we tried this instead of buying a new phone anyway. My camera and flash still work, though the latter needed its lens glued separately.

The bad news is that I broke my glass. I started from the corner away from the camera, and about halfway along the width of the phone, the glass utterly shattered. It stayed together, so its coating worked. I used some scotch tape to further control the shards, and i slid a small flathead along under the top and bottom edges to scrape the glue. I think that would have been my technique in the first place if i had x-ray vision. I also would have started camera-side.

I think my mistake was not maintaining heat while prying. The glass started hot, but when it broke it was barely warm to the touch. I think If I had kept it hot, it would have been more flexible.

Best of luck, everybody.

There is a black plastic band around the front glass. So stick the razor between the metal back and outside of the black plastic that is around the front glass. If you look closely at the first picture you can see the black plastic strip outside of the front glass. If you stick it between the black plastic and screen you could leave the mid frame in the metal case and only lift up the the glass and screen.

Definitely try to get the knife as close as possible to the aluminum body. It will spare you damage to the plastic band… wish I would have read the comment before trying this myself… ah… and don’t get tricked by a possible space between the display and the plastic band it looks tempting to put the knife in there however that will possibly damage the plastic band. That’s where I thought I could get in between the display and the body and did damage my plastic seal. Btw, I got my device open from the left side away from the power and volume buttons.

I couldn’t even find room for the knife, ended up using a suction cup to lift the bottom left corner enough to get a plastic shim in. Worked around from there. Damaged a good deal of the plastic around the edge trying to get the knife in—would recommend just using a suction cup.

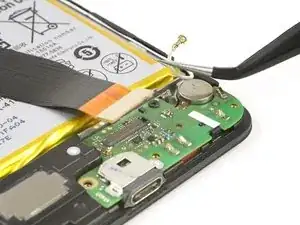

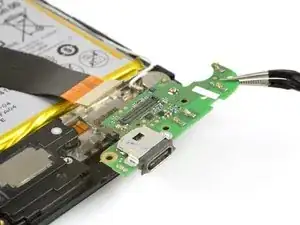

Check the color of the silicone gasket surrounding the USB type-C charging port. If the color of the gasket on the new part doesn’t match, swap the gasket from the old to the new. The gasket can accidentally be installed upside down, so check the pictures for correct orientation. There are spring-like contacts on the underside of this board, so when the replacement board is installed, it will tend to lift itself up as though it is not seated correctly. Once the retaining screw is reinstalled, the apparent problem goes away.
