Nexus 6P Tochterplatine/Ladebuchse austauschen

Geschrieben von: Witrigs
  • Kommentare: 15
Nexus 6P Tochterplatine/Ladebuchse austauschen

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

Zum Glück ist die Ladebuchse an der Tochterplatine befestigt, der Austausch der USB-Buchse ist deswegen einfach. Folge dieser Anleitung und tausche sie selbst aus.

  1. lYerHI3Vf3owHVgW
    lYerHI3Vf3owHVgW
    43uNvqtTaoEmuNWD

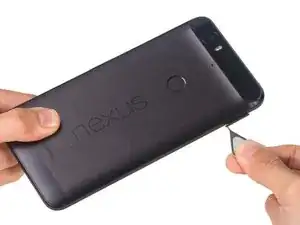

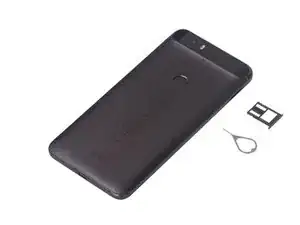

    • Entferne den SIM-Einschub.

  2. rZQIaMW1BTnTCITS
    rZQIaMW1BTnTCITS
    xmZ1NnyiEAprjEKW
    eJ1RmRZZcwsDAVeF

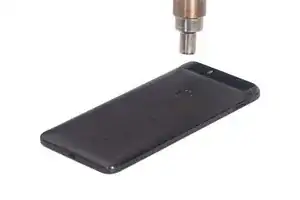

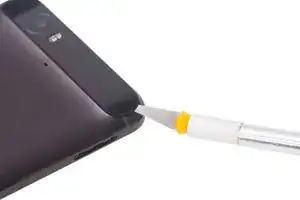

    • Erwärme das Glaspanel auf der Rückseite.

    • Öffne mit einem Cutter einen Spalt und durchtrenne den kräftigen Kleber unter der Glaspanel.

    • Sei beim Hebeln an diesem Teil sehr vorsichtig, das Glas bricht leicht und ist stark verklebt.

  3. W4MKYOUUYtYKqGjk
    W4MKYOUUYtYKqGjk
    JruTGhuSAtpNCdVQ
    macTWJfH3YyPI156

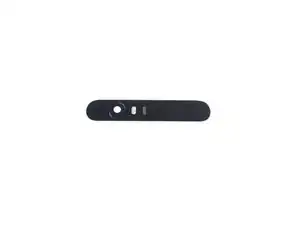

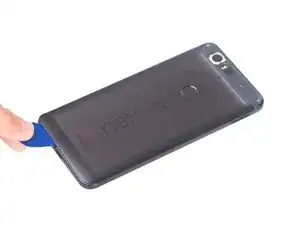

    • Erwärme die untere Kunstoffabdeckung.

    • Öffne mit einem Cutter einen Spalt und schiebe Plektren hinein, um den Kleber darunter aufzuschneiden.

  4. FIABaKUGkZhgGXDu
    FIABaKUGkZhgGXDu
    HwFjdQlHnyTV4Iog
    pSiuZLtNoWdgSeyB

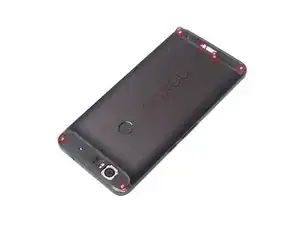

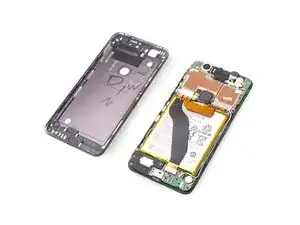

    • Drehe sechs Kreuzschlitzschrauben heraus.

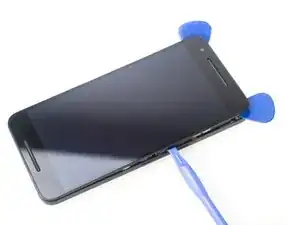

    • Trenne mit Plektren und einem Plastiköffnungswerkzeug die Fronteinheit von der Rückabdeckung.

    • Achtung: diese beiden Teile passen sehr eng ineinander. Das Trennen der Beiden ist die kniffligste Aufgabe. Du kannst auch probieren, sie mit einem kräftigen Saugheber zu trennen.

  5. tM4PAZQGIOLLf251
    tM4PAZQGIOLLf251
    sHtLUBG5PlEBHW2X
    GjGnCpE2xbyyaNLI

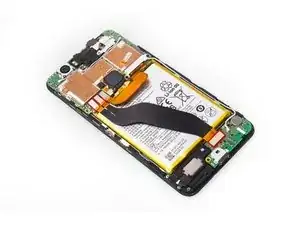

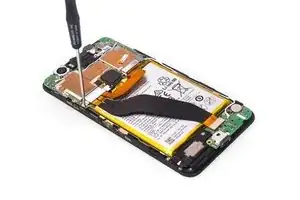

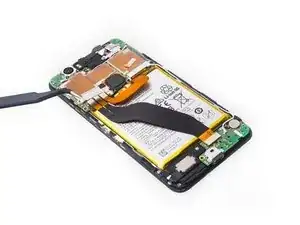

    • Drehe eine Kreuzschlitzschraube heraus.

    • Entferne die Metallhalterung von den Steckern der Flachbandkabel.

    • Löse drei Stecker vom Flachbandkabel und entferne es.

    • Dieses Kabel verbindet die Tochterplatine mit der Hauptplatine.

  6. vDbyDybG4PaHvmfq
    vDbyDybG4PaHvmfq
    1G2kYBhVX1gkPQaH
    TwNx4Ao54Iv3ZCOr

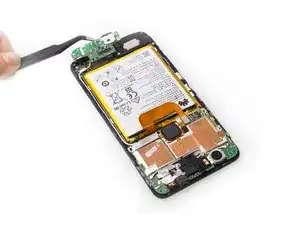

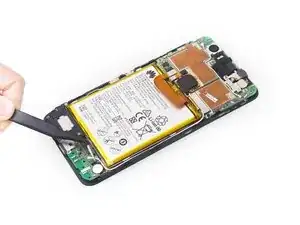

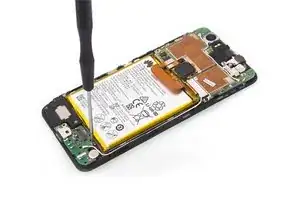

    • Löse den Stecker des Antennenkabels ab und drehe eine Kreuzschlitzschraube heraus.

    • Entferne die Tochterplatine.

  7. OCtpINGIcNQTEtuZ

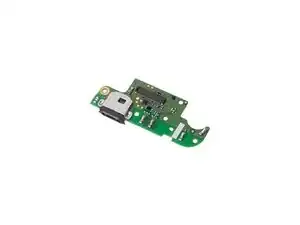

    • Hier ist die Tochterplatine mit der daran angeschlossenen Ladebuchse.

    Do you know where the main microphone is located? There's a microphone at the back of this board, but it's only used for noise cancelling?

    Tor -

    Hi everyone, I just replaced the daughterboard on my phone as my old charging port was faulty. The good news is that the phone now charges great but the microphone no longer works. I've double checked and I connected everything exactly as it was. Does anyone have any ideas?

    Sean T -

Abschluss

Um dein Gerät wieder zusammenbauen, folge den Schritten in umgekehrter Reihenfolge.
