Nexus 7 I/O Assembly Cable Replacement

Geschrieben von: Walter Galan
  • Kommentare: 46
Nexus 7 I/O Assembly Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

20 Minuten - 2 Stunden

Einleitung

Use this guide to replace the I/O Assembly cable (includes the headphone jack and micro-USB port).

  1. X5Ts2NpboWv1CrVs

    • In the following steps you will release the clips (highlighted in red) along the perimeter of the Nexus 7's rear panel.

    • Do not use excessive force while prying the clips. They can be easily broken.

    Mine doesn't look like this. There is no metal band around it. The only opening looks like its between the front glass and back which is on the front. I'm afraid to try it for fear of breaking it. Any suggestions?

    Kim McCauley -

    There is no front or rear panel. There’s no sign of any seam whatsoever. The front and back are one solid piece of plastic.

    Proud Liberal -

  2. GfNZgZXTDvoLusXy
    GfNZgZXTDvoLusXy
    anLmRNrUoNQWBKUY

    • Gently insert a plastic opening tool near the top of the Nexus 7 between the rear panel and the front panel assembly.

    • Carefully run the plastic opening tool along the top edge to pry the rear panel away from the front panel assembly of the Nexus 7.

    My Nexus 7 looks nothing like this. These instructions are horrible as they do not work.

    Andy Garcia -

    someone help? my nexus looks completely different

    Music Raider -

  3. WwtYTYZ2CAceGXng
    WwtYTYZ2CAceGXng
    53wRQHjFW23GmNT1
    jYpEiy4UnehyKoDM

    • Insert the plastic opening tool between the rear panel and the front panel assembly near the power button and pry up at several points along the right edge of the Nexus 7.

  4. XyWkGPoQkp2N3sRo
    XyWkGPoQkp2N3sRo
    kywiZcRePllXllUk
    cFluDH2DnBlOygwN

    • Pry up the rear panel along the left edge using the method described in previous steps.

  5. YMtnflWPHAXsTTiZ
    YMtnflWPHAXsTTiZ
    2YmqXWNHKoB6qB1x

    • Gently lift and remove the rear panel up off the front panel assembly.

  6. KPSU3Bq55IZSRIyl
    KPSU3Bq55IZSRIyl
    LvEv41KaObLIDhVE

    • Using the tip of a spudger, push first on one side then the other to "walk" the battery cable straight out of its socket on the motherboard.

    I have the newer version of Nexus and the battery connection inside is different from pictured here. I can't seem to get any part of the connector backed out. Any further details about how to accomplish this step?

    indianowen31 -

    After my post I tried it again, and realized the connector comes straight UP, not OUT. Once I went this direction, the process was simple.

    indianowen31 -

    I followed this, everything worked fine. Even though the battery is now charging, the OS doesn't recognise when the USB cable is connected to a wall socket or a PC. The battery icon when the tablet is shut down shows charging so it works, but the OS in itself doesn't seem to know about it...any ideas?

    /D

    Daniel Zakrisson -

    Thanks for your guide. It makes the process very straightforward. Easier than I was expecting.

    Les Gordon -

    Superb easy to follow guide. Thanks greatly, the nexus 7 lives on ! Just need to patiently wait for it charging now !

    stuart -

    Yes, this is a really helpful guide. I wouldn't have had a clue without it, but it all turned out to be very simple. Thanks a lot!

    Ian Gibson -

    I managed to break one of the two small golden pins to the right of the battery cable (obscured by the tool in the picture above).

    Is this terminal (sorry for the pun)?

    I tried re-assembling (without screwing the assembly back to the bezel) and the display doesn't work.

    gravelld -

    Step 6 could be much clearer. I thought it meant to pry the connector upward, away from the surface. When I did this, all the pins broke off. The correct procedure would appear to be to slide the connector along the surface toward the wire side and battery, leaving the pins at parallel to the surface.

    Unfortunately I don't think my Nexus 7 is salveagable now.

    Warren Harris -

    Watching a YouTube video helped. Dislodge the battery first, then pull the battery away from the connector and the connector will become dislodged quite easily.

    d_ratner_1999 -

  7. 3DVP6vtj2kVyyJtK

    • Peel back the copper ESD shielding covering the bottom of the motherboard.

    • Do not try to remove the copper shielding, as it is still attached underneath the battery.

    • If you're just replacing the micro usb charge port, there is no need to peel back the copper heatsink like in the photo, the speaker assembly can simply be moved out of the way once unscrewed. If the speakers are to be replaced simply peel back the bottom corner to expose the speaker connection. Leave the rest of the heatsink shield alone.

    Peel back the copper heat spreader for the Nvidia Tegra 3 processor

    Jack J -

  8. GGvCAXX5WDAeFPUH

    • Using the tip of a spudger, push the speaker cable straight out of its socket on the motherboard.

  9. CmVHcfCsF54XcC6G

    • Remove the following screws securing the speaker assembly to the display assembly:

    • Two 4.25 mm black Phillips screws

    • One 3.2 mm silver Phillips screw

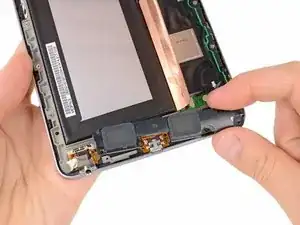

  10. TaLMsqFiJZM2MAKo

    • Lift and remove the speaker assembly out of the Nexus 7.

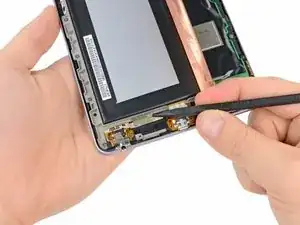

  11. UZeiYEXPKQO3yNcg
    UZeiYEXPKQO3yNcg
    SqtTsCC4AcJofw1d

    • Use the tip of a spudger to peel back the cloth tape covering the headphone jack and the I/O assembly cable.

    • There is no need to completely remove the tape. Just peel it back enough so that the tape is only adhering to the ribbon cable and not the metal frame.

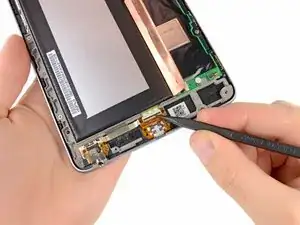

  12. WLn3WySDUTs2JlmN

    • Use the tip of a spudger to flip up the retaining flap on the I/O assembly data ribbon cable ZIF socket.

    • Be sure you are prying up on the hinged retaining flap, not the socket itself.The hinged retaining flap is the black piece which flips up easily with the spudger.

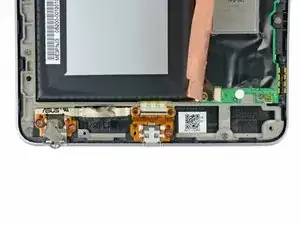

  13. 2ji2E5RE1TB1M3KJ

    • Remove the following screws securing the I/O assembly cable to the Nexus 7:

    • Three 3.2 mm silver Phillips screws

    • Two 2.3 mm black Phillips screws

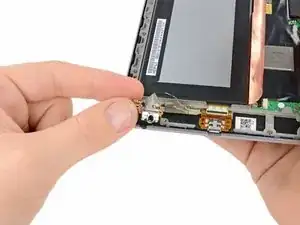

  14. OXtkNUZs4p5LmLDS

    • Without stressing the cable, and minding any tape that may still be holding the cable in place, gently lift the headphone jack up off its placement pins.

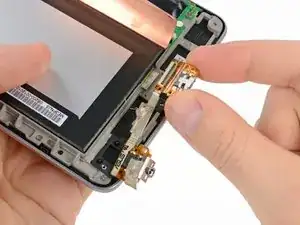

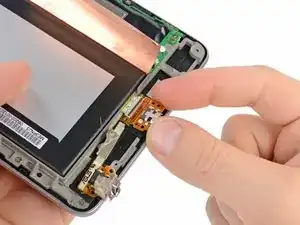

  15. HjSoV1vpORu3SPbi
    HjSoV1vpORu3SPbi
    InUBDt44Cg64pvUD
    LrQYFfiQGrpt4oyJ

    • In a similar fashion, lift the micro-USB port up off its retaining pins.

    • Lift and remove the I/O assembly cable out of the Nexus 7.

Abschluss

To reassemble your device, follow these instructions in reverse order.
