Nexus 7 Kabel zur Einschalttaste und Lautstärkeregelung austauschen

Geschrieben von: Walter Galan
  • Kommentare: 21
Nexus 7 Kabel zur Einschalttaste und Lautstärkeregelung austauschen

Schwierigkeitsgrad

Mittel

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

Diese Anleitung zeigt dir, wie du das Kabel zur Einschalttaste und Lautstärkeregelung austauschen kannst.

  1. X5Ts2NpboWv1CrVs

    • In den folgenden Schritten wirst du die Klammern (in rot hervorgehoben) lösen, die sich um den Rand der Rückabdeckung des Nexus 7 befinden.

    • Wende keinesfalls übermäßige Gewalt an, leider brechen die Klammern leicht.

    Mine doesn't look like this. There is no metal band around it. The only opening looks like its between the front glass and back which is on the front. I'm afraid to try it for fear of breaking it. Any suggestions?

    Kim McCauley -

    There is no front or rear panel. There’s no sign of any seam whatsoever. The front and back are one solid piece of plastic.

    Proud Liberal -

  2. GfNZgZXTDvoLusXy
    GfNZgZXTDvoLusXy
    anLmRNrUoNQWBKUY

    • Führe vorsichtig ein Plastic Opening Tool am oberen Ende des Nexus 7 zwischen Vorder- und Rückseite ein.

    • Führe das Opening Tool am oberen Ende entlang, um die beiden Hälften des Nexus 7 zu trennen.

    My Nexus 7 looks nothing like this. These instructions are horrible as they do not work.

    Andy Garcia -

    someone help? my nexus looks completely different

    Music Raider -

  3. WwtYTYZ2CAceGXng
    WwtYTYZ2CAceGXng
    53wRQHjFW23GmNT1
    jYpEiy4UnehyKoDM

    • Führe an der Seite in der Nähe des Power Buttons vorsichtig ein Plastic Opening Tool zwischen Vorder- und Rückseite ein. Löse so einige Klammern entlang der rechten Seite.

  4. XyWkGPoQkp2N3sRo
    XyWkGPoQkp2N3sRo
    kywiZcRePllXllUk
    cFluDH2DnBlOygwN

    • Führe vorsichtig ein Plastic Opening Tool an der linken Seite des Nexus 7 zwischen Vorder- und Rückseite entlang, so wie in früheren Schritten beschrieben.

  5. YMtnflWPHAXsTTiZ
    YMtnflWPHAXsTTiZ
    2YmqXWNHKoB6qB1x

    • Nun kannst du – vorsichtig – Vorder- und Rückseite trennen.

  6. KPSU3Bq55IZSRIyl
    KPSU3Bq55IZSRIyl
    LvEv41KaObLIDhVE

    • Benutze die Spitze eines Spudgers. Wackle abwechselnd erst an einer, dann an der anderen Seite des Akkukabels, um es senkrecht aus seinem Sockel zu ziehen.

    I have the newer version of Nexus and the battery connection inside is different from pictured here. I can't seem to get any part of the connector backed out. Any further details about how to accomplish this step?

    indianowen31 -

    After my post I tried it again, and realized the connector comes straight UP, not OUT. Once I went this direction, the process was simple.

    indianowen31 -

    I followed this, everything worked fine. Even though the battery is now charging, the OS doesn't recognise when the USB cable is connected to a wall socket or a PC. The battery icon when the tablet is shut down shows charging so it works, but the OS in itself doesn't seem to know about it...any ideas?

    /D

    Daniel Zakrisson -

    Thanks for your guide. It makes the process very straightforward. Easier than I was expecting.

    Les Gordon -

    Superb easy to follow guide. Thanks greatly, the nexus 7 lives on ! Just need to patiently wait for it charging now !

    stuart -

    Yes, this is a really helpful guide. I wouldn't have had a clue without it, but it all turned out to be very simple. Thanks a lot!

    Ian Gibson -

    I managed to break one of the two small golden pins to the right of the battery cable (obscured by the tool in the picture above).

    Is this terminal (sorry for the pun)?

    I tried re-assembling (without screwing the assembly back to the bezel) and the display doesn't work.

    gravelld -

    Step 6 could be much clearer. I thought it meant to pry the connector upward, away from the surface. When I did this, all the pins broke off. The correct procedure would appear to be to slide the connector along the surface toward the wire side and battery, leaving the pins at parallel to the surface.

    Unfortunately I don't think my Nexus 7 is salveagable now.

    Warren Harris -

    Watching a YouTube video helped. Dislodge the battery first, then pull the battery away from the connector and the connector will become dislodged quite easily.

    d_ratner_1999 -

  7. cJVGaSaNN3u1eIUE

    • Löse den Aufkleber ab, der den ZIF Verbinder an Lautstärkeregler und Einschalttaste bedeckt.

  8. ForvFKNHSykqGxKm
    ForvFKNHSykqGxKm
    fBXZlUJfZmGKJtPt

    • Kippe den Sicherungsbügel am ZIF Verbinder am Flachbandkabel von Lautstärkeregler und Einschalttaste mit der Spudgerspitze vorsichtig hoch.

    • Achte darauf, dass du nur am Sicherungsbügel arbeitest, nicht am Sockel selbst.

    • Ziehe das Flachbandkabel von Lautstärkeregler und Einschalttaste mit der Spudgerspitze gerade aus seinem Sockel.

    Looking to purchase a power & volume cable strip?

    Mike Patrick -

  9. iWH6OVMrYoPTwJ4w
    iWH6OVMrYoPTwJ4w
    xuKmY3JFCy1NR3dW

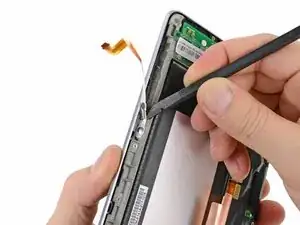

    • Setze das flache Ende des Spudgers zwischen dem Kabel zur Einschalttaste und Lautstärkeregelung und dem Metallrahmen ein.

    • Schiebe den Spudger vorsichtig am Kabel entlang und löse so die Tasten ab.

  10. ANlelKfaGR2B6Zyt

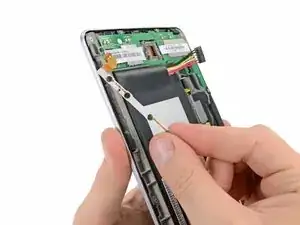

    • Entferne das Kabel zur Einschalttaste und Lautstärkeregelung vom Nexus 7.

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
