Nexus 9 Rear Facing Camera Replacement

Geschrieben von: Sergio Vargas
  • Kommentare: 14
Nexus 9 Rear Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to replace the rear-facing camera on your Nexus 9.

  1. 6diQas4YFRGUSEWr
    6diQas4YFRGUSEWr
    6JvysDdeWGUAUcmm
    DETxwdcaeI6DIOou

    • With your fingers, carefully pry off the back plastic casing. Starting at the corners is usually the easiest.

    • The rear-facing camera seems to fit a little too snugly in its compartment on the rear case; so make sure that it stays connected to the motherboard.

    Just removed the cover. On mine, there is a piece of double sided tape, 2"x1", bottom middle, sticking the back cover to the battery. The battery pack's black skin ripped as I pulled the cover off. I was able to peel the skin from the tape and reposition on the batteries. Don't think this black skin is nothing more then a way to print branding and other texts onto the batteries.

    Sccoaire -

    Same here. Ridiculous!

    rexograph143 -

    I can confirm that the camera does fit very snugly into back cover.

    Start by prying off the cover from the end opposite the camera. When you get near the camera lens, press the lens gently into the body as you continue to release the cover.

    Graham Taylor -

    Careful pressing that lens into the body, though, because the lens is actually attached to the back cover, not to the camera module (stupid, frankly). It is def a good idea to work from the other corner around, though.

    Drew Rushmer -

  2. GyyBm6UTcLOLSqUq
    GyyBm6UTcLOLSqUq
    xCw5FK6W3PRIl5VY

    • Carefully peel up the copper shielding with your fingers.

    • Before fully removing the copper shielding, make sure that the blue antenna cable is out of the way of the copper tab.

    On mine, the copper shield is smaller then shown in this picture. It does not cover the battery connector, hence you don't need to remove the copper shield to remove the battery.

    Sccoaire -

    Ditto. My theory is that ours were later model Nexus 9s produced after this ifixit featured this product!

    rexograph143 -

    Sur certains modèles, la feuille de cuivre est sous la batterie et n'a pas besoin d'être enlevé.

    Rohanec -

  3. Xlc5NNQ3hfirvWsW

    • Using the spudger tool, carefully remove the bottom of the battery from it's location below the logic boards.

    • The battery is attached to the motherboard with some adhesive, so you may need an iOpener to loosen up the adhesive. Check out the iOpener guide for info on how to do it.

    • Do not pull the battery from the tablet yet, as it is still connected to the motherboard.

    On my tablet, it was not glue, but double stick tape along the both long sides. I used the iOpener, which I laid along the sides. (My iOpener had printed on it, “Wait 10 minutes before reheating again.”) I slowly peeled the tape off of the battery. The copper shielding was below the battery. I carefully peeled the tape up in hopes of reusing it.

    Gregg Ferry -

    On mine, the battery was held by two strips of double stick tape. My iOpener helped. (my iOpener had written on it, “Wait 10 minutes before reheating again. ) As I lifted the battery, I peeled the tape away from it. Then I peeled up the tape in hopes of reusing it.

    Gregg Ferry -

  4. ISPRVaecWTilqPOV

    • Now remove the metal clip covering the battery's connector cable located above the top left of the battery with the spudger.

    • After the metal clip is wiggled free, the battery's connector cable can be easily removed by just gently tugging it free.

    Use spudger to apply light pressure to right (as seen in picture above) side of clip near the board. Right side of clip will spring left and up. Use tweezers to lift clip upwards and to the right. It will come right out.

    Darryl Whitmore -

    White battery connector lifts straight up to disconnect.

    Darryl Whitmore -

  5. M2wPUCbhwZw3k3E3

    • The battery should now lift free of the tablet.

    Again, on my Nexus 9, were I trying to actually remove the battery, it is double side taped to the frame. The battery’s casing would be further torn to shreds, should I try to remove it.

    Good thing I’m just trying out a XDA repair for the “white/pixellated screen-150 decibel scream issue” that seems to be plaguing N9s nowadays, which involves cleaning the battery contacts. I may just have to replace it now, should it’s performance get any worse.

    (It’s almost as if HTC wants the battery to be seriously damaged if replacement is attempted.)

    rexograph143 -

    It isn't necessary to remove the battery from device to replace the mobo. Ensure you've disconnected the power cable from the MoBo and you will be fine.

    Arcade -

  6. Og5Q2IlV4jJP4NGS
    Og5Q2IlV4jJP4NGS
    Co4yFr2nYw2NVwSF

    • This step is not necessary if you have already removed the battery.

    • Carefully peel up the copper shielding with your fingers.

    • Before fully removing the copper shielding, make sure that the blue antenna cable is out of the way of the copper tab.

  7. KHSphA5ARPml5YW1

    • Unscrew the three 3 mm Torx T5 screws on the antenna board.

    • This step and the next show the battery removed, but it is not necessary to remove it if you are only replacing the antenna board.

  8. AflWPwqDkLEhDQKC

    • Use your fingers or a pair of tweezers to disconnect the blue antenna cable from the motherboard.

    • When reinstalling the antenna, be sure to clean it with a degreaser such as windex or isopropyl alcohol. The oils on your fingers have the potential to create wireless interference.

    • The antenna board should now lift free of the motherboard.

    If you happen to own a Nexus 9 LTE model, I strongly suggest that you take a photo of the exposed back (i.e. with the rear cover removed) and all wires still in place. You will later find that the LTE model differs in terms of daughter boards used, apparent connection points, number of wires used, and most importantly the way the wires even connect various components. At that point, you will also find that guides that cover the WiFi-only model are useless, for said reasons. You will additionally find that the only guides that are commonly accessible cover only that model. Lastly, before you replace any of the boards, I also strongly encourage you to compare the photo you will have taken to any replacements, to ascertain that they are compatible (to get you started: you will note a connection point on the daughter board that houses the micro-USB connector present in the LTE edition and absent (although the board does contain the solder points forming a circle) in the WiFi edition).

    poser1999 -

  9. 2Ul6snJvHRlK4Vuk
    2Ul6snJvHRlK4Vuk
    ApROhSf2tTHHiuWB

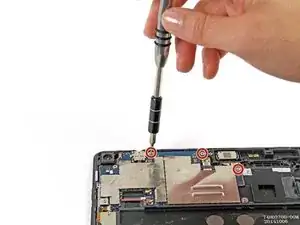

    • Remove the three 3mm T5 Torx screws.

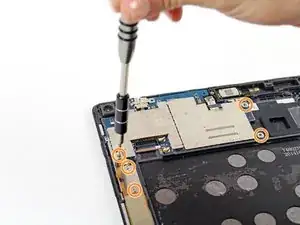

    • Remove the five 2 mm Phillips #000 screws.

  10. NJHLRe1112KwNBjj
    NJHLRe1112KwNBjj
    NLFiPsSeSgTF3hmM

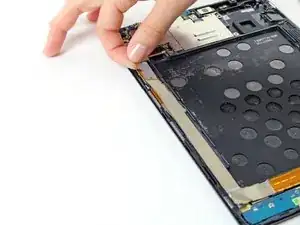

    • Using your fingers, pull up on ribbon connector to expose another ribbon connector below.

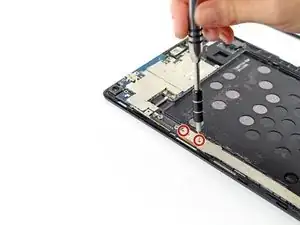

    • Remove the two 2 mm Phillips #000 screws on top of the second ribbon connector.

    • Pull up the ribbon connector with your fingers.

  11. cN31uHs4YG2fHQHr
    cN31uHs4YG2fHQHr
    WmUHCHdPxBCbGxXC

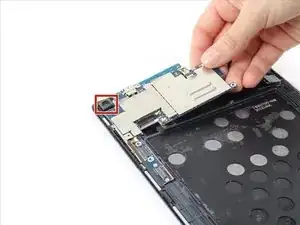

    • With both ribbons out of the way, you can now lift the motherboard off of the tablet with your hand.

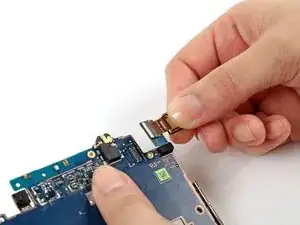

    • The camera is attached to the back side of the motherboard via a ribbon cable.

    • Use a spudger or your fingernail to disconnect the camera from the motherboard.

    • There is a small board that comes off easily with the camera. It is attached to the camera with a ZIF connector, and will need to be swapped over to the replacement camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
