Nexus One Battery Housing Replacement

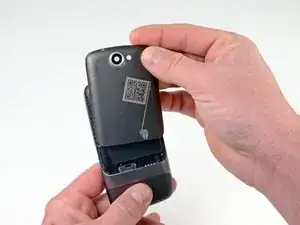

Using two fingers, push up on the rear cover.

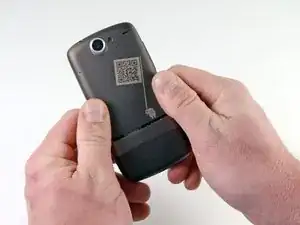

The rear cover slides up and off.

Using the plastic opening tools, pry the left bottom corner of the battery up.

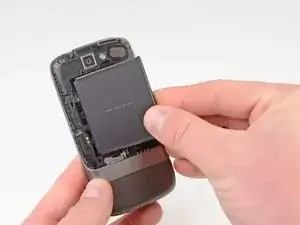

Pull the battery up and out.

Remove the two Torx T5 screws.

Remove the one Philips #00 screw.

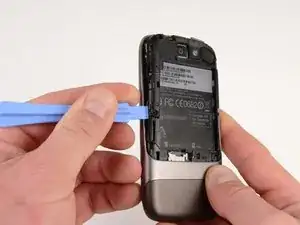

Using the plastic opening tool, pry up the battery housing upwards.

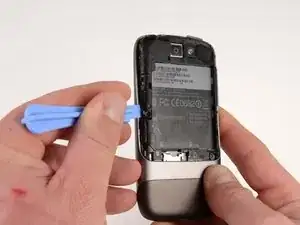

Push pry tool down, undoing the plastic tab.

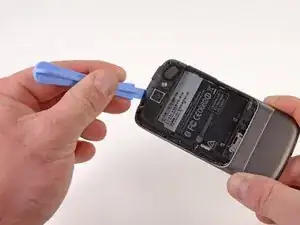

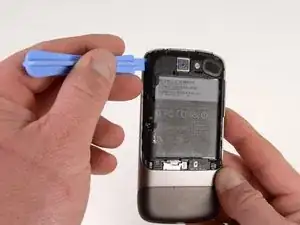

Pry the upper left tab open on the battery housing.

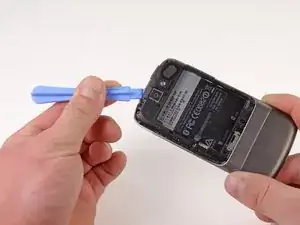

Pry the top tab of the battery housing.

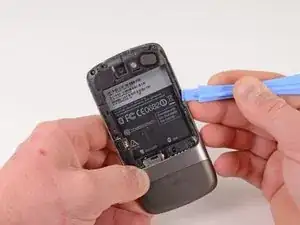

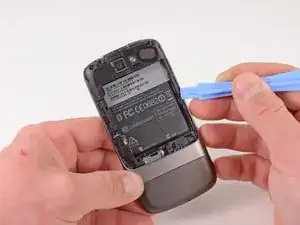

Pry the right side tab of the battery housing.

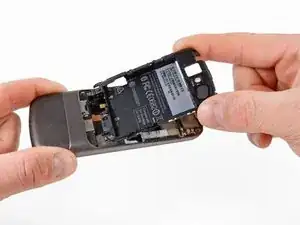

Pull up on the battery housing.

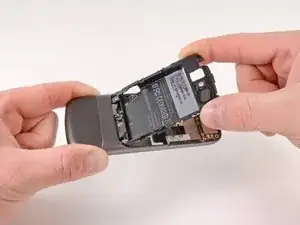

Slide the battery housing out to remove it.
