Einleitung

  1. uLlMFMhZqIIv3caX
    uLlMFMhZqIIv3caX
    VvvWIQV4IhighMT5
    • Using two fingers, push up on the rear cover.

  2. W1WIrx2VbRpWGxKX
    • The rear cover slides up and off.

  3. DXcrcy1T6vY3HEWU
    • Using the plastic opening tools, pry the left bottom corner of the battery up.

  4. oHgCrbeRKYNsKGyW
    • Pull the battery up and out.

  5. LEk4TtIlJpNBnkLG
    • Remove the two Torx T5 screws.

    • Remove the one Philips #00 screw.

    #0 Phillis screw

    skuhry -

  6. AVHTJRTTmHURrqWr
    AVHTJRTTmHURrqWr
    DFrOaUx4hjItP3UE
    • Using the plastic opening tool, pry up the battery housing upwards.

    • Push pry tool down, undoing the plastic tab.

  7. fBve6wgcClcIKG5q
    fBve6wgcClcIKG5q
    d6FAlJcMTtpDLdHk
    • Pry the upper left tab open on the battery housing.

  8. ZYjsMVCidphXMyax
    ZYjsMVCidphXMyax
    XHJ5vDEoxHwmFQDR
    • Pry the top tab of the battery housing.

  9. IqJXdHPhdvbQoDe2
    IqJXdHPhdvbQoDe2
    EP3MoAITbalwK6PZ
    • Pry the right side tab of the battery housing.

  10. crX1ZluSiKZIiaWi
    crX1ZluSiKZIiaWi
    RZnGp4KEQgTZDiAU
    • Pull up on the battery housing.

    • Slide the battery housing out to remove it.

  11. 5xGcnDCDhsoYGLVw
    5xGcnDCDhsoYGLVw
    VbaVsA1VJarL2JCb
    t3FRGBGBDtumAupv

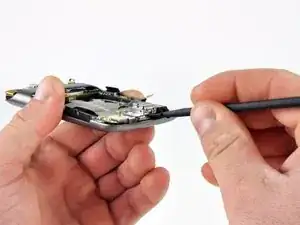

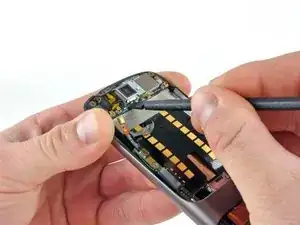

    • Place the spudger under the metal cover and pry upwards. (shoot bottom side first with tabbed clip)

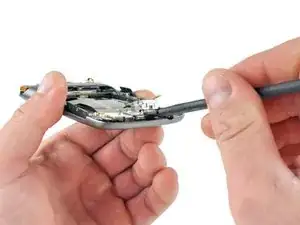

    • Swap the spudger to the other side of the cover base. Pry upwards. (fix?)

    • Grasp the camera module and pull up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
