Nexus Q NFC Antenna Replacement

Geschrieben von: Alex Thomas
  • Kommentare: 1
Nexus Q NFC Antenna Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

This is a relatively easy repair to make to your Q. Follow the prerequisite for removing the inner dome daughterboard to get started.

  1. JVOxILeWfJ1VclIQ

    • Squeeze and pull to pop the cap off of the Nexus Q.

  2. IP15HxMZTcIT1q2k
    IP15HxMZTcIT1q2k
    XcwUlHPFnvj5QvHc

    • Disconnect the taoglas Wi-Fi Dual Band Antenna by prying with a spudger.

    • Once the antenna is disconnected, simply pull it off the outside of the inner dome.

    Why remove the anntenna? what did it do to you?

    rudyt83 -

  3. BVNeCPZTuCtTymNN

    • Undo the ZIF connector by prying with a spudger.

  4. INFPnnf3lnHAXiyh

    • Use a T10 Torx screwdriver to remove the four 1.3 mm screws holding the inner dome in place.

  5. YWn6l2WAkN21FhZv

    • Use a T6 Torx screwdriver to undo the three 0.8 mm screws holding the inner dome daughterboard in place.

  6. LGZXQKgUFKUpZACE

    • Use a spudger to disconnect the daughterboard from the ZIF connector.

  7. Xx5tmuqnkpUSFBRi
    Xx5tmuqnkpUSFBRi
    wRqypLYffnALiGiD

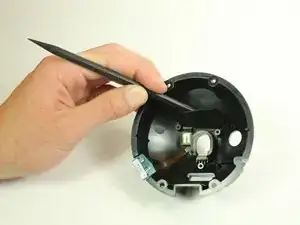

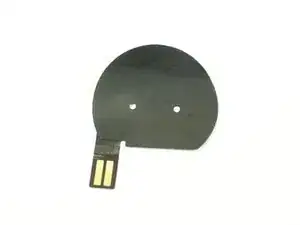

    • Use a spudger to pry out the NFC antenna.

    • The antenna has two layers; be careful not to pry the two layers apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
