Nexus S Motherboard Replacement

Geschrieben von: Walter Galan
  • Kommentare: 0
Nexus S Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Internal prereq when SIM board is out.

  1. wf6sXReAxPl5utWB

    • Insert the flat edge of a plastic opening tool underneath the headphone jack connector and pry upwards.

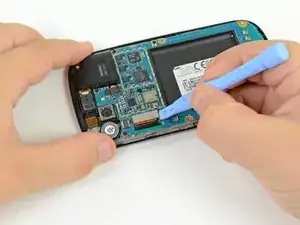

  2. volsggW5sqJEDTmn

    • Repeat the same procedure as the previous step to disconnect the digitizer connector.

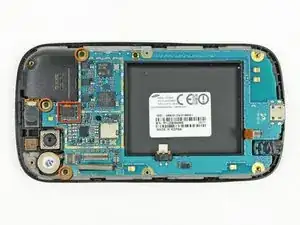

  3. WNhIeCTLryLhpKUA

    • Use a plastic opening tool to pry the speaker connector (highlighted in red) from its socket on the motherboard.

    • Remove the three Phillips screws securing the motherboard to the inner assembly.

  4. ZJIRkObC42iAeodt

    • Lift and remove the motherboard from the Nexus S, minding any cables that may get caught.

Abschluss

To reassemble your device, follow these instructions in reverse order.
